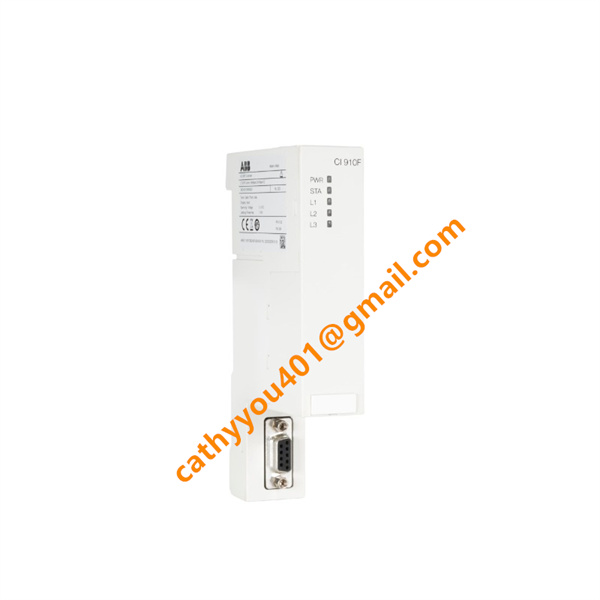

CI910F 3BDH001005R0001 ABB DCS communication module

• Brand
  ABB
• Model
  CI910F
• Order Number
  3BDH001005R0001
• Product Name
  Interface Module
• Country of Origin
  Germany
• HS Code
  85371011
• Dimensions
  54 mm* 68 mm*76 mm (H *W*D)
• Weight
  0.15 kg (0.33 lbs)
• Operating Temperature
  -20 °C to +70 °C
• Storage Temperature
  -40 °C to +85 °C
• Warranty
  12 MONTH
• Product Status
  New and original

ABB CI910F 3BDH001005R0001 Product Introduction

Technical Specifications

1.Communication Interface: 3 * 9-pin D-Sub female connectors (CAN bus channels)

2.Protocol Support: ABB CAN bus protocol (CAN 2.0A/B compliant)

3.Baud Rate: Up to 1 Mbps (configurable via Freelance software)

4.Network Capacity: Supports up to 32 nodes per CAN channel; compatible with Freelance rack-based I/O modules

5.System Compatibility: AC900F controllers (PM901F/PM902F); requires Freelance software v2013 SP1 RU04, v2016 SP1 RU03 or later

6.Power Supply: 24 V DC (19.2-32.5 V DC range); ≤1.5 W power consumption

7.Humidity: 5-95% (non‑condensing)

8.Protection Class: IP20 (dust-protected, touch‑safe)

9.Pollution Degree: 2; G3 severity level (ISA-S71.04)

10.Diagnostics: LED indicators for power, communication status, and fault detection

Product Advantages

1.Simplified System Architecture: Eliminates third-party gateways, reducing hardware complexity, wiring effort, and integration costs.

2.Scalable Performance: Supports up to 300 I/O signals, making it ideal for small‑to‑medium
3.scale automation projects across industries.

4.High Reliability: Redundant communication capability (via three channels) and industrial‑grade components minimize downtime and enhance system availability.

5.Easy Configuration & Maintenance: Fully configurable via Freelance engineering software; hot
6.swap compatible for module replacement without system shutdown.

7.Long-Term Compatibility: Backward-compatible with AC900F controllers and Freelance software updates, protecting investment in existing automation infrastructure.

Key Features

1.Three Independent CAN Channels: Enables redundant or segmented CAN bus networks for enhanced system reliability and flexibility.

2.Native Freelance Integration: Seamlessly connects to AC900F controller coupler bus slots, with no additional gateways required.

3.High-Speed Communication: Supports up to 1 Mbps baud rate for real-time data exchange in time-critical automation processes.

4.Robust Industrial Design: Wide temperature tolerance, IP20 protection, and vibration‑resistant housing ensure stable operation in factory environments .

5.Diagnostic LED Indicators: Provides immediate visual feedback on power status, communication activity, and fault conditions for simplified troubleshooting.

6.Compact Form Factor: Space-saving single-slot design optimizes cabinet layout and reduces installation footprint.

•
