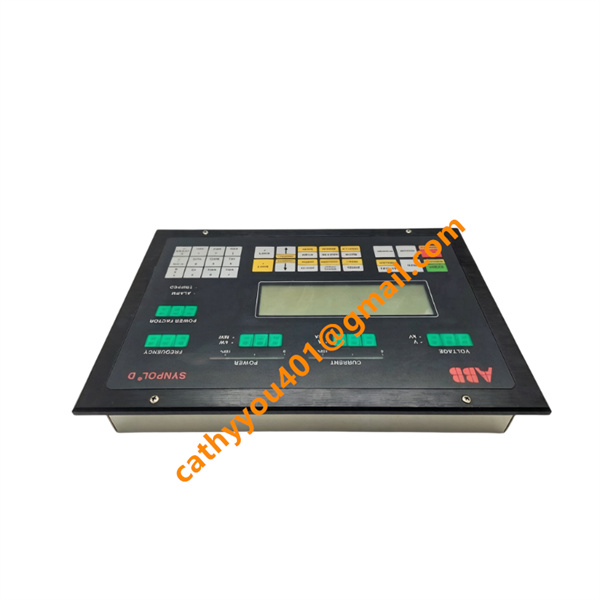

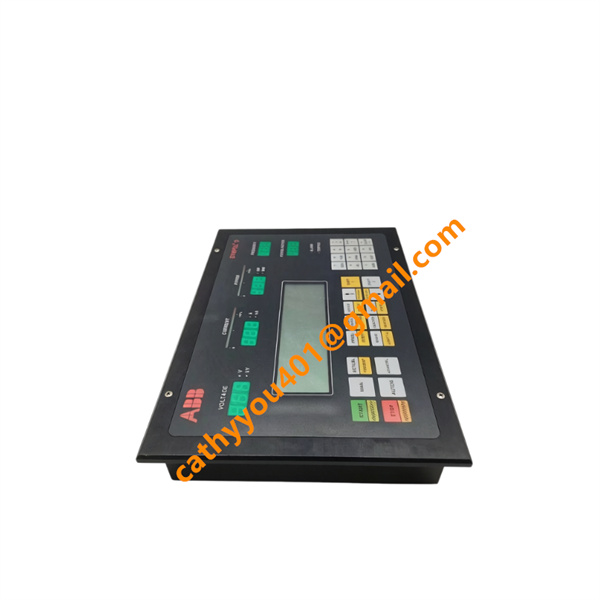

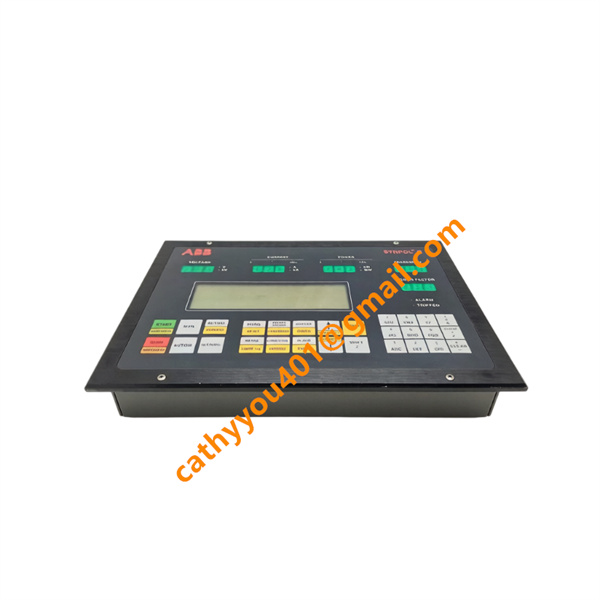

ABB CMA130 3DDE300410 Display Front Panel

Technical Parameters

Relative Humidity: 5%–95% RH (non-condensing)

Power Supply: 24 V DC (18–32 V DC wide range)

Power Consumption: ≤ 3 W

Protection Rating: Front panel IP65; Rear side IP20

Display: Monochrome LCD (Winstar WG24064A), 240x64 pixel resolution, high-brightness LED backlight

Keypad: 16 industrial-grade silicone keys (4 function keys, 10 numeric keys, confirm/cancel keys), mechanical lifespan ≥ 1,000,000 operations

Indicator Lights: 6 sets of multi-color LED indicators (power, operation, communication, alarm 1, alarm 2, backup) – red/green/yellow

Alarm Function: Visual LCD alarm display + audible buzzer alarm (≥85 dB, manual mute capable)

Communication Interfaces: RS-232, RS-485; Supports Modbus RTU and ABB proprietary communication protocols

Isolation: 2500 V AC signal-to-system isolation

Certifications: CE, UL 508, ATEX, IECEx

Mounting: Front-panel embedded mounting (control cabinet/console)

Material: High-strength ABS engineering plastic (scratch-resistant, oil-resistant)

Product Features

Industrial-Grade Durability: Rugged construction with IP65 front protection to resist dust, water, oil, and mechanical impact.

High-Visibility Display: Crisp 240x64 LCD with LED backlight for clear readability in low-light and high-ambient industrial environments.

Long-Life Keypad: Silicone rubber keys with high mechanical endurance for repetitive industrial operation.

Multi-Mode Status Feedback: Integrated LED indicators and audible/visual alarms for instant system status monitoring.

Versatile Communication: Dual serial ports (RS-232/RS-485) supporting standard and proprietary protocols for seamless DCS integration.

Electromagnetic Compatibility: Superior EMC performance with high isolation and noise rejection for stable operation in electrically harsh environments.

User-Friendly Interface: Intuitive keypad-LCD layout for simplified operation, reducing operator training time.

Compact & Space-Saving: Slim profile design optimized for standard control cabinet panel mounting.

Wide Environmental Tolerance: Operates reliably across extended temperature and humidity ranges.

Easy Installation & Maintenance: Front-mounted design for straightforward installation and minimal maintenance.

Core Functions

Real-Time Process Visualization: Displays critical process variables, system parameters, and I/O status in real time.

Parameter Configuration & Setting: Enables on-site adjustment of control setpoints, thresholds, and system configurations.

Command Execution: Issues manual control commands, start/stop signals, and operational instructions to the control system.

Fault Diagnosis & Alarm Management: Shows real-time fault codes, alarm logs, and diagnostic data for rapid troubleshooting.

System Monitoring: Tracks communication status, module health, and overall control system performance.

Data Access & Review: Allows review of historical process data, event logs, and sequence-of-events (SOE) records.

Operator Interface: Serves as the primary local HMI for direct interaction between plant operators and the DCS.

Typical Application Cases

Power Generation: Boiler control, turbine governing, and auxiliary system monitoring in thermal and hydropower plants.

Oil & Gas Refining: Process unit control, pipeline monitoring, and distillation column operation interfaces.

Chemical & Petrochemical: Batch process control, reactor monitoring, and hazardous area system operation.

Metallurgy & Steel: Furnace temperature control, rolling mill automation, and production line monitoring.

Water & Wastewater: Treatment plant process control, pump station operation, and SCADA system interfacing.

Marine & Offshore: Shipboard automation, offshore platform control systems, and vessel engine management.

Manufacturing: Automated production lines, material handling systems, and discrete manufacturing control.

Key Advantages

Proven Industrial Reliability: ABB-engineered for continuous operation in demanding industrial environments with high MTBF.

Seamless System Compatibility: Fully integrated with ABB Synpol D, AC 800M, and Symphony Plus control systems.

Enhanced Operational Efficiency: Intuitive interface reduces human error and speeds up process response times.

Superior Environmental Resistance: IP65 front and wide temperature/humidity tolerance for harsh plant conditions.

Cost-Effective Integration: Minimal setup, easy maintenance, and long service life reduce total cost of ownership.

Regulatory Compliance: Certified to international safety and EMC standards for global industrial deployment.

Flexible Installation: Front-panel embedded design fits standard control consoles and cabinet layouts.

Future-Proof Design: Supports system upgrades and communication protocol updates for long-term usability.
