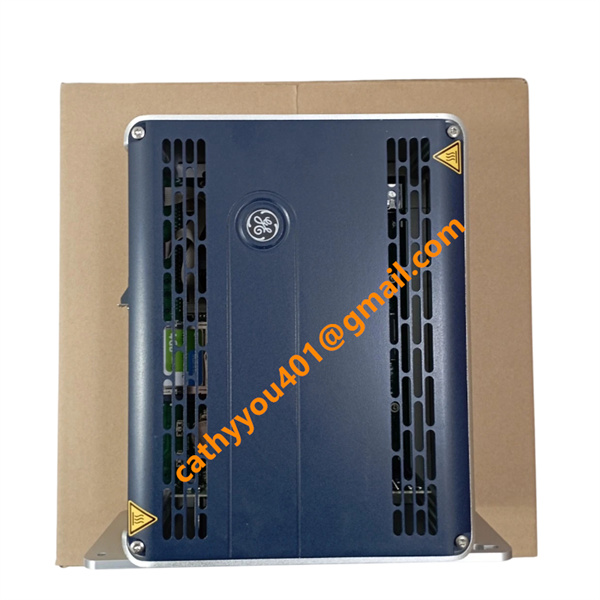

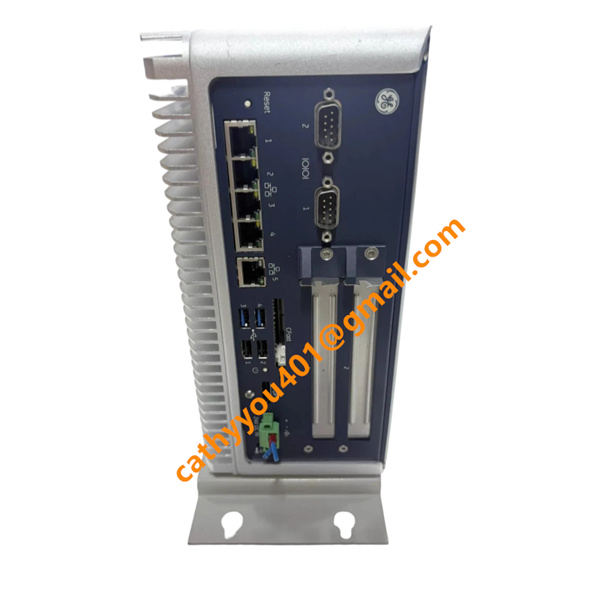

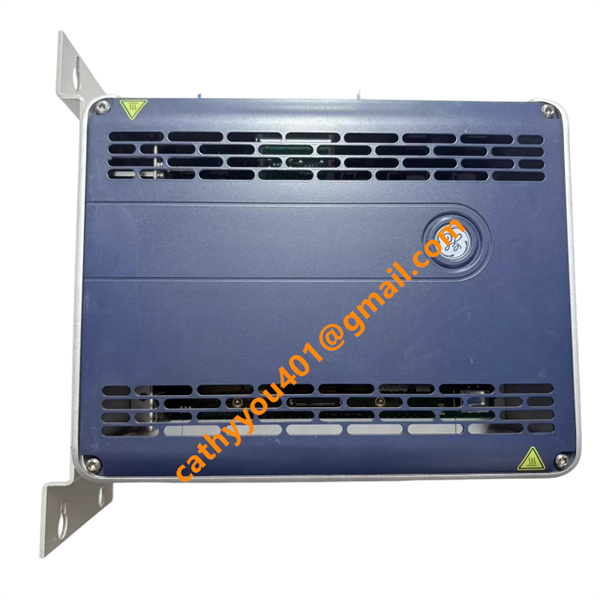

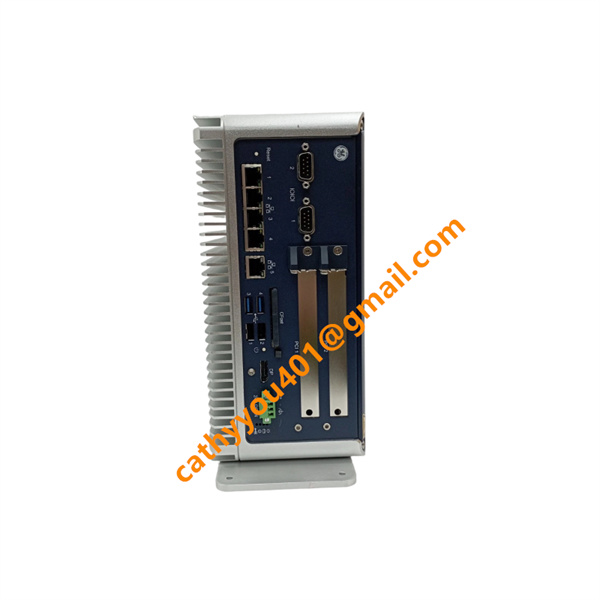

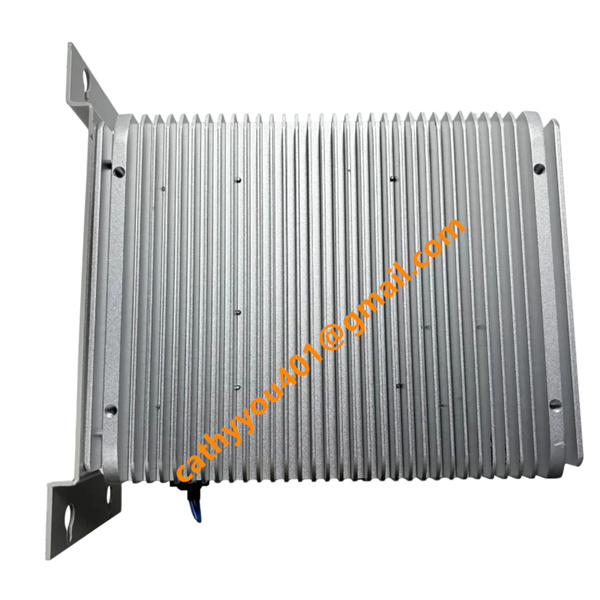

04220FL11232A GE DCS I/O/controller module

• Brand
  General Electric
• Model
  04220FL11232A
• Product Name
  I/O/controller module
• Weight
  2.0 kg
• Dimensions
  220mm(W)×160mm(D)×60mm(H)
• Original
  United States
• Customs HS
  85371090
• Operating temperature
  -20°C to +60°C
• Storage temperature
  -40°C to +85°C
• Power Supply
  24 V DC
• Warranty
  12 month
• Product Status
  new and original

GE 04220FL11232A Product Introduction & Technical Specifications

Input Specifications

Power Supply: 24 V DC (18–32 V DC range)

Signal Inputs: Configurable digital/analog inputs for temperature, pressure, valve position, and switch status

Isolation: Optoelectronic/magnetic isolation between channels and channel-to-ground

Communication Inputs: GE proprietary high-speed serial backplane bus (for Mark VIe), Ethernet, RS-232, RS-485

Output Specifications

Control Outputs: Configurable digital/analog outputs for actuators, valves, and indicating devices

Communication Outputs: Ethernet TCP/IP, Modbus TCP, PROFINET, PROFIBUS DP

Response Time: Sub-millisecond I/O response for critical control loops

Hot-Swap Capability: Supports hot-swap installation in Mark VIe I/O racks

Functions

Signal Conditioning: Precision conversion and conditioning of field analog/digital signals

Multi-Loop Control: Simultaneous execution of multiple closed-loop control algorithms

Turbine Control: Specialized functions for gas/steam turbine governing, sequencing, and protection

Data Acquisition: Real-time data logging, trending, and historical data storage

Redundancy Support: Compatible with system-level redundancy for high availability

Diagnostics: Comprehensive self-diagnostics, fault detection, and status indication

Product Advantages

High Reliability: Industrial-grade design with MTBF > 100,000 hours for continuous operation

Critical Application Focus: Optimized for turbine control and power generation systems

Fast Response: Sub-millisecond I/O and control loop performance for time-critical processes

Seamless Integration: Native compatibility with GE Mark VIe and RXI series ecosystems

Signal Integrity: High-precision isolation and filtering ensuring accurate data acquisition

Flexible Configuration: Software-configurable I/O to adapt to diverse field requirements

Application Cases

Power Generation: Gas turbine, steam turbine, and combined-cycle plant control systems

Oil & Gas: Refinery process control, pipeline monitoring, and compressor station automation

Industrial Manufacturing: High-performance automation lines, robotics, and motion control

Data Centers: Backup power generation and UPS system control

Marine: Shipboard power generation and propulsion control systems

Chemical Processing: Critical process monitoring and safety instrumented systems

Features

Processor: PowerPC 604e 1 GHz high-performance CPU

Memory: 512 MB RAM, 1 GB Flash memory for program and data storage

I/O Capacity: Up to 256 I/O points with expandable local/remote I/O modules

Protection: IP20 standard, industrial-grade EMC compliance (IEC 61000-6-2/4)

Certifications: CE, UL, cUL, RoHS certified

Design: Rugged industrial construction with advanced thermal monitoring
