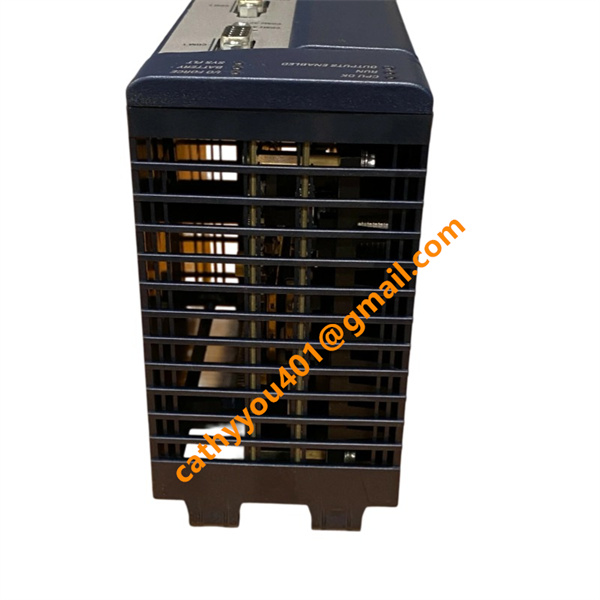

IC695CRU320 GE DCS CPU module NEW IN STOCK

• Brand
  General Electric (GE Fanuc / Emerson Automation)
• Model
  IC695CRU320
• Product Name
  PACSystems RX3i Redundancy Control CPU Module
• Weight
  1.0 kg
• Dimensions
  40 mm (W) x 100 mm (H) x 160 mm (D)
• Original
  United States
• Customs HS
  85371090
• Operating temperature
  0°C to 60°C
• Storage temperature
  -40°C to 85°C
• Warranty
  12 month

GE IC695CRU320 PACSystems RX3i Redundancy CPU Module Product Introduction

Input

Processor: 1.0 GHz Intel Celeron-M 32-bit RISC CPU

Memory: 64 MB battery-backed RAM, 64 MB non-volatile flash memory

Serial Communication: 2 isolated ports (1x RS-232, 1x RS-485)

Redundancy Sync: Supports dual IC695RMX128/228 synchronization links

Backplane Interface: PCI 2.2 high-speed backplane bus

Program Capacity: 512 program blocks (max 128 KB each)

Execution Speed: 0.047 ms per 1K Boolean instructions

Output

Redundancy Control: Seamless hot-standby failover (3.133 ms to 100 ms switchover)

Communication Protocols: Modbus RTU, SNP, Serial I/O, Ethernet (via expansion modules)

I/O Compatibility: Supports all RX3i and Series 90-30 I/O modules

Status Indicators: LED diagnostics for power, run, fault, sync, and redundancy status

Real-Time Clock: Integrated with ±2 seconds/day drift accuracy

Power Requirements

Power Source: Backplane-powered from RX3i chassis (5 VDC / 3.3 VDC)

Power Consumption: 1.0 A @ 3.3 VDC, 1.2 A @ 5 VDC (≤5 W total)

Memory Backup: Requires IC693ACC302 lithium battery (non-rechargeable)

Core Functions

Manages dual-CPU redundancy with real-time data synchronization

Executes complex control logic, PID loops, and sequence-of-events (SOE) processing

Provides seamless failover to backup controller on primary CPU fault

Supports multi-tasking and real-time operation for time-critical processes

Facilitates remote configuration, monitoring, and firmware updates

Ensures data integrity with battery-backed memory and non-volatile flash storage

Key Features

Dual Slot Design: Occupies two adjacent RX3i chassis slots

Isolated Serial Ports: Prevents ground loops and electrical interference

High MTBF: Long-term reliability for continuous industrial operation

Expandable Communication: Supports Ethernet, Modbus TCP, PROFINET via expansion modules

Shock & Vibration Resistance: Withstands 6 G vibration (10–2000 Hz) and 20 G shock

Certifications: CE, UL, cUL, ATEX, and IEC 61131-2 compliance

Hot-Swappable: Supports replacement under power without system shutdown

Application Cases

Oil & Gas Refineries: Controls critical processes including distillation, cracking, and pipeline systems

Power Generation: Manages turbine control, boiler safety, and grid synchronization in thermal and wind plants

Petrochemical Plants: Ensures continuous reactor control and emergency shutdown systems

Water & Wastewater: Controls treatment processes, pump stations, and distribution networks

Manufacturing Automation: Supports assembly lines, material handling, and robotics in automotive and aerospace

Chemical Processing: Monitors and controls hazardous material reactions and storage systems

Marine & Offshore: Provides reliable control for drilling rigs, vessel propulsion, and FPSO systems

Pharmaceutical Manufacturing: Ensures regulatory compliance and precise batch process control

Key Advantages

Hot Standby Redundancy: 2oo1 redundant architecture with bumpless transfer ≤100 ms

High-Speed Processing: 1 GHz CPU delivers fast logic execution for complex control tasks

Real-Time Synchronization: Dual sync links ensure complete program/data mirroring between CPUs

Industrial Durability: Rugged design for extreme temperatures, vibration, and EMI resistance

Flexible Integration: Compatible with RX3i and legacy Series 90-30 I/O systems

Advanced Diagnostics: Comprehensive self-testing and fault reporting for predictive maintenance

Software Compatibility: Supports PAC Machine Edition (PME) programming suite

•
