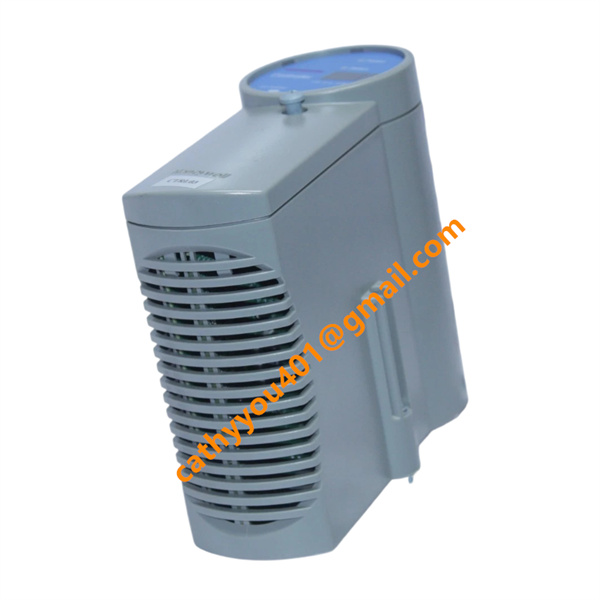

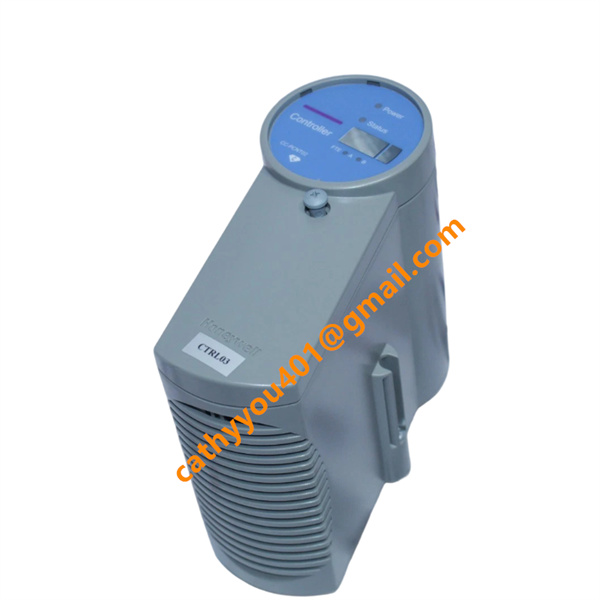

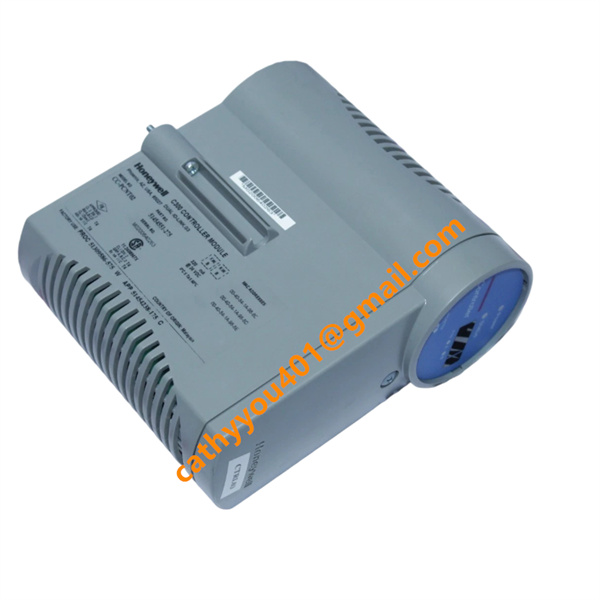

CC-PCNT02 Honeywell DCS controller module

• Brand
  Honeywell
• Model
  CC-PCNT02
• Product Name
  Controller Module
• Weight
  1.26 kg (2.78 lbs)
• Country of Origin
  United States
• Customs Code
  85371090
• Dimensions
  88mm(W) *225mm(H)*175mm(D)
• Operating temperature
  0°C to +60°C
• Storage temperature
  -40°C to +85°C
• Warranty
  12 MONTH
• Power Supply
  24 V DC, 320 mA
• Product Status
  NEW AND ORIGINAL

Technical Parameters

Power Consumption: Approx. 7.7 W

Processor: 32-bit high-performance RISC processor

Memory: 256 KB RAM, 1 MB Flash memory

Control Execution Environment: Deterministic CEE (Control Execution Environment) real-time kernel

I/O Compatibility: Supports Series C, Series 8 I/O modules, and C300 IOTA (Input Output Termination Assembly)

Communication Interfaces:

Universal Control Network (UCN)

2 x Ethernet ports (10/100 Mbps)

Supports ControlNet, Modbus RTU/TCP, Profibus DP

Input/Output Capability: Supports up to 256 analog and digital I/O points; configurable for discrete, analog, pulse, and counter signals

Control Functions:

PID, cascade, feed-forward, and logic control

Custom Algorithm Blocks (CABs) for user-defined control strategies

Sequence of events (SOE) recording

Redundant control execution (1+1 redundancy)

Protection Features:

Overvoltage, undervoltage, and reverse polarity protection

Over-temperature protection

ESD protection: ±8 kV (contact), ±15 kV (air discharge)

Isolation: 2500 V AC (channel-to-channel)

Certifications: CE, UL 508, ATEX, IECEx, SIL 2 capable

MTBF: > 120,000 hours

Mounting: DIN rail or chassis mounting (C300 controller rack)

Hot-Swappable: Yes (in redundant configurations)

Product Features

Deterministic Real-Time Control: Executes control algorithms with precise, predictable timing via the CEE engine, ensuring high process stability.

Modular & Scalable Design: Compact form factor with flexible I/O expansion to adapt to small and large-scale systems.

Redundancy Support: Fully supports 1+1 controller redundancy for zero downtime in critical processes.

Advanced Diagnostics: Built-in self-diagnostics and predictive maintenance alerts to minimize system outages.

High-Speed Communication: Multiple industrial network interfaces for seamless DCS, SCADA, and third-party system integration.

User-Configurable Control: Supports standard function blocks and Custom Algorithm Blocks (CABs) for tailored control logic.

Rugged Construction: Industrial-grade components for high vibration, temperature, and EMI resistance in harsh plant environments.

Low Power & High Efficiency: Energy-efficient operation with minimal heat generation.

Easy Maintenance: Hot-swappable design allows replacement without shutting down the process.

Core Functions

Process Control Execution: Runs continuous, batch, and discrete control strategies for industrial processes.

Data Acquisition & Processing: High-speed sampling and processing of analog and digital field signals.

Signal Conditioning: Isolation, filtering, and conversion of field I/O signals.

Communication Gateway: Facilitates data exchange between field devices, controllers, and upper-level systems.

Fault Detection & Protection: Real-time monitoring, alarm generation, and safe shutdown on fault conditions.

System Redundancy Management: Automatically switches to redundant modules to maintain control continuity.

Configuration & Programming: Supports offline/online programming via Honeywell Control Builder software.

Typical Application Cases

Oil & Gas: Refinery unit control, pipeline monitoring, and crude distillation process automation.

Chemical & Petrochemical: Batch reaction control, polymer production, and hazardous material processing.

Power Generation: Boiler control, turbine governing, and plant auxiliary system automation.

Pharmaceuticals: GMP-compliant process control for drug synthesis and sterile manufacturing.

Water & Wastewater: Treatment plant process control, SCADA integration, and pump station automation.

Metals & Mining: Smelting process control, material handling, and furnace temperature regulation.

Key Advantages

Industry-Proven Reliability: Field-tested in thousands of installations for long-term, uninterrupted operation.

Superior Control Performance: High-speed processing and deterministic execution for tight process loop control.

Future-Proof Integration: Compatible with legacy and modern Honeywell systems, supporting system migration.

Reduced Total Cost of Ownership: Low power use, minimal maintenance, and long service life lower operational costs.

Enhanced Safety: SIL 2 capable and certified for use in safety-related industrial applications.

Flexible Configuration: Easily adaptable to diverse process requirements with a wide range of I/O and communication options.

Seamless System Expansion: Scalable architecture supports system growth without major infrastructure changes.
