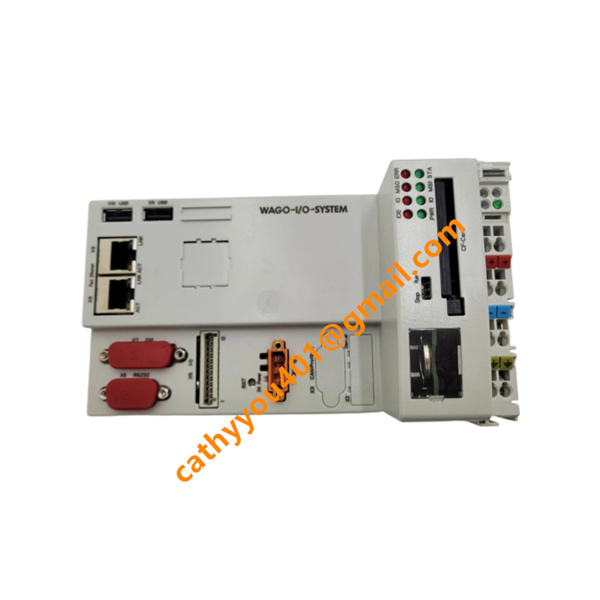

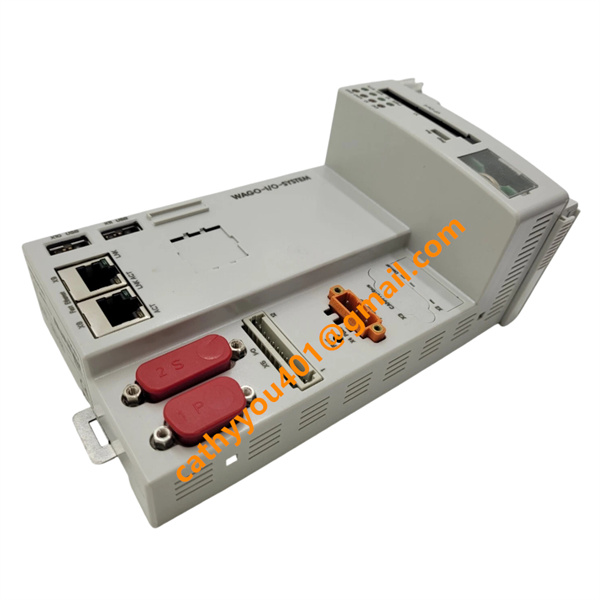

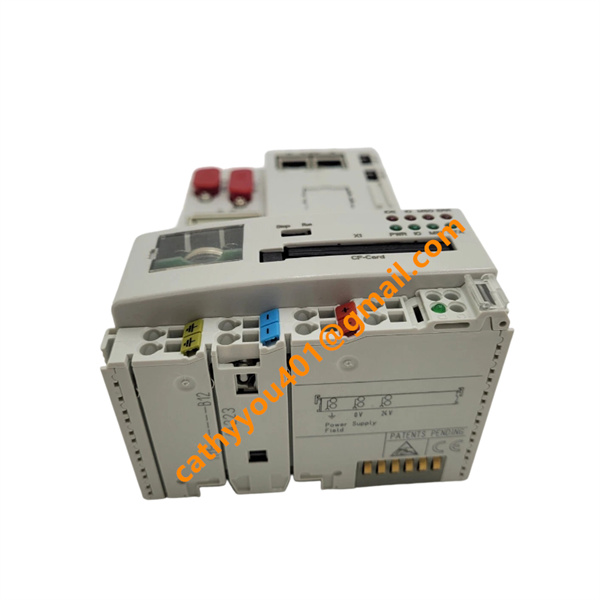

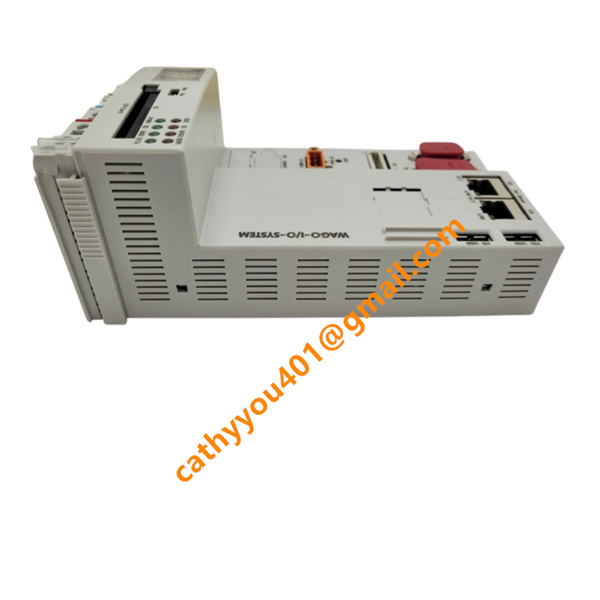

758-873 WAGO DCS Controller Module

• Brand
  WAGO
• Model
  758-873
• Product Name
  Industrial Ethernet Controller Module
• Weight
  200 g
• Dimensions
  87 mm (L) x 61 mm (W) x 25 mm (H)
• Original
  Germany
• Customs HS
  8538909990
• Operating temperature
  -25°C to +60°C
• Storage temperature
  -40°C to +85°C
• Warranty
  12 Month
• Humidity
  5% – 95% RH
• Product Status
  New and original

WAGO 758-873Product Introduction

Input Specifications

Supply Voltage: 24 V DC (nominal), tolerance -25% to +30%

Input Current (typical): 270 mA at 24 V DC nominal load

Input Channels: 16 digital input channels

Input Signal: 24 V DC digital signals

Input Current per Channel: Max. 10 mA

Output Specifications

Output Current: Up to 10 A total system output

Output Type: Supports digital and analog I/O module expansion

I/O Expansion Capacity: Up to 256 I/O points

Electrical Characteristics

Power Consumption: Typical 2.4 W

Protection Class: IP20

Connection Technology: CAGE CLAMP® spring-loaded connection system

Vibration Resistance: 4g (IEC 60068-2-6)

Shock Resistance: 15g (IEC 60068-2-27)

EMC Compliance: EN 61131-2, CE, UL, CSA certified

Functional Features

Processor: 32-bit ARM Cortex-M4 core, clock frequency 168 MHz

Memory: 512 KB RAM (program memory), 2 MB Flash (data memory)

Communication Interfaces: 2 x Ethernet ports, 1 x RS-232/RS-485 port

Supported Protocols: Ethernet TCP/IP, Modbus, CoDeSys, IEC 61131-3 programming languages

Mounting: DIN-35 rail mounting

Housing Material: Polycarbonate, Polyamide 6.6

Conformal Coating: Suitable for harsh industrial environments

Discontinued Status: Replaced by newer WAGO controller generations

Applications

1.Industrial Automation Systems

2.Machine Building and Control

3.Process Control and Monitoring

4.Building Automation Systems

5.Factory Automation and Production Lines

6.Material Handling Equipment

7.Water and Wastewater Treatment Systems

8.Renewable Energy Control Systems
