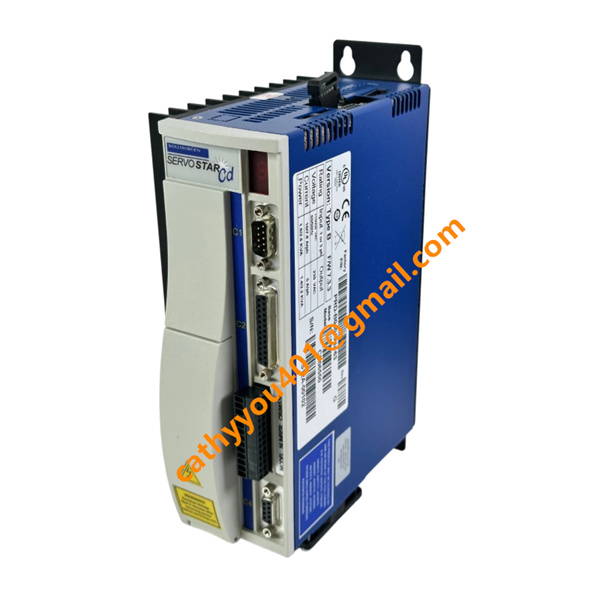

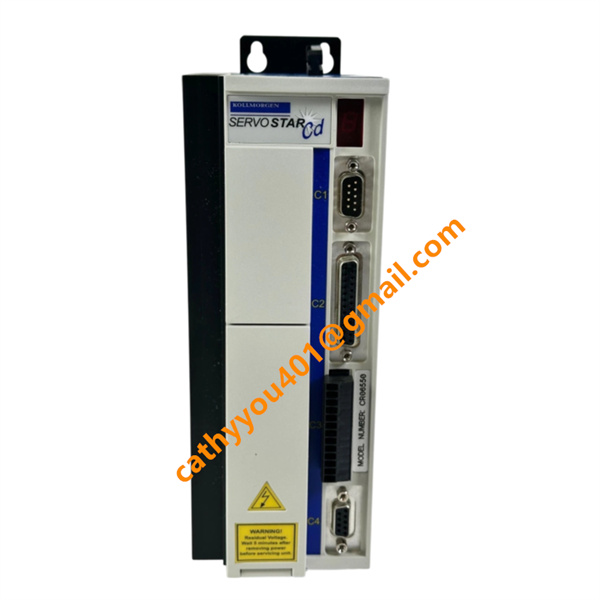

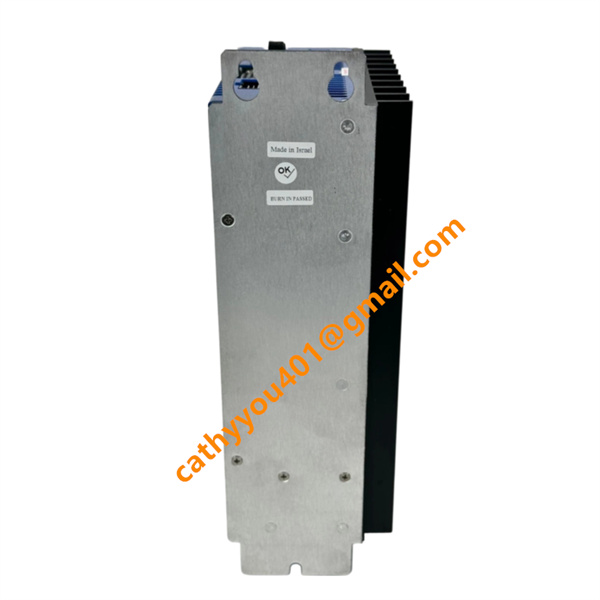

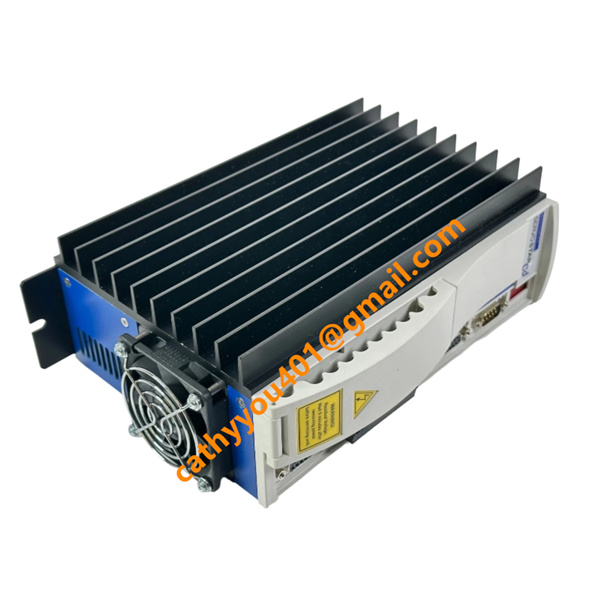

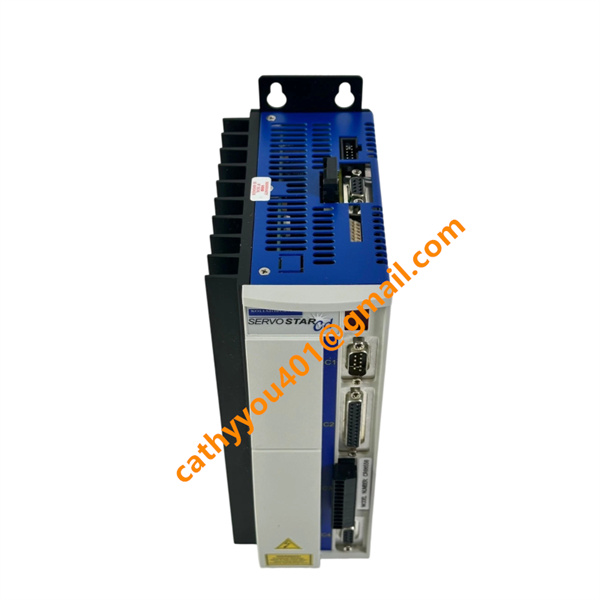

Kollmorgen PRD-B040AAIZ-63 CR06550 DCS servo drive

• Brand
  Kollmorgen
• Model
  PRD-B040AAIZ-63 CR06550
• Order Number
  CR06550
• Product Name
  PRD Series Servo Drive
• Country of Origin
  United States
• HS Code
  85044090
• Dimensions
  122 mm*65 mm*180 mm
• Weight
  1.3 kg
• Operating Temperature
  -35℃ to 80℃
• Storage temperature
  -45℃ to 90℃
• Warranty
  12 month
• Product Status
  new and original

Kollmorgen PRD-B040AAIZ-63 CR06550 Product Introduction and Technical Parameters

Power Supply

Input Power: Single-phase 110-240 VAC, 50/60 Hz

DC Bus Voltage: 160-400 VDC

Rated Continuous Current: 4 A

Peak Output Current: 12 A

Input & Output

Digital Inputs: Opto-isolated digital inputs for enable signal, emergency stop, limit switch, home sensor and fault reset

Digital Outputs: Isolated open-collector outputs for fault alarm and operating status feedback

Feedback Interface: Compatible with incremental encoders, resolvers and SSI encoders

Analog I/O: Analog input for speed or torque command; analog output for real-time monitoring signals

Product Advantages

Ultra-compact size saves cabinet installation space and wiring cost

Excellent motion control accuracy ensuring smooth operation and precise positioning

Seamless compatibility with Kollmorgen servo motors and motion control systems

Flexible parameter configuration via dedicated software tools

Low maintenance requirement and long service life for continuous industrial operation

Stable performance under variable power supply and harsh working conditions

Core Functions

Precise speed, position and torque control of servo motors

Real-time fault detection, diagnosis and alarm output

Parameter setting and motion logic programming

Real-time monitoring of motor operating data

Safe stop and emergency protection functions

Data exchange and linkage with PLC and industrial control hosts

Application Cases

Electronic manufacturing and semiconductor processing equipment

Packaging machinery and labeling automation devices

Printing, textile and material handling equipment

CNC precision machining and automated assembly lines

Robotic systems and automated conveying machinery

Characteristics

High-bandwidth closed-loop control for speed, position and torque

Built-in over-voltage, under-voltage, over-current, over-temperature and short-circuit protection

Strong electromagnetic interference resistance conforming to industrial EMC standards

High power density compact structure

Support for high-speed serial communication with upper-level controllers

Vibration-resistant and dust-proof industrial mechanical design
