Description
-
BrandABB
-
Model83SR52E/R1210
-
Product NameAnalog Control Module
-
Country of OriginSwitzerland
-
HS Code8537101190
-
Dimensions240 mm×150 mm×35 mm
-
Weight1.9 kg
-
Operating Temperature-20℃ ~ +60℃
-
Storage Temperature-40℃ ~ +85℃
-
Part NoGKWE858000R1210
-
Warranty12 month
-
Product StatusNew and original

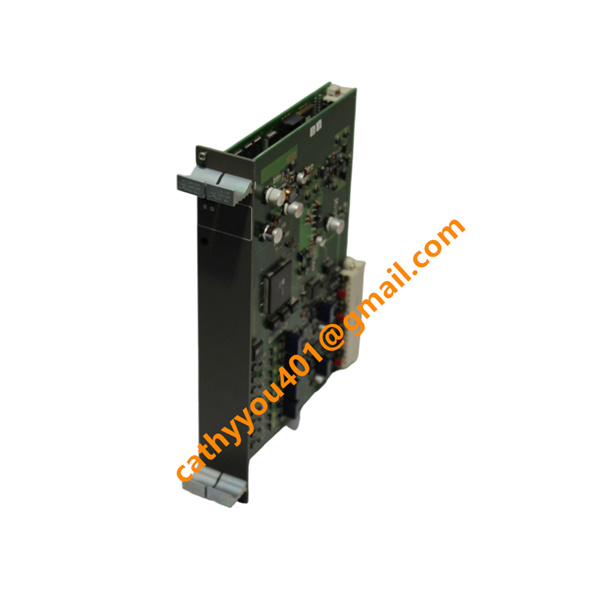

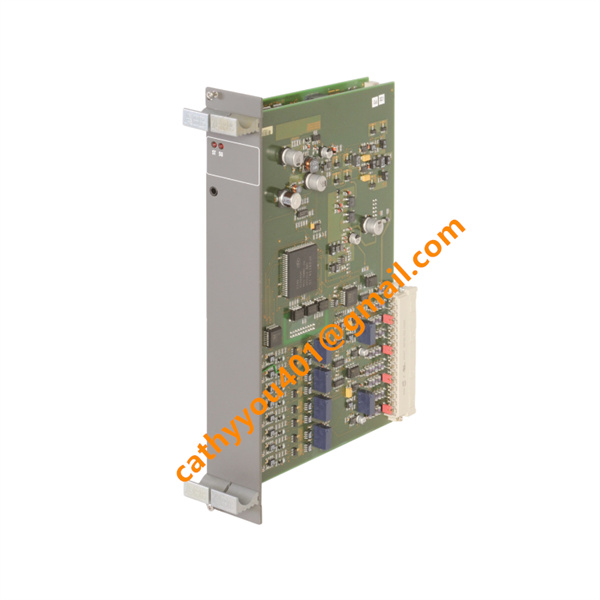

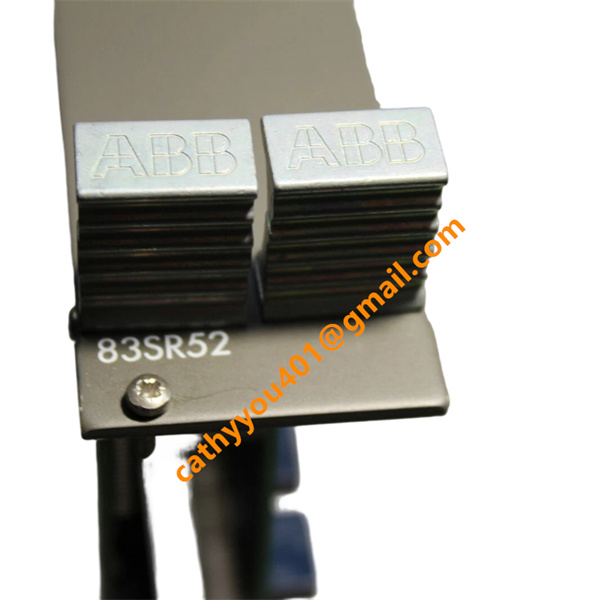

ABB 83SR52E/R1210 Procontrol P14 Analog Control Module
Technical Parameters
Input
1. Analog Input: Supports 4-20mA standard industrial signal, pulse input for frequency/flow signal collection
2. Binary Input: Multi-channel digital signal acquisition for switch status, interlock signals
3. Isolation Voltage: 500VDC electrical isolation between channels
4. Sampling Rate: High-speed real-time sampling, 24‑bit precision signal conversion
5. Input Range: 0-20mA / 4-20mA configurable
Output
1. Analog Output: Continuous 4-20mA regulation output for actuator drive
2. Relay Output: Programmable relay contacts for alarm interlock and on-off control
3. Communication Interface: Supports internal bus communication of Procontrol P14 system, compatible with upper DCS/SCADA platforms
4. Status Output: LED indicator for real-time module operation status feedback
Power Supply
1.Rated Input Voltage: 24VDC (20-30VDC wide range)
2.Power Consumption: ≤10W
3.Operating Temperature: -20℃ ~ +60℃
4.Storage Temperature: -40℃ ~ +85℃
5.Protection Grade: IP20 (indoor cabinet installation)
6.Mounting Method: Standard rack‑mount for control cabinet
Characteristics
1. Independent distributed control architecture, 32-bit high-performance CPU for fast logic execution
2. On-board integrated I/O interface, no need for additional signal conversion modules
3. Permanent hardware & software self-diagnosis function, real-time monitoring of module faults, sensor anomalies and communication exceptions
4. High electrical isolation and industrial-grade anti-interference design, resistant to electromagnetic interference, vibration and temperature fluctuation
5. Configurable control logic via standard function blocks, flexible adaptation to different regulation scenarios
6. Compact modular structure, easy installation, maintenance and replacement
Functions
1. Real-time acquisition of analog signals (pressure, temperature, flow, liquid level) and pulse signals
2. Closed-loop continuous analog regulation of valves, pumps and other actuators
3. Binary logic control, safety interlock and alarm output for industrial equipment
4. Distributed control task execution, reducing central control unit load
5. Data transmission and interaction with upper industrial control systems
6. Real-time fault diagnosis and abnormal alarm to ensure system stable operation
Product Advantages
1. Professional power plant-grade control module, mature and stable with long-term industrial application verification
2. Independent control capability, improving system reliability and avoiding single-point failure risks
3. Wide compatibility with mainstream industrial sensors and actuators, simple system integration
4. High measurement precision and fast response speed, meeting strict closed‑loop regulation requirements
5. Low power consumption, long service life, reducing later‑stage maintenance costs
6. Perfect compatibility with ABB Procontrol P14 DCS system, realizing seamless system expansion and upgrading
Application Cases
1. Power Generation Industry: Thermal power plants, hydropower plants and nuclear power plants for boiler feedwater regulation, turbine auxiliary system control and safety interlock
2. Oil & Gas Industry: Refineries, natural gas processing plants for flow control of compressors, pumps and pipeline systems
3. Chemical Industry: Continuous process control of reaction kettles, heating furnaces and fluid delivery systems
4. Metallurgy Industry: Temperature, pressure and flow regulation of smelting and rolling production lines
5. Water Treatment Industry: Precision control of large pump stations and sewage treatment process systems
