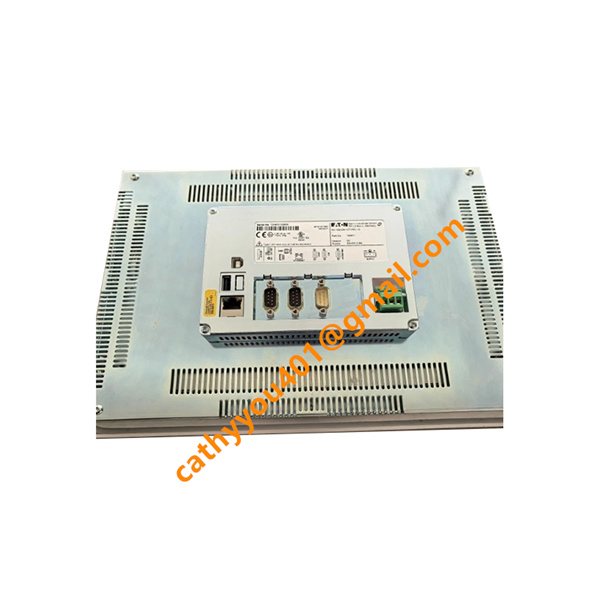

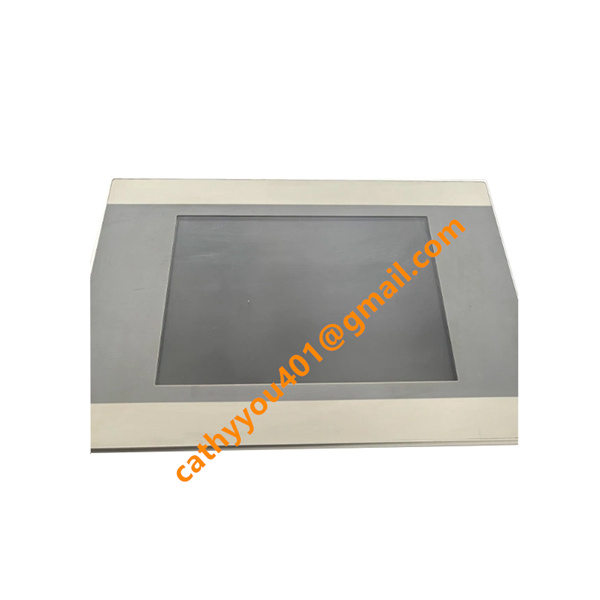

XV-152-D6-84TVRC-10 EATON industrial HMI

• Brand
  EATON
• Model
  XV-152-D6-84TVRC-10
• Product Name
  XV-152 8.4-inch Integrated HMI Touch Panel
• Country of Origin
  Czech Republic
• HS Code
  8471410000
• Dimensions
  275mm(W)×208mm(H)×52.5mm(D)
• Weight
  1.42 kg
• Operating Temperature
  -20℃ to +160℃
• Storage Temperature
  -30℃ to +200℃
• Power Supply
  24 V DC
• Warranty
  12 month
• Product Status
  New and original

EATON XV-152-D6-84TVRC-10 Product Introduction & Technical Specification

Electrical Input & Output Parameter

1.Power Input: 24 V DC (18~30VDC wide voltage range)

2.Rated Power Consumption: ≤18 W

3.Core Processor: 32-bit industrial fanless CPU

4.Memory Configuration: 128MB RAM, 128MB flash storage, SD card expansion slot

5.Display Parameter: 8.4-inch TFT LCD, resolution 640×480(VGA), 64K color, resistive touch screen

6.Main Communication Interfaces: 1×10/100Mbps Ethernet RJ45, 1×CAN bus, RS232, RS485, USB Host, USB Device

7.Supported Communication Protocols: Modbus TCP/RTU, CANopen, Profibus DP, Eaton SmartWire-DT

8.Built-in PLC Logic Execution: Support CODESYS programming, cycle execution time ≤1ms

9.Configuration Software: GALILEO HMI configuration software, CODESYS V2/V3 for PLC programming

10.Real-time clock: Built-in RTC, 10-year power-off data retention

Core Product Functions

1.Real-time display of equipment running parameters: speed, temperature, pressure, flow and equipment operating status

2.Complete on-site touch operation: manual/automatic switching, equipment start-stop, valve and actuator control

3.Real-time fault alarm pop-up display, alarm classification, sound reminder and fault record storage

4.Execute independent PLC logic control for small automation loops without additional PLC controller

5.Bidirectional data communication with Eaton PLC, third-party PLC, frequency converters and field intelligent instruments

6.Collect and store historical operation curves, alarm logs and equipment event records for maintenance analysis

Product Advantages

1.HMI + PLC integrated design reduces peripheral control equipment, saves cabinet space and lowers system cost

2.Rich multi-protocol communication ports, flexible connection with various brand automation devices

3. Fanless structure adapts to dusty, vibrating workshop harsh industrial environment

4.Simple GALILEO configuration and CODESYS programming, convenient project development and later maintenance

5.Stable 24-hour uninterrupted operation, long service life for industrial production equipment

6.Perfect matching with Eaton full set automation control products, zero communication compatibility problems

7.Standard replacement spare part for old Eaton mechanical automation system renovation and upgrade

Typical Application Cases

1.Packaging & Printing Machinery: Production line equipment operation monitoring and sequential linkage control

2.Metallurgical Auxiliary Equipment: Conveying machinery, cooling equipment parameter monitoring and interlock control

3.Water Treatment Industry: Dosing pump, fan linkage automatic control and process data monitoring

4.Plastic & Rubber Machinery: Extruder, injection molding machine local operation and working condition monitoring

5.Port Lifting Equipment: Small crane auxiliary equipment operation control and safety status monitoring

6.Food Processing Production Line: Assembly line equipment automatic sequential control and abnormal fault alarm

Product Characteristics

1.Aluminum alloy front panel, front IP65 protection grade, rear IP20 protection, dustproof and splash-proof

2.Fanless passive heat dissipation design, no mechanical wear, ultra-low failure rate

3. Wide operating temperature range: 0°C ~ +50°C; storage temperature: -20°C ~ +70°C

4.Ambient humidity: 5%~85% non-condensing, high anti-vibration and anti-electromagnetic interference performance

5.Multi-level user password authority management to prevent unauthorized operation modification

6.Complete hardware self-diagnosis for power abnormality, communication interruption and module fault alarming

7. Panel embedded installation mode, suitable for cabinet on-site installation

8. Passed UL, CE, cUL industrial certification, RoHS compliant

•
