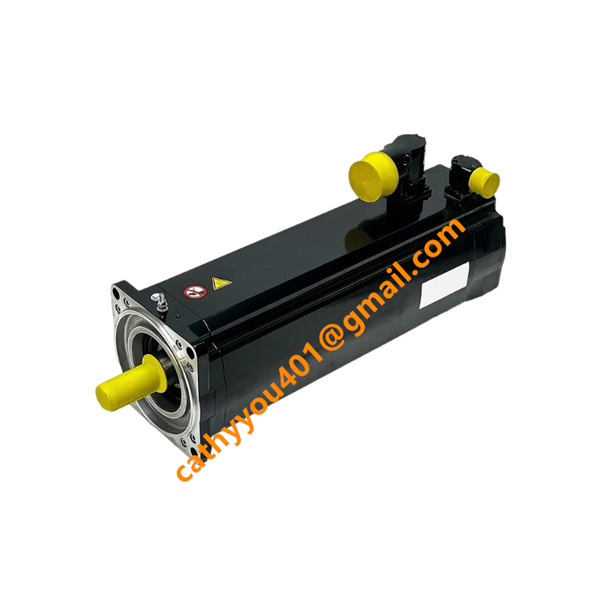

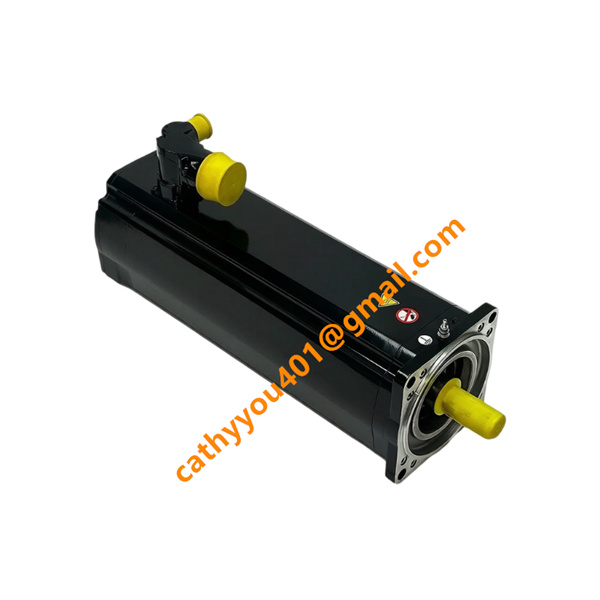

SH140/30330/0/0/02/00/00/11/00 ELAU DCS servo drive

• Brand
  ELAU
• Model
  SH140/30330/0/0/02/00/00/11/00
• Product Name
  SH140 Frame Permanent Magnet Synchronous Servo Motor
• Country of Origin
  Germany
• HS Code
  8501530090
• Dimensions
  425mm (L)×140mm (Flange)×140mm
• Weight
  19.5 kg
• Operating Temperature
  -20℃ to +100℃
• Storage Temperature
  -50℃ to +150℃
• Power Supply
  3AC 400V
• Warranty
  12 month
• Product Status
  New and original

ELAU SH140/30330/0/0/02/00/00/11/00 Product Introduction & Technical Specification

Electrical Input & Output Parameter

1.Power Input: 3-phase AC 400V (3AC 400V)

2.Rated Power: 3.3 kW

3.Rated Speed: 3000 rpm, Max speed: 4000 rpm

4.Rated Torque: 10.5 N·m, Peak Torque: 31.5 N·m (300% overload capacity)

5.Brake Parameter: 24VDC electromagnetic holding brake

6.Feedback Encoder: Multi-turn absolute Hiperface digital encoder, 23-bit resolution

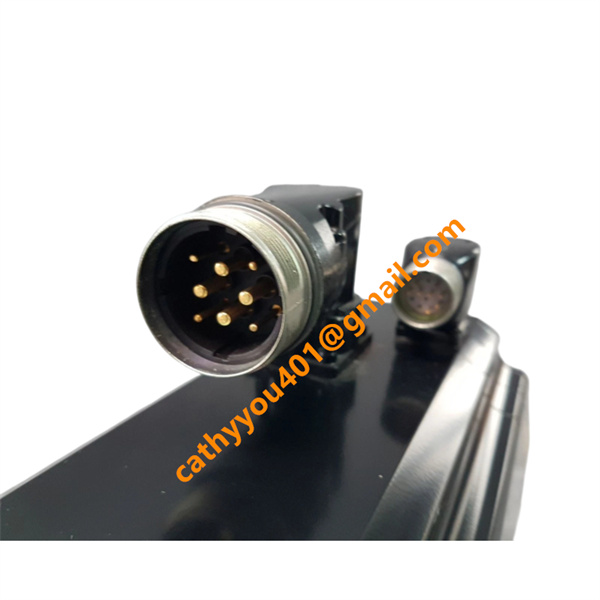

7.Motor Terminal: 90° angular composite power & encoder connector

8.Insulation Class: Class F

9.Matching Drive: ELAU PacDrive MC-4/MC-6 servo drive unit

10.Positioning Repeat Accuracy: ≤ ±0.001°

Core Product Functions

1. Execute high-precision rotary motion control for multi-axis linkage mechanical structures

2.Realize rapid acceleration/deceleration, constant speed operation and accurate fixed-point positioning

3.Provide static holding locking function via built-in brake to prevent shaft slipping under shutdown state

4. Feed real-time rotor position, speed and temperature feedback data to ELAU servo driver

5.Complete synchronous following motion among multiple servo axes under PacDrive system control

6.Cooperate with servo controller to realize electronic cam, electronic gear and flying shear motion logic

7.Accept torque/speed/position three-mode control instructions issued by upper motion controller

Product Advantages

1.Perfect matching with full ELAU PacDrive motion control system, one-click parameter auto-identification

2.3 times overload instantaneous torque output, strong dynamic response for high-speed reciprocating equipment

3.Absolute encoder eliminates homing procedure, improves equipment startup efficiency and safety

4. Fanless self-cooling structure reduces mechanical failure points, ultra-low maintenance cost

5. Compact flange mounting structure,

Product Characteristics

1.Low cogging torque design ensures smooth low-speed operation, no jitter during precise positioning

2.Built-in multi-turn absolute encoder, position data retention after power-off, no zero return requirement

3. Integrated DC electromagnetic brake for static position locking during equipment shutdown

4. Wide operating temperature: -15°C ~ +60°C; storage temperature: -40°C ~ +85°C

5. IP65 protection grade for motor body, shaft with oil seal, dustproof and splash-proof

6. High anti-vibration grade conforming to IEC60068 industrial mechanical standard

7. Natural air cooling structure, fanless design for long-term maintenance-free operation

8. Complete winding thermal protection, overcurrent & overload hardware protection

9. Passed CE, UL industrial certification, RoHS compliant
