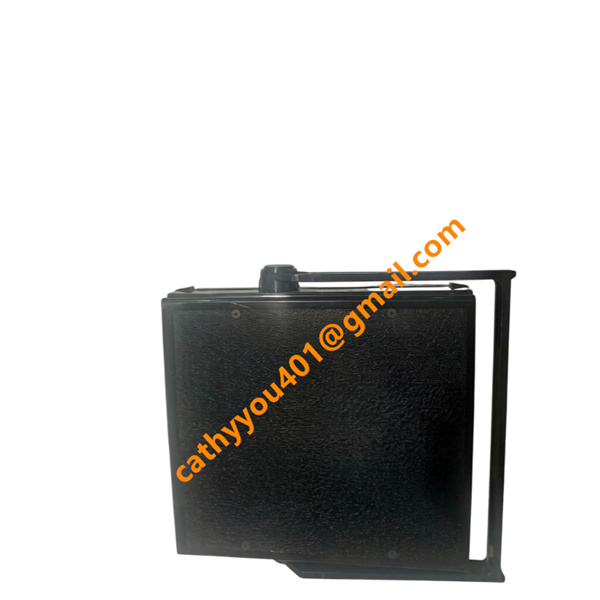

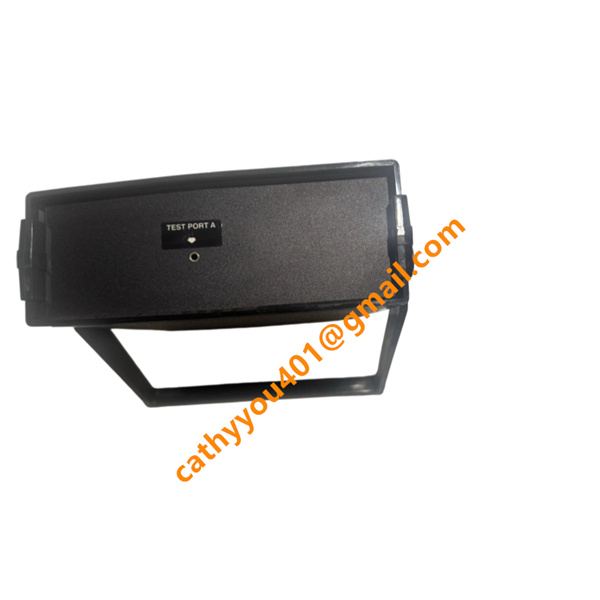

TVRMS2 GE DCS digital test kit in stock

• Brand
  GE
• Model
  TVRMS2
• Order Number
  TVRMS2
• Product Name
  Digital Trip Unit Test Kit
• Country of Origin
  United States
• HS Code
  9030331000
• Dimensions
  300mm × 250mm × 150mm
• Weight
  5.2kg
• Operating Temperature
  12 ℃ to 35℃
• Storage Temperature
  -10℃ to 38℃
• Warranty
  12 month
• Product Status
  new and original

Technical Parameters

1.Input specification: 120VAC power input, six D-cell battery input, 3-wire digital communication input via trip unit test jack;

2.Output specification: LCD display test data output, LED status indication output, test result storage and print output;

3.Power supply requirement: Dual-power design (120VAC or 6×D-cell batteries), low power consumption for portable field operation;

Main Functions

1.Verifies switch settings and configuration parameters on Power+, RMS-9, and Epic trip units;

2.Performs time-overcurrent characteristic testing with selectable trip/no-trip modes;

3.Monitors and records pickup current and trip time during high-current injection procedures;

4.Stores historical test data and results for maintenance logging, compliance, and post-failure analysis;

5.Provides real-time LED status indication and LCD data display for immediate test feedback;

6. Facilitates on-site troubleshooting and performance validation of GE circuit breaker protection systems.

Industrial Application Cases

1.Power distribution substations: On-site testing and calibration of GE circuit breaker trip units;

2.Industrial manufacturing plants: Electrical maintenance of motor control centers (MCC) and switchgear;

3.Commercial buildings: Critical power system breaker testing for safety and compliance;

4.Oil and gas facilities: Offshore platform and refinery electrical equipment maintenance;

5.Data centers: UPS and backup power distribution system breaker verification and reliability

GE TVRMS2 Detailed Introduction and Technical Parameters

1.Lightweight and compact portable design for easy transportation and on-site deployment;

2.Dual-power compatibility (120VAC or D-cell batteries) for flexible use in diverse field conditions;

3.Non-intrusive testing: No need to de-energize breakers or remove trip units during verification;

4.Menu-driven interface with intuitive operation for simplified test configuration and execution;

5.Compatibility with multiple GE trip unit models: RMS-9, Epic, Power+, MicroVersaTrip Plus/PM;

6.Real-time monitoring of pickup current and trip time during high-current injection testing;

7.Supports both trip and no-trip testing modes for time-overcurrent characteristic validation.
