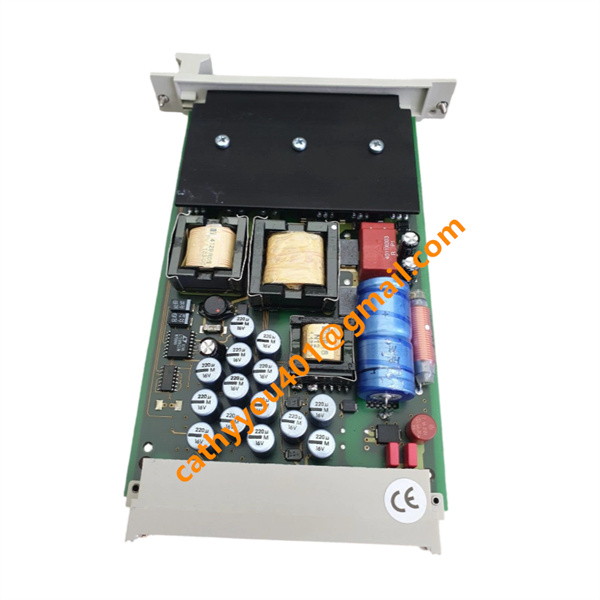

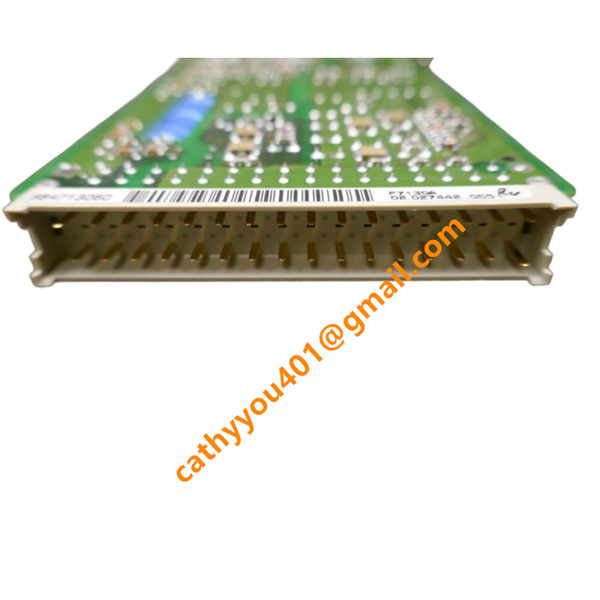

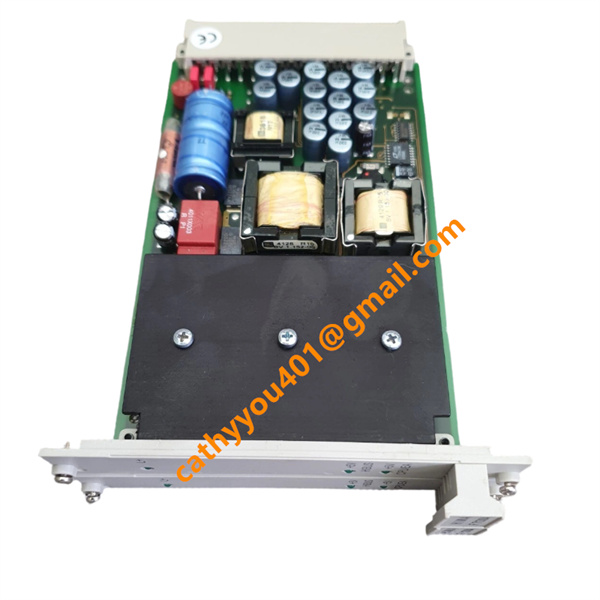

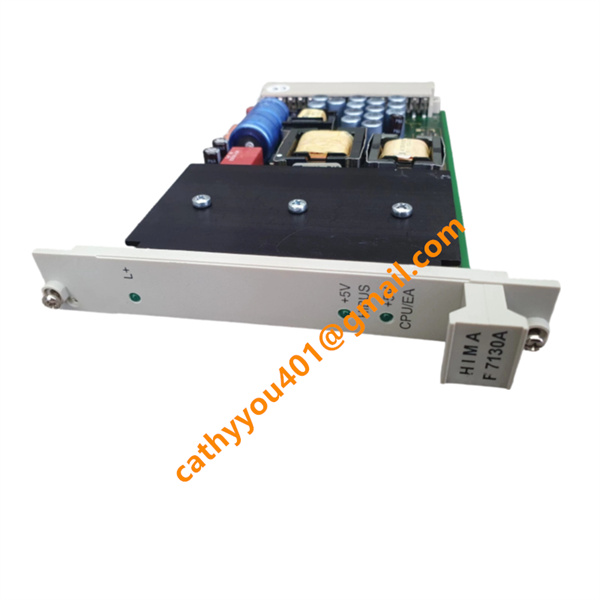

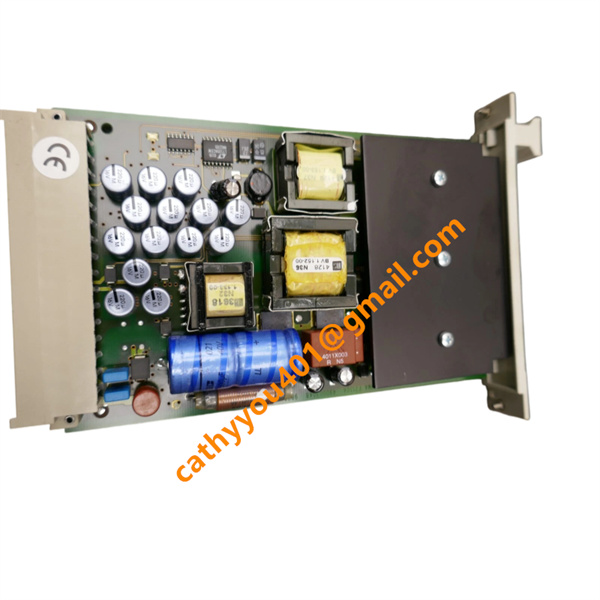

F7130A HIMA DCS safety controller

• Brand
  HIMA
• Model
  F7130A
• Product Name
  Power Supply Module
• Country of Origin
  Germany
• HS Code
  8538900090
• Dimensions
  310 mm×34 mm×255 mm
• Weight
  1.25 kg
• Operating Temperature
  -40 °C to +85 °C
• Storage Temperature
  -20 °C to +70 °C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

HIMA F7130A Product Introduction & Technical Specifications

Electrical & Interface Specifications

Input

Input Voltage Range: 24 V DC nominal; operating range 18–30 V DC

Input Type: DC power input from industrial power distribution system

Input Protection: Reverse polarity protection, surge and transient voltage suppression

Isolation: Galvanic isolation between input and output circuits

Output

Output Voltage: 5 V DC regulated for system backplane

Rated Output Current: 8 A continuous

Output Protection: Over-voltage, over-current and short-circuit protection with automatic shutdown and recovery

Status Output: Relay contact or digital signal for power-good and fault-status feedback to controller

Power Supply

Power Consumption: ≤ 40 W under full-load condition

Operating Temperature Range: -20 °C to +70 °C

Storage Temperature Range: -40 °C to +85 °C

Humidity Range: 5%–95% non-condensing

Key Features & Functions

Provides stable and regulated 5 V DC power supply for HIMA safety system backplane and I/O modules

Built-in multi-level protection mechanisms: reverse polarity, over-voltage, over-current and short-circuit protection

Integrated self-diagnosis function for real-time monitoring of input voltage, output status and internal hardware health

Supports hot-swap operation for non-stop system maintenance and replacement

High-efficiency power conversion design reduces heat generation and improves long-term reliability

Galvanic isolation design suppresses electromagnetic interference between field power and safety system

Complies with IEC 61508 SIL 3, IEC 61511 and TÜV safety certification requirements

Delivers power-good and fault-alarm signals to the main safety controller for system-level health monitoring

Product Advantages

1. High-Reliability Power Output: Precise voltage regulation and strong load capacity ensure stable power supply for safety-critical control modules.

2. Comprehensive Protection Mechanisms: Multi-layer electrical protection prevents module damage caused by abnormal power conditions and extends service life.

3. Advanced Self-Diagnosis: Real-time health monitoring enables early fault warning and reduces unexpected system downtime.

4. Hot-Swap Maintainability: Online replacement capability minimizes plant shutdown risk and improves overall system availability.

5. Authoritative Safety Certification: SIL 3 certification meets strict functional safety requirements for high-risk industrial applications.

6. Excellent Environmental Adaptability: Wide operating temperature and humidity range ensure stable performance in harsh industrial environments.

7. High Compatibility: Perfectly matched with HIMA H41q, H51q and HIMax safety system platforms for seamless integration.

Application Cases

Oil & Gas Industry: Applied in offshore platforms and onshore refineries to provide reliable power for ESD (Emergency Shutdown) and fire & gas safety control systems.

Petrochemical Industry: Deployed in ethylene plants, ammonia synthesis units and chemical reaction facilities to ensure stable power supply for SIS interlock control modules.

Power Generation Industry: Used in thermal power plants, gas turbine power stations and renewable energy safety control systems as the core power-supply component for safety-related hardware.

Chemical Processing Industry: Utilized in high-risk hazardous chemical production workshops to maintain continuous power for safety instrumented control and monitoring modules.

Mining & Metallurgy Industry: Integrated into mine hoist safety systems and metallurgical furnace protection control systems to provide stable power for critical safety I/O and logic modules.
