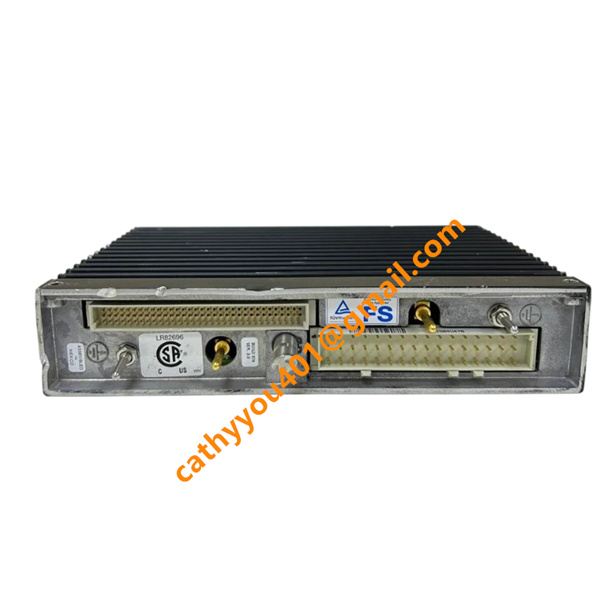

Triconex CM3201 communication processor module

• Brand
  Triconex
• Model
  CM3201
• Product Name
  Communication Module
• Country of Origin
  United States
• HS Code
  8538900090
• Dimensions
  311 mm×35.6 mm×256 mm
• Weight
  1.36 kg
• Operating Temperature
  -30℃ to 85℃
• Storage Temperature
  -25℃ to 75℃
• Power Supply
  5 V DC
• Warranty
  12 month
• Product Status
  New and original

Triconex CM3201 Product Introduction & Technical Specifications

Electrical & Interface Specifications

1.Input Interface: Compliant with Tricon backplane bus; supports RS-485 and Ethernet-based communication protocols; hot-swap compatible

2.Output Interface: Multiple communication ports for inter-system data interaction; supports Modbus TCP/IP, Modbus RTU, and Tricon proprietary communication protocols

3.Power Supply: Operates from Tricon system backplane power; rated input voltage 5 V DC; power consumption ≤ 15 W

Product Advantages

1. Industry-leading TMR fault-tolerant architecture ensures no loss of communication function upon single-point hardware failure

2. Hot-swap capability reduces system downtime and maintenance costs during module replacement

3. Rich protocol compatibility facilitates seamless integration with mainstream DCS, HMI, and industrial communication devices

4. High-precision self-diagnosis function quickly locates faults and improves system maintainability

5. Meets strict SIL 3 safety certification requirements, providing reliable communication guarantee for high-risk industrial safety systems

Application Cases

1.Oil & Gas Industry: Used in offshore platforms and onshore refineries to realize data communication between Triconex safety instrumented systems and DCS, ensuring stable transmission of process safety data such as pressure, temperature, and flow rate

2.Petrochemical Industry: Applied in ethylene, ammonia, and chemical reaction process control systems to provide reliable communication links for inter-system safety interlock signals

3.Power Generation Industry: Deployed in thermal power and gas turbine power plant safety control systems to realize data interaction between safety controllers and auxiliary control equipment

Key Features & Functions

1.Adopts TMR triple-modular redundant fault-tolerant design, providing high availability and fault tolerance for communication links

2.Supports hot-swap installation and replacement without interrupting the operation of the entire control system

3.Realizes bidirectional high-speed data transmission between Tricon controllers and external industrial control equipment, HMI, and DCS systems

4.Built-in self-diagnosis function, capable of real-time monitoring of module operating status, communication link faults, and hardware abnormalities

5.Supports multiple industrial standard communication protocols, with strong compatibility for interconnection with third-party industrial automation equipment

6.Compliant with IEC 61508 SIL 3 functional safety standards, suitable for safety-critical process control applications
