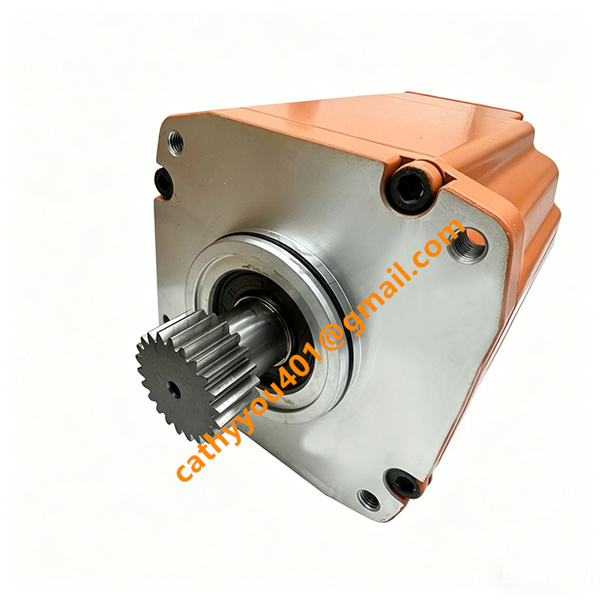

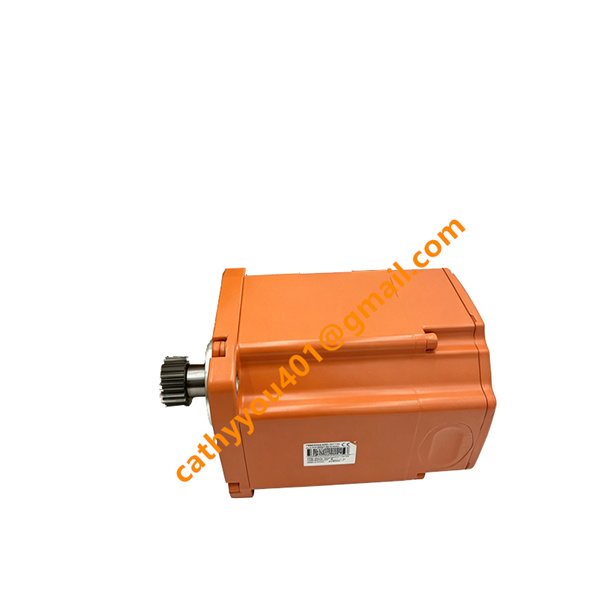

3HAC024519-001/03 ABB DCS servo motor NEW BRAND

• Brand
  ABB
• Model
  3HAC024519-001/03
• Product Name
  AC Servo Motor
• Origin
  Switzerland
• HS Code
  85016190
• Dimensions
  303*31*266 mm (L*W*H)
• Weight
  Approx. 3.5–4.5 kg
• Operating Temperature
  -20°C to +70°C
• Storage Temperature
  -40°C to +85°C
• Supply Voltage
  20–32 V DC
• Power Consumption Typical
  5 W; Max 40 W
• Isolation
  1500 V AC

ABB 3HAC024519-001/03 Product Profile & Technical Specifications

Physical & Environmental Specifications:

1.Dimensions: Compact modular design (Exact dimensions refer to ABB official datasheet)

2.Weight: Approx. 3.5–4.5 kg (Variable based on configuration)

3.Operating Temperature: -20°C to +60°C (Industrial-grade ruggedness)

4.Storage Temperature: -40°C to +85°C

5.Protection Class: IP65 (Dustproof and water-resistant)

6.Mounting: Flange or shaft mounting (Robotic standard)

Electrical Parameters：

1.Rated Voltage: 3-phase AC 400V (50/60 Hz)

2.Rated Current: 6.5–8.0 A (Depends on operational load)

3.Power Rating: 1.5–2.2 kW (High efficiency, >90% energy efficiency)

4.Insulation Class: F (High temperature resistance)

5.Speed Range: 0–3000 rpm (Wide speed adjustment for precision control)

6.Torque Characteristic: High starting torque, stable dynamic response

Product Advantages：

1.Unmatched Reliability: Engineered for harsh industrial environments, minimizing downtime

2.Precision & Consistency: Delivers repeatable performance for critical automation tasks

3.Easy Integration: Plug-and-play compatibility with ABB robotic systems reduces setup time

4.Energy Efficient: High power-to-weight ratio lowers operational costs

5.Global Support: Backed by ABB’s global service network for spare parts and technical assistance

6.Scalability: Compatible with ABB’s modular robotic ecosystem for system expansion

Key Features & Functions：

1.Precision Motion Control: High resolution encoder integration for sub-millimeter accuracy

2.High Dynamic Response: Fast acceleration/deceleration for high-speed robotic operations

3.Robust Construction: Resists vibration, shock, and electromagnetic interference (EMI)

4.Integrated Safety: Compliant with industrial safety standards (ISO 13849-1)

5.Seamless Compatibility: Optimized for ABB IRC5 / OmniCore robotic controllers

6.Real-Time Monitoring: Built-in diagnostics for fault detection and system health tracking

7.Long Service Life: Low maintenance design for continuous 24/7 operation
