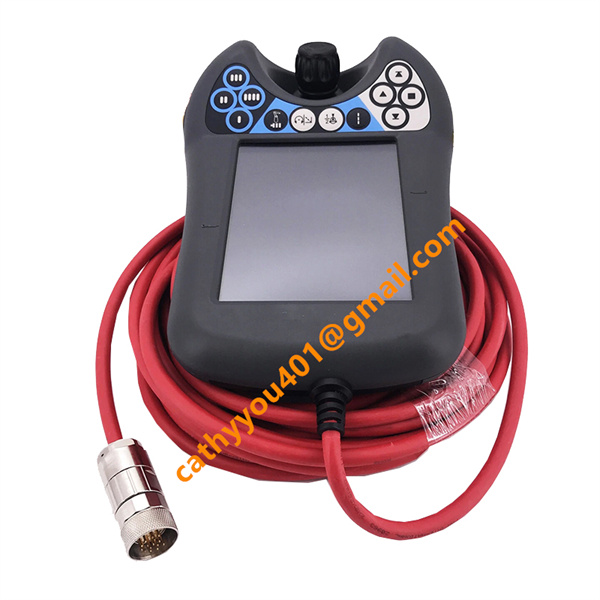

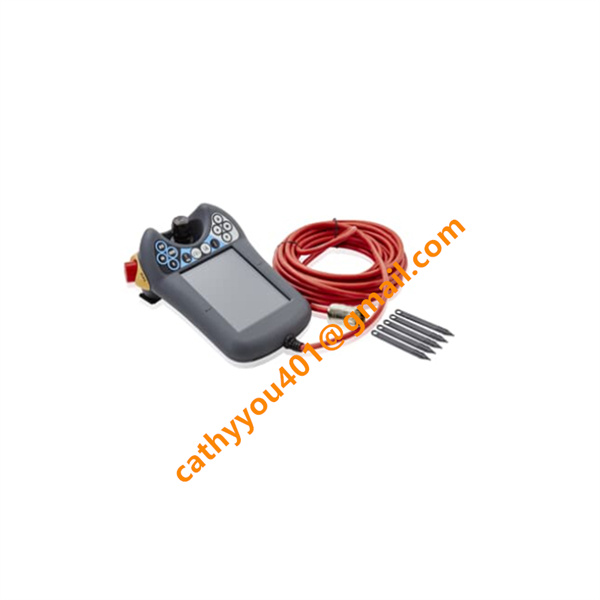

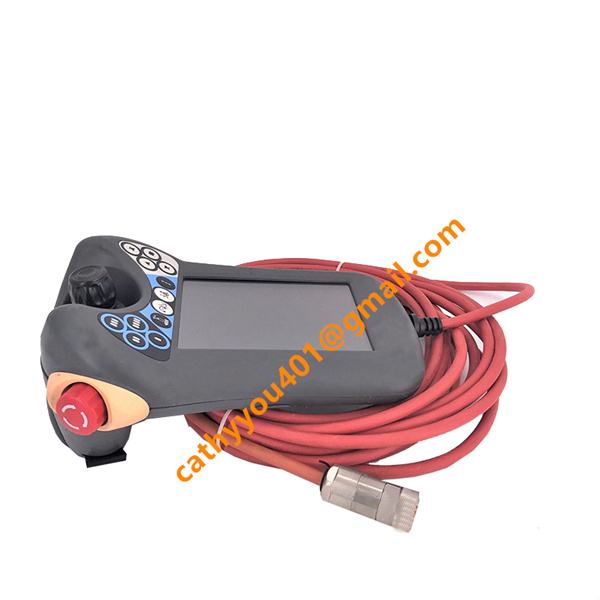

DSQC679 3HAC028357-001 ABB DCS teach pendant IN STOCK

• Brand
  ABB
• Model
  DSQC679
• Order Number
  3HAC028357-001
• Product Name
  FlexPendant Teach Pendant
• Origin
  Malaysia
• HS Code
  85371091
• Dimensions
  380*340*220 mm
• Weight
  Approx. 3.06 kg
• Operating Temperature
  0°C to +50°C
• Storage Temperature
  -20°C to +70°C
• Supply Voltage
  24 V DC
• Current Consumption
  0.5 A

Product Advantages:

1.Ergonomic Design: Reduces operator fatigue during extended use

2.Industrial Durability: Resists dust, water splashes, and mechanical shock

3.Intuitive Operation: Minimizes training time for programming and operation

4.High Safety: Complies with ISO 13849-1 and IEC 61508 for functional safety

5.Reliable Connectivity: Stable real-time communication with IRC5 controllers

6.Long Service Life: Designed for 24/7 industrial operation with low maintenance

Inputs:

1.Power Supply: 24VDC ±20% (tolerates voltage fluctuations for stable operation in industrial environments)

2.Signal Inputs:

3.Quantity: 16 input channels

4.Types: Support both single-ended and differential input configurations

5.Current Rating: Maximum input current of 5mA (ensures compatibility with low-power sensors and switches)

Outputs:

1.Output Type: Relay outputs (provides electrical isolation and robust switching for industrial control applications)

2.Current Rating: Maximum output current of 0.5A (suitable for driving relays, solenoids, and low-power actuators)

Electrical Parameters:

Supply Voltage: 24 V DC (from controller via cable)

Voltage Range: 20.4–28.8 V DC

Current Consumption: Typical 0.5 A

Isolation: Opto-isolated safety circuits

Communication: Ethernet (TCP/IP)

Interfaces: USB (for program backup/restore)

Core Functions:

1.Robot programming (point-to-point, path teaching)

2.Manual jogging and precision positioning

3.Parameter setting, I/O monitoring, and system configuration

4.Program backup, restore, and transfer

5.Safety loop monitoring and manual operation control

Typical Applications:

Automotive assembly and welding lines

Electronic component manufacturing

Key Features:

1.High-brightness, sunlight-readable touchscreen

2.Multi-language graphical user interface

3.Ergonomic, lightweight, rugged housing

4.Built-in safety: emergency stop + 3-position enabling switch

5.Hot-plug capable (with system safe-state procedures)

6.Comprehensive system diagnostics and status monitoring

7.Seamless compatibility with ABB RobotStudio and IRC5 control software
