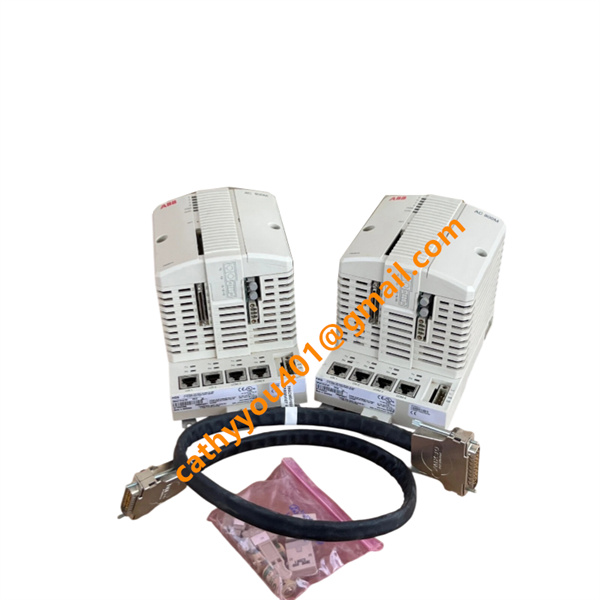

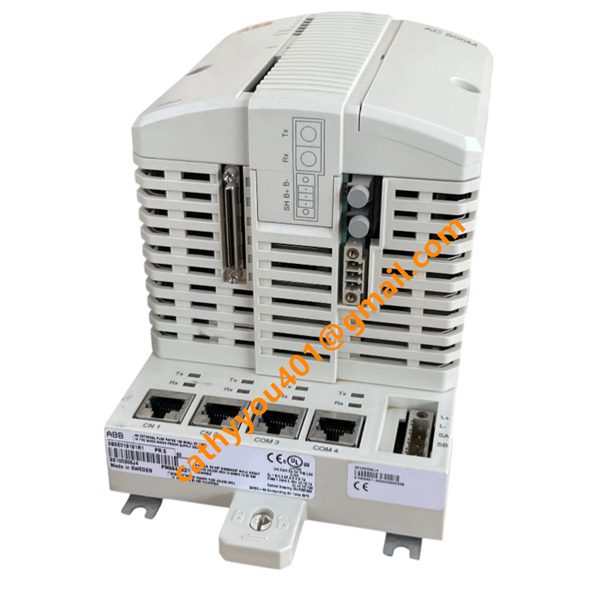

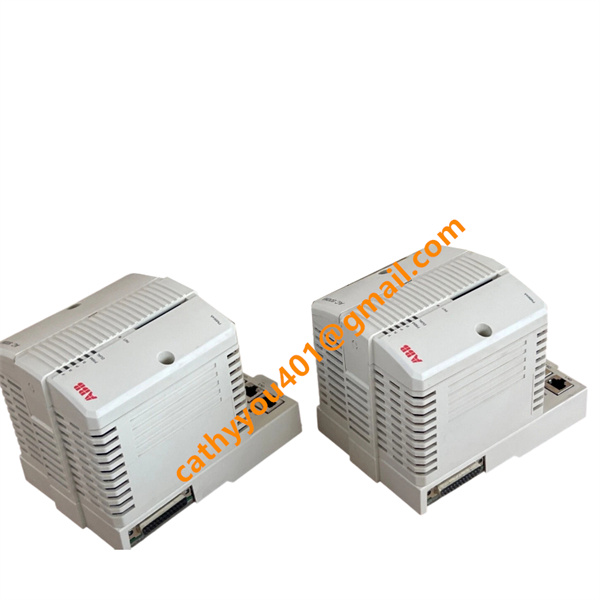

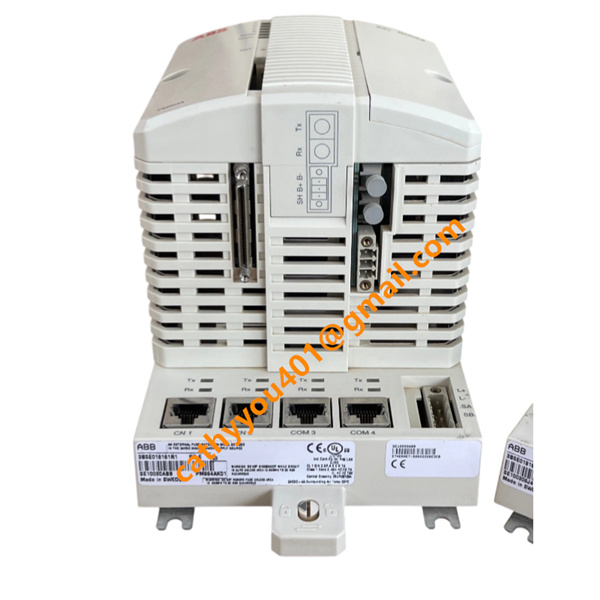

ABB 3BSE018164R1 PM864AK02 CPU processor module

• Brand
  ABB
• Model
  PM864AK02
• Order number
  3BSE018164R1
• Product name
  CPU Processor Control Module
• Place of origin
  Sweden
• HS code
  8537101100
• Overall dimension
  245mm × 155mm × 55mm
• Product weight
  2.85kg
• Operating temperature
  -4℃ to 28℃
• Storage Temperature
  10℃ to 35℃
• Warranty
  12 month
• Product Status
  new and original

ABB 3BSE018164R1 PM864AK02 Technical Parameters

1.Input specification Support fieldbus signal input, industrial Ethernet data input, on-site analog and digital process signal acquisition input, real-time sensor data receiving input

2.Output specification System logic control command output, peripheral I/O module control output, fieldbus and network data transmission output, equipment interlock protection signal output

3.Power supply requirement Rated working voltage 24 VDC, stable working voltage range 19.2 VDC to 30 VDC, low power consumption design for long-term continuous cabinet operation

Main Product Functions

1.Execute main control program, real-time logic operation and system scheduling for AC800M automation system;

2.Complete high-speed collection, processing, calculation and storage of all on-site production process data;

3.Realize automatic switching of redundant CPU to ensure zero downtime during main module failure;

4.Provide interlock protection, sequence control and automatic process regulation for production equipment;

5.Support online program modification, parameter adjustment and remote system debugging without production stop;

6.Realize data communication and information exchange between local control cabinet and remote workshop control station;

7.Upload real-time production data to upper monitoring system and complete data recording and alarm management.

Industrial Application Cases

1.Thermal power industry Used as core main control unit for boiler, turbine and auxiliary power plant automatic control system;

2.Chemical and petrochemical industry Applied to chemical reactor control, pipeline pressure regulation and production safety interlock system;

3.Pulp and papermaking industry Used for paper machine main drive control and pulp production process continuous automatic control;

4.Water treatment and environmental protection industry Deployed in sewage treatment and water supply pipeline automatic monitoring and control system;

5.Metallurgy and steel industry Applied to smelting furnace temperature control and rolling mill production line automatic control system;

6. Intelligent manufacturing factory Used as DCS and PLC core controller for automated production line and intelligent workshop centralized management.

Product Features

1.Built with industrial-grade high-reliability processor core for stable long-term operation;

2.Adopt dual-CPU redundant hot backup architecture to avoid system shutdown caused by single point failure;

3.Support hot plug and hot replacement without stopping the whole production system;

4.Designed with strong electromagnetic interference resistance, suitable for complex and harsh industrial environment;

5.Integrated multiple mainstream industrial communication protocols for convenient system networking and expansion;

6.Compact structure, easy installation and maintenance in standard industrial control cabinet;

7.With built-in system self-diagnosis and real-time running status monitoring function.

•
  3BSE018164R1 PM864AK02 data sheet
  Download
