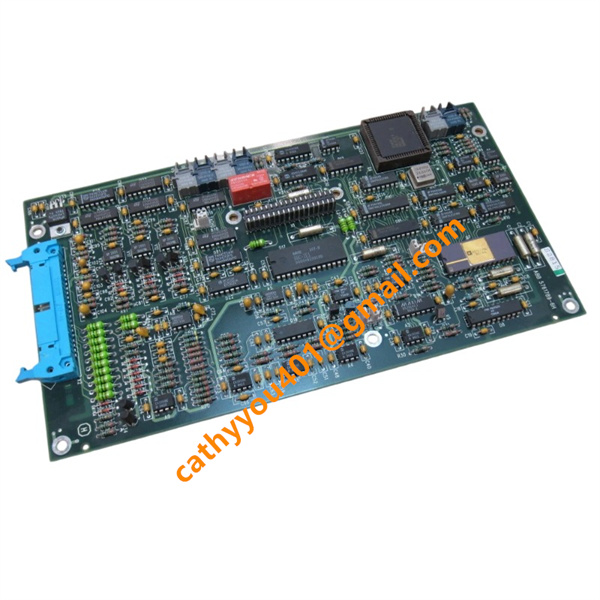

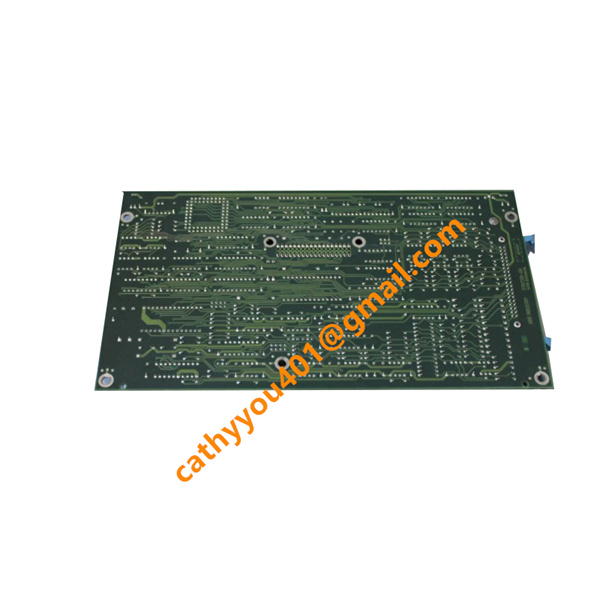

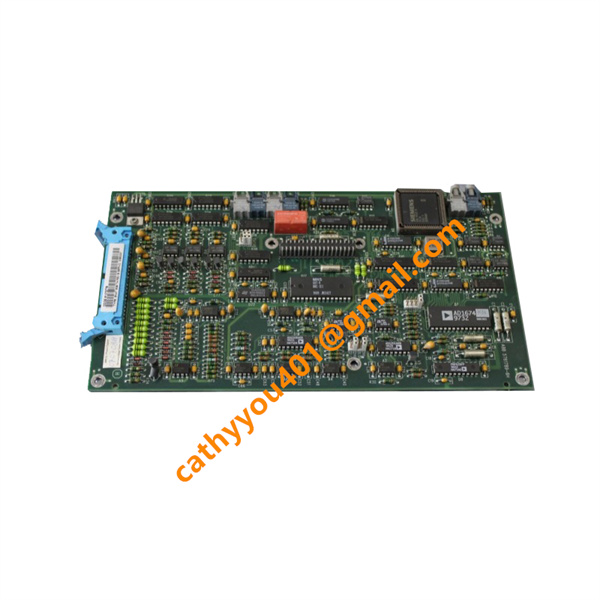

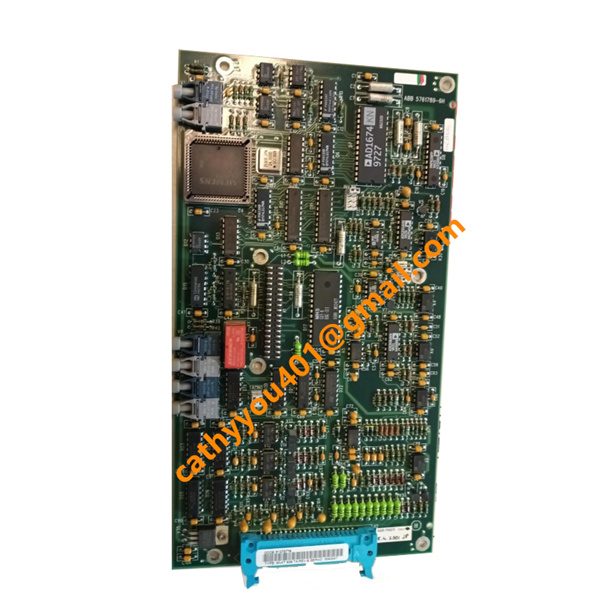

SNAT609TAI ABB DCS control board

• Brand
  ABB
• Model
  SNAT609TAI
• Order No.
  5761789-6H
• Product Name
  Control Board
• Country of Origin
  Sweden
• Customs Tariff Number
  8537101190
• Dimensions
  265 mm(L)*140 mm(W)*18 mm(H)
• Weight
  0.26 kg
• Operating temperature
  -20°C to +60°C
• Storage temperature
  -40°C to +85°C
• Warranty
  12 month
• Product Status
  new and original

ABB SNAT609TAI Product Brief Introduction

1.Power Supply: Standard industrial DC power supply, rated 24 V DC ±10%, with low power consumption design to reduce energy load

2.Input: Multi-channel mixed signal input, including 8-channel 24 V DC digital input and 4-channel analog input supporting 4–20 mA current signal acquisition; equipped with RS-485 communication interface for data signal reception

3.Output: Multi-channel signal output, including 6-channel digital output (transistor type, 24 V DC, 0.5 A) and 2-channel 4–20 mA analog output; supports high-frequency signal transmission up to 50 kHz

Main Functions:
Serves as the core signal processing and control execution unit in industrial automation systems, responsible for collecting real-time operating data of field sensors , converting and processing digital and analog signals, executing preset control logic algorithms, and sending precise control commands to drive units.SNAT609TAI realizes reliable data communication with the upper controller via RS-485 interface, supports real-time system operation monitoring, fault signal feedback, and parameter configuration, ensuring coordinated and stable operation of various components in the automation system

SNAT609TAI Practical Application Cases:
Widely applied as a core control accessory in ABB industrial drive systems, PLC and DCS automation platforms, including automotive manufacturing production line control systems, metallurgical industry rolling mill auxiliary control units, chemical industry process monitoring and regulation equipment, power plant auxiliary equipment automation control, and general industrial machinery automated production lines. SNAT609TAI  maintains stable and reliable performance under long-term continuous operation and complex working conditions, effectively improving the automation level, production efficiency, and overall equipment operational reliability of industrial production processes

SNAT609TAI Core Features:
Adopts high-reliability industrial-grade components with strict screening and aging testing; integrated surge protection and EMC anti-interference design to withstand complex electromagnetic environments; compact and thin PCB structure suitable for limited cabinet space; modular design for easy disassembly and compatibility with multiple ABB systems; supports hot-swappable replacement to minimize maintenance downtime; CE and RoHS certified for environmental compliance; excellent long-term stability with low failure rate under continuous cyclic operation
