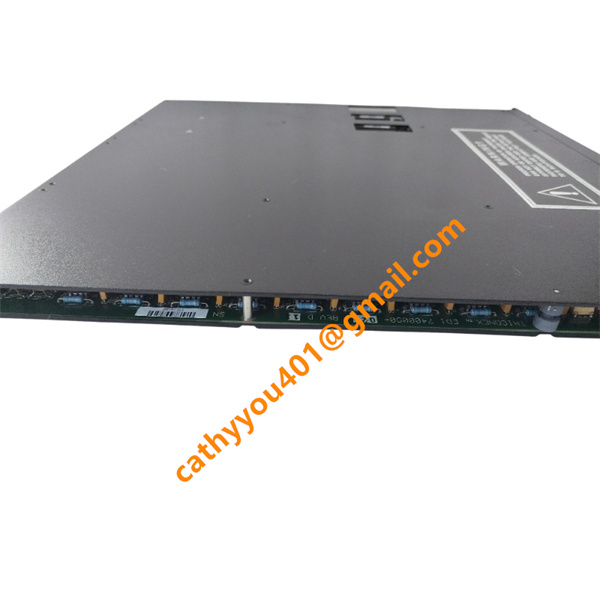

3503E Triconex DCS Digital Input Module

• Brand
  Triconex
• Model
  3503E
• Product Name
  24V AC/DC Digital Input Module
• Input
  24 VAC/VDC
• Origin
  United States
• HS Code
  85389091
• Dimensions
  120 mm x 80 mm x 50 mm
• Weight
  0.75 kg
• Operating Temperature
  -40°C to 70°C
• Storage Temperature
  -55°C to 85°C
• Warranty
  12 month
• Product Status
  New and original

Triconex 3503E Digital Input Module Product Introduction

Input

Input Type: 32-channel digital input, grouped into 4 isolated banks of 8 channels

Input Voltage: 24 VAC/VDC nominal; 20–42.5 VDC recommended

Maximum Input Voltage: 42.5 VAC/VDC

Input Signal: Dry or wet contact compatible

Frequency Response: DC or 47–63 Hz

Isolation: 2500 VAC channel-to-backplane isolation

Response Time: ≤2 ms

Output

This module is a digital input-only module with no output channels.

Power Requirements

Power Input: Backplane-powered from Tricon chassis (24 VDC)

Power Consumption: ≤6 W
Humidity: 5%–95% (non-condensing)

Core Functions

1.Acquires and processes critical field signals from emergency stop buttons, pressure switches, flame detectors, and gas sensors.

2.Performs real-time TMR voting to ensure accurate, fault-free signal data.

3.Provides comprehensive fault diagnostics for field wiring and module health.

4.Supports sequence-of-events (SOE) logging with high-resolution time stamping.

5.Integrates seamlessly with Tricon v9–v11 safety systems.

Key Features

1.Full Electrical Isolation: 2500 VAC isolation protects against ground loops and electrical disturbances.

2.EMC Compliance: Meets IEC 61000-4 standards for industrial electromagnetic compatibility.

3.MTBF > 2,000,000 Hours: Exceptional reliability for long-term operation.

4.Flexible Grouping: 8-channel isolated banks for versatile field wiring.

5.Industry Approvals: SIL 3, ATEX, FM, CE, and cUL certifications.

Application Cases

1.Oil & Gas Refineries: Monitors ESD buttons and pressure switches in catalytic cracking units; triggers shutdowns within 7 ms during abnormal conditions.

2.Petrochemical Plants: Integrates with gas detection systems to isolate toxic chemical pipelines and activate safety protocols.

3.Power Generation: Monitors turbine vibration, temperature, and speed signals for emergency protection.

4.Offshore Platforms: Operates in high humidity and salt spray to control safety valves and fire suppression systems.

5.Nuclear Facilities: Monitors reactor cooling systems and radiation sensors with fail-safe reliability.

6.Chemical Processing: Manages safety interlocks for polymer reactors and hazardous material storage.

Key Advantages

1.TMR Architecture: Triple redundant signal processing with 2oo3 voting eliminates single-point failures, ensuring 99.999% system availability.

2.SIL 3 Certification: Complies with IEC 61508 SIL 3 for critical safety applications.

3.Advanced Diagnostics: Continuous self-testing detects open circuits, short circuits, and internal faults with real-time alerts.

4.Hot-Swappable: Online replacement without system shutdown minimizes downtime.

5.Harsh Environment Rating: Operates reliably in extreme temperatures, high vibration, and electromagnetic interference.

6.High Channel Density: 32 input channels reduce cabinet space and system costs.
