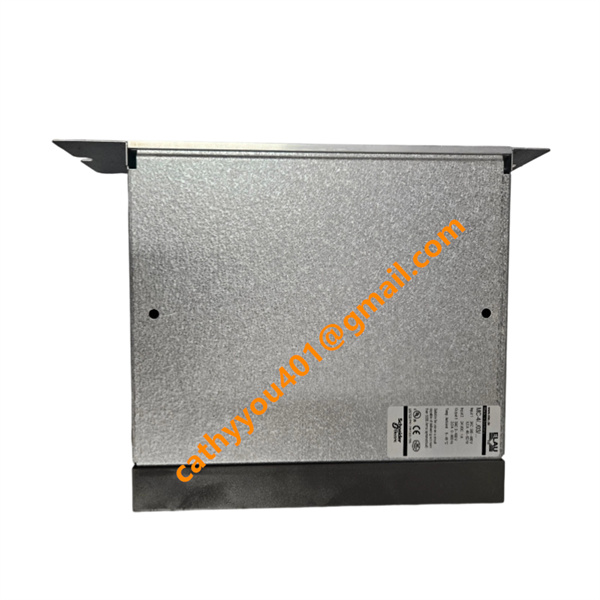

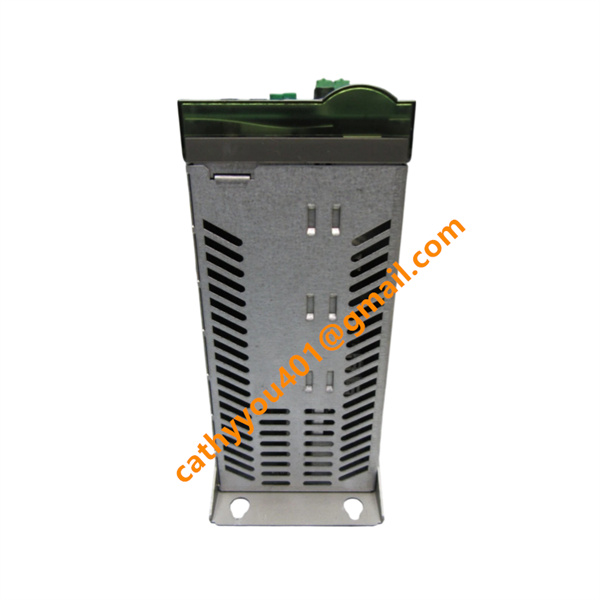

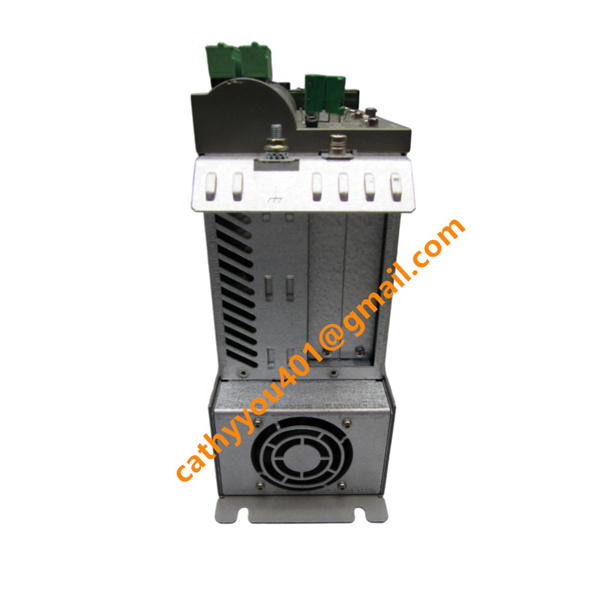

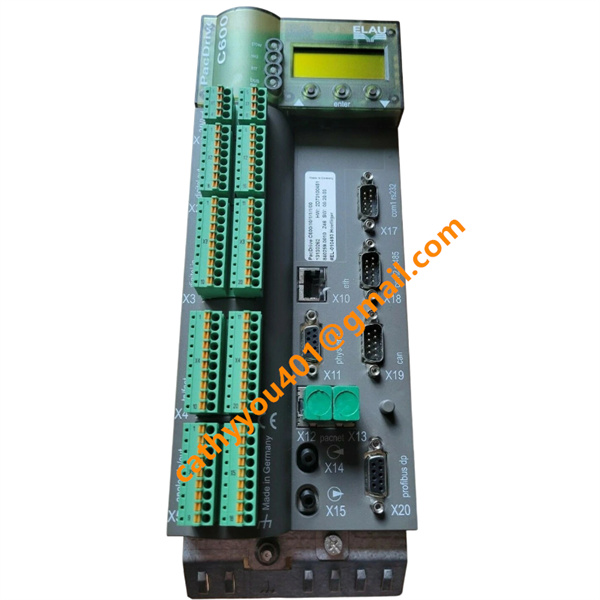

C600/10/1/1/1/00 ELAU servo drive in stock

• Brand
• Model
  C600/10/1/1/1/00
• Product Name
  Servo Controller
• Country of Origin
  Germany
• Dimensions
  296mm(W)×268mm(D)×70mm(H)
• HS Code
  85371090
• Weight
  3.5 kg
• Operating temperature
  +5°C to +45°C
• Storage temperature
  -25°C to +70°C
• Power Supply
  24 V DC
• Warranty
  12 month
• Product Status
  New and original

ELAU C600/10/1/1/1/00 Product Introduction & Technical Specifications

Input Specifications

Power Supply: 24 V DC (-15% ~ +25%)

Local I/O: 20× Digital Inputs (DI), 16× Digital Outputs (DO), 2× Analog Inputs (AI), 2× Analog Outputs (AO)

Feedback Interfaces: Supports EnDat 2.2, SSI, Resolver

Communication Inputs: SERCOS III, EtherCAT (CoE), PROFIBUS DP, CANopen, Ethernet TCP/IP

Output Specifications

Motion Control Output: Capable of controlling up to 99 servo axes via SERCOS bus (16 MBaud)

Digital Outputs: 16× configurable DO, 500 µs response time

Analog Outputs: 2× AO (±10 V)

Communication Outputs: Ethernet, PROFIBUS DP Master/Slave, CANopen

Functions

Multi-Axis Control: Simultaneous control of up to 99 servo axes with precise synchronization

Motion Modes: Position, velocity, and torque control modes

Advanced Curves: Up to 255 parallel motion profiles and 256 electronic cam groups

Logic Control: Integrated PLC for sequential and batch logic control

Communication: Extensive industrial network connectivity for system integration

Data Logging: Real-time data acquisition and trend analysis

Product Advantages

High Precision: Sub-millisecond control accuracy for ultra-precise motion trajectories

High Performance: Powerful processor for complex motion algorithms and fast I/O response

Robust Reliability: Industrial-grade design for continuous operation in harsh environments

Flexible Integration: Wide compatibility with motors, drives, and third-party devices

Scalability: Modular I/O and axis expansion to adapt to varying system requirements

Ease of Use: Intuitive programming and comprehensive diagnostic tools

Features

Processor: Intel Pentium M 1.6 GHz

Memory: 256 MB RAM, 256 kB NVRAM, 128 MB CompactFlash storage

Operating System: VxWorks Real-Time OS

Task Cycle: Fast task cycle down to 250 µs

Programming: IEC 61131-3 full language support

Safety: Integrated STO (Safe Torque Off) function, SIL2/PLd certified

Diagnostics: Character LCD display + LED status indicators

Certifications: CE, UL, cUL compliant

Application Cases

Packaging Machinery: High-speed flow wrappers, vertical form fill seal (VFFS) machines, rotary indexers

Printing & Converting: Web tension control, register control, die-cutting machines

Pharmaceutical Equipment: Tablet counting, filling, and labeling lines

Assembly Automation: Automotive component assembly, electronic product assembly

Food Processing: Cutting, sorting, and handling systems

Robotics: Multi-axis articulated robots and delta robots

•
