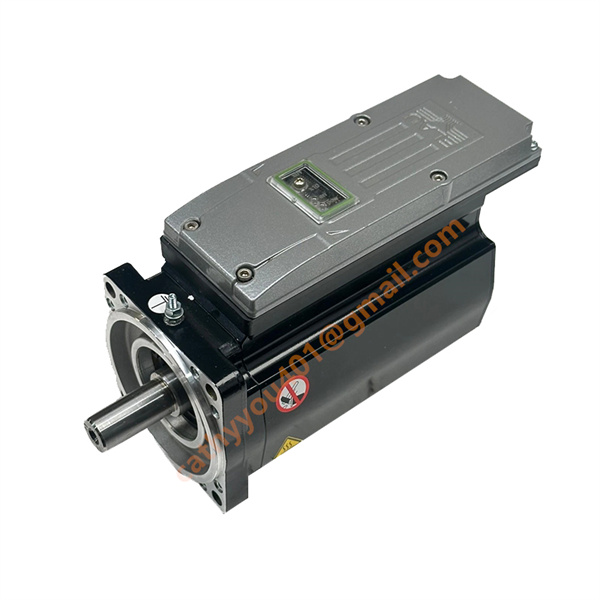

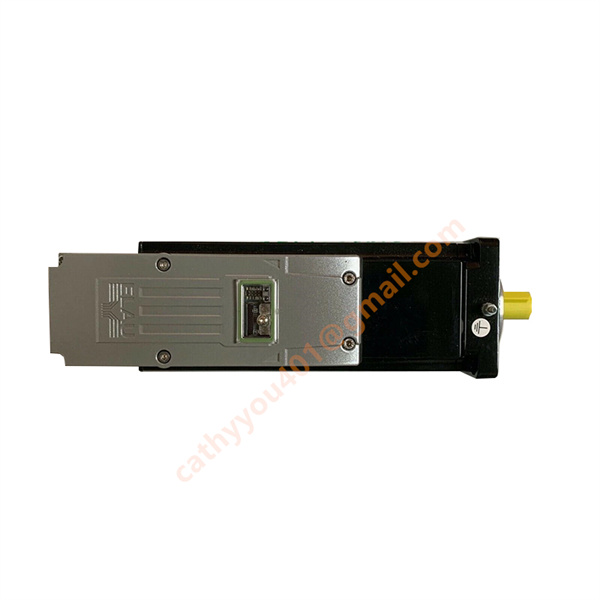

ISH100/30058/0/0/00/0/00/01/00 ELAU DCS motor

• Brand
  ELAU
• Model
  ISH100/30058/0/0/00/0/00/01/00
• Product Name
  iSH100 Series Servo Motor
• Origin
  Germany (ELAU GmbH)
• HS Code
  8501530090
• Weight
  8.0 kg
• Flange Size
  100 mm (100 Flange Series)
• Shaft Diameter
  19 mm (With Keyway)
• Length Approximately
  190 mm (Excluding Shaft)
• Operating Temperature
  -20℃ ~ +40℃

Environmental & Temperature Parameters:

Operating Temperature: -20℃ ~ +40℃

Storage Temperature: -40℃ ~ +85℃

Relative Humidity: ≤ 90% (No Condensation)

 Altitude: ≤ 1000 m (Derating Required for Higher Altitudes)

Electrical Parameters

Rated Power: 3.0 kW

Rated Voltage: 400 VAC (Three-Phase)

Rated Current: Approximately 5.2 A

Rated Frequency: 50/60 Hz

Rated Speed: 3000 rpm (Maximum Speed: 3000 rpm)

Rated Torque: 5.8 Nm (Peak Torque: 17.4 Nm)

Rotor Inertia: 0.0018 kg·m²

Encoder Type: Sine-Cosine Encoder (SKM 36), Resolution: 16384 Pulses per Revolution

Insulation Class: Class F

Protection Class: IP65 (Body) / IP54 (Shaft End)

Product Advantages:

1.Superior Energy Efficiency: The permanent magnet synchronous design minimizes energy loss, reducing power consumption compared to traditional servo motors, which helps lower overall operational costs for industrial equipment.

2.Exceptional Positioning Accuracy: Equipped with a high-resolution sine-cosine encoder and closed-loop control system, it ensures precise motion control, reducing positioning errors and improving production efficiency and product quality.

3.Robust & Durable Construction: Adopting high-quality materials and strict manufacturing standards, combined with IP65 protection rating, it can withstand harsh industrial environments such as dust, water splashes, and temperature fluctuations, ensuring long-term stable operation and reducing maintenance frequency.

4.High Compatibility & Flexibility: Fully compatible with ELAU PacDrive, Lexium and other mainstream servo control systems, supporting CANopen communication protocol, which is easy to integrate into existing automated production lines and adapt to different application scenarios.

Product Features:

1. Brushless permanent magnet synchronous design, featuring high-precision positioning, high dynamic response, low noise, and long service life.

2. Built-in high-resolution sine-cosine encoder with closed-loop control, achieving a positioning accuracy of up to 0.001 mm.

3. Compact 100-flange structure with high power density, suitable for industrial equipment with limited installation space.

4. IP65 protection rating, adaptable to harsh industrial environments, resistant to dust and water splashes.

5. Compatible with ELAU PacDrive, Lexium and other servo control systems, supporting CANopen communication protocol.

6. Application Fields: Packaging machinery, printing equipment, food and beverage production lines, robots, textile machinery, automated production lines and other high-precision motion control scenarios.
