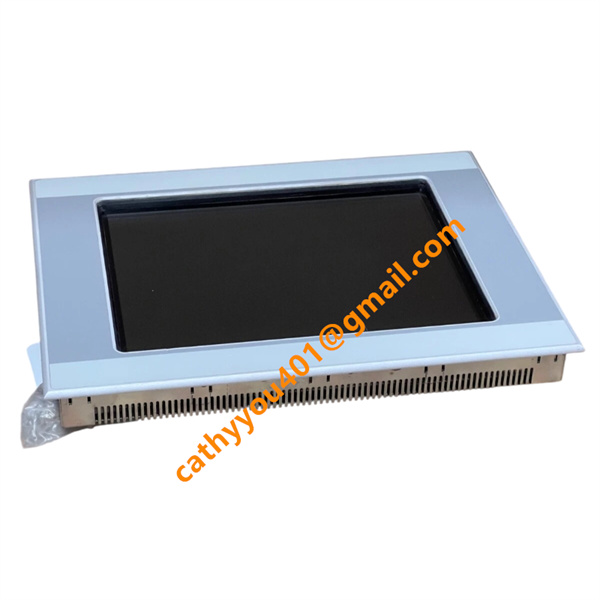

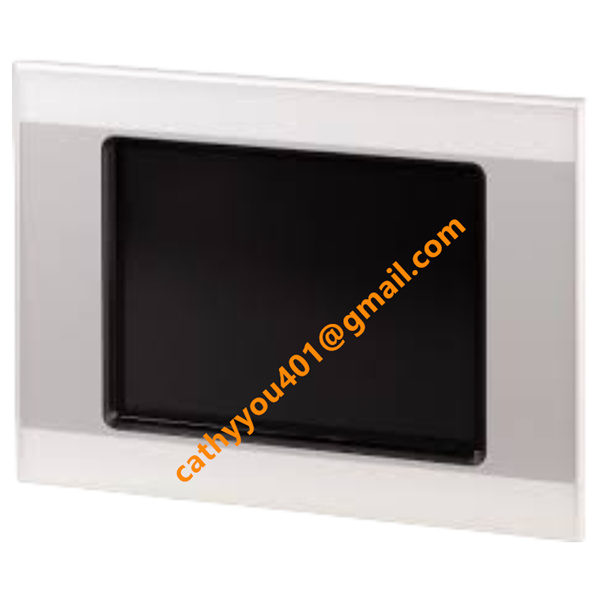

EATON XVS-440-10MPI-1-1U Industrial HMI Touch Screen Panel
Technical Parameters
Relative Humidity: 5%–95% RH (non-condensing)
Power Supply: 24 V DC (18–32 V DC wide range)
Power Consumption: ≤ 6 W (fanless passive cooling)
Protection Rating: Front panel IP65 (NEMA 4X equivalent); Rear side IP20
Display: 10.4-inch TFT color LCD, 640 x 480 (VGA) resolution
Touch Technology: 5-point capacitive multi-touch, high sensitivity for glove operation
Display Brightness: 250 cd/m²
Backlight: LED backlight, lifespan ≥ 50,000 hours
Processor: ARM Cortex-A9 800 MHz high-performance CPU
Memory: 2 GB DDR3 SDRAM, 8 GB Flash memory
Expansion: 1 x SD card slot (supports up to 32 GB SDHC)

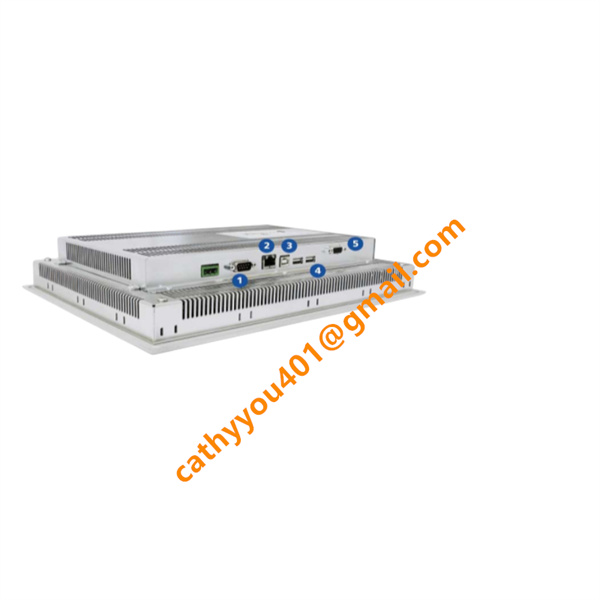

Communication Interfaces:
1 x MPI (Multi-Point Interface) dedicated port
2 x Ethernet 10/100 Mbps (RJ45)
1 x RS-232/485 (selectable)
2 x USB 2.0 (1x Host, 1x Device)
1 x DVI-D video output
Protocol Support: MPI, Modbus RTU/TCP, Ethernet/IP, Profibus DP, CANopen, Siemens S7 protocol
Isolation: 2500 V AC signal-to-system galvanic isolation
Certifications: CE, UL 508, cULus, CCC, ATEX, IECEx, RoHS
Mounting: Flush panel mounting (control cabinet/console)
Enclosure Material: Steel chassis with tempered glass front, flame-retardant ABS/PC plastic
Configuration Software: EATON XVS-Designer / Galileo 10
Operating System: Embedded Linux OS
Product Features
Advanced Capacitive Touch: 5-point multi-touch capacitive screen delivers precise, responsive control, operable with work gloves.
Industrial-Grade Ruggedness: IP65 front panel resists dust, water, oil, and chemical exposure; steel chassis for vibration resistance.
Fanless Passive Cooling: No moving parts ensures high reliability, low noise, and minimal maintenance.
High-Performance Computing: Powerful ARM processor and ample memory for smooth graphics and multi-tasking.
Dedicated MPI Connectivity: Native MPI port for seamless, high-speed integration with Siemens PLC systems.
Versatile Communication: Rich I/O and dual Ethernet ports support diverse industrial protocols for multi-vendor compatibility.
High-Visibility Display: Crisp VGA resolution with LED backlight for clear readability in varying ambient light.
Flexible Expansion: SD card slot enables data logging, project storage, and easy firmware updates.
Superior EMC Performance: Exceptional electromagnetic compatibility for stable operation in electrically harsh environments.
Wide Environmental Tolerance: Operates reliably across extended temperature and humidity ranges.
Easy Installation & Maintenance: Front-panel design simplifies mounting, wiring, and system access.
Global Compliance: Certified to international safety and environmental standards for worldwide deployment.
Core Functions
Real-Time Process Visualization: Displays dynamic mimic diagrams, trends, bar charts, and live process variables.
Intuitive Touch Control: Enables on-site parameter adjustment, start/stop commands, and manual mode operation.
MPI PLC Integration: Direct high-speed communication with Siemens S7 PLCs via dedicated MPI port.
Data Acquisition & Logging: Captures, stores, and exports process data to SD card or network servers.
Alarm & Event Management: Generates real-time visual/audible alarms, logs events, and displays fault codes.
Remote Monitoring & Control: Supports remote access via Ethernet for off-site system management.
System Diagnostics: Built-in self-test and health monitoring for HMI and connected field devices.
Recipe Management: Stores and retrieves production recipes for efficient batch changeovers.
Multi-Language Support: Full Unicode support for global operator interface customization.
Firmware & Project Updates: Easy software updates via USB or SD card for continuous feature enhancement.
Typical Application Cases
Manufacturing Automation: CNC machine tools, assembly lines, packaging machinery, and material handling systems.
Automotive Production: Body shop control, powertrain assembly, and robotic workcell management.
Food & Beverage: Processing lines, filling machines, and sanitary packaging operations.
Pharmaceutical & Chemical: Reactor control, batching systems, and hazardous area monitoring.
Water & Wastewater: Pump stations, treatment plant SCADA, and distribution network control.
Power Generation & Distribution: Substation automation, boiler control, and turbine monitoring.
Oil & Gas: Refinery processes, pipeline monitoring, and wellhead automation.
Metallurgy & Mining: Furnace control, rolling mills, and ore processing equipment.
Marine & Offshore: Vessel automation, engine control, and offshore platform systems.
Building Automation: HVAC control, energy management, and facility monitoring systems.
Key Advantages
Siemens MPI Compatibility: Native MPI interface ensures seamless, high-performance integration with Siemens PLC ecosystems.
Proven EATON Reliability: Industrial-grade design for continuous operation in demanding environments.
Enhanced Operational Efficiency: Intuitive multi-touch interface reduces training time and human error.
Flexible System Integration: Broad protocol support and rich connectivity for multi-vendor environments.
Low Total Cost of Ownership: Fanless design, minimal maintenance, and long service life reduce lifecycle costs.
Superior Durability: IP65 rating and rugged construction withstand harsh industrial conditions.
Future-Proof Technology: Scalable hardware and software support ongoing system upgrades.
Global Support & Compliance: EATON’s global service network and international certifications ensure worldwide usability.
Compact & Space-Saving: Slim profile optimizes control cabinet panel space.
High MTBF: Robust components and passive cooling deliver exceptional mean time between failures.
