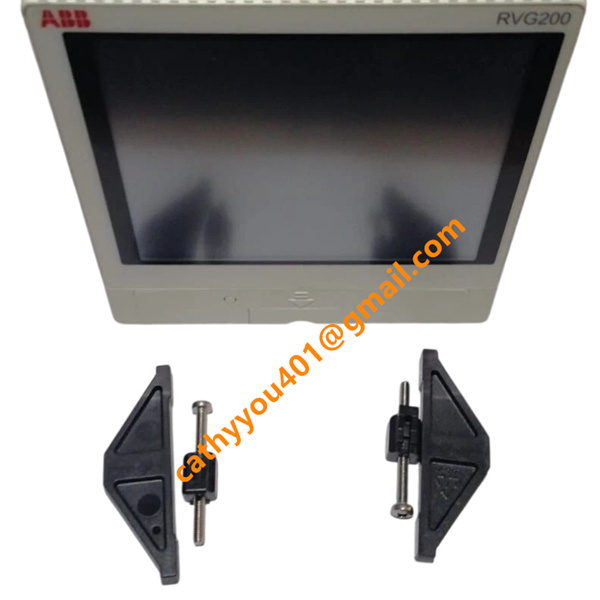

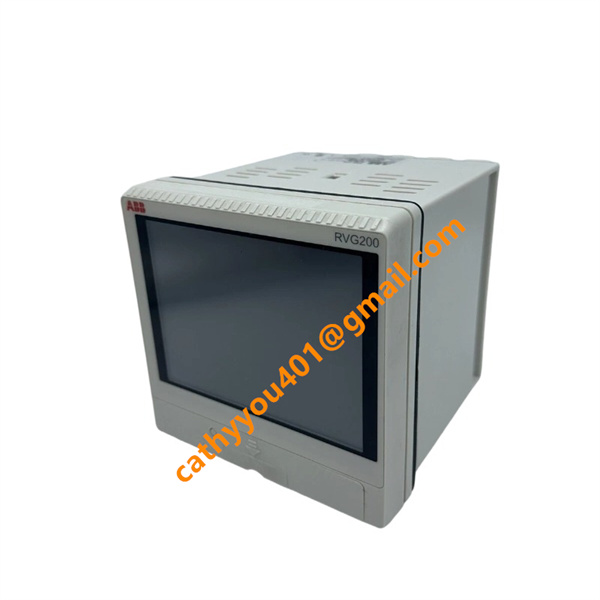

ABB RVG200 Paperless Data Recorder

• Brand
  ABB
• Model
  RVG200
• Product Name
  Paperless Data Recorder / Chart Recorder
• Country of Origin
  United Kingdom
• HS Code
  90318080
• Dimensions
  5.7 in. x 5.7 in
• Weight
  2.0 kg (4.4 lbs)
• Operating Temperature
  0°C to 50°C (32°F to 122°F)
• Storage Temperature
  -10°C to 60°C (14°F to 140°F)
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

ABB RVG200  Power Supply Requirements
1.Universal AC Input option: 100 to 240 V AC$\pm10\%$ (operating window of 90 V min to 264 V max), 50/60 Hz.
2.DC Input option: 24 V DC nominal (operating window of 23.0 V to 24.5 V DC).
3.Power Consumption: 25 W maximum (AC or DC models depending on total active module cards).
4.Galvanic Isolation: 500 V DC to earth ground.
ABB RVG200  Input Channels
The RVG200 provides highly flexible, modular input expansions configured in blocks of 6, 12, 18, or up to 24 universal analog input channels.
1.Supported Universal Input Types:
Current loops: 0–20 mA, 4–20 mA
Voltage ranges: Millivolts (mV) up to Volts (V)
Resistance Temperature Detectors (RTD): Pt100, Pt1000, etc.
Thermocouples (TC): Type J, K, T, E, R, S, B, N, etc.
Standard Resistance/Potentiometers
Digital Inputs (Volt-free contacts or logic levels)
Channel Sampling Rate: 125 ms parallel sampling for all channels.
Input Isolation: 500 V channel-to-channel isolation providing superior noise immunity.
Expansion Digital Inputs: Optional modules can add 5 or 10 dedicated digital input lines.
ABB RVG200  Output Channels
Standard Relay Output: 1 built-in low-power configuration relay output standard on the baseline chassis.
Expansion Relays: Scalable option cards allowing for 6, 12, 18, or 24 total relay outputs.
Hybrid/Analog Outputs: Supports 6 or 12 hybrid output combinations including mA analog retransmission loops and 24 V DC digital outputs.
Transmitter Power Supply (Tx PSU): Built-in loop excitation power providing a dedicated 24 V DC source to power up to 2-wire field transmitters.

ABB RVG200  Product Key Advantages

Superior Cyber Security & Compliance:Conforms strictly to FDA 21 CFR Part 11 and GAMP 5 validation practices by recording data in a highly compressed, tamper-evident encrypted file format to prevent unauthorized edits.

Responsive Touch Control:Modern touchscreen panel mimicking smartphone navigation with simple swipe commands to flip effortlessly between process groups, chart histories, and setup wizards.

Advanced Mathematical & Computational Functions:Features 24 optional math blocks and 24 logic equations to perform internal volumetric flow totalization, customized linearizations, mass calculation, and complex steam/water heat-energy balances.

Robust Network Integration:Standard integrated web-server architecture allows engineers to view real-time operations or acknowledge pending process alarms directly from a PC web browser. It also supports automated data forwarding via FTP and immediate notification alerts via email.

Optimized Industrial Durability:Resilient NEMA 4X / IP66 front casing allows the recorder to handle extreme hosedown regimes, dust contamination, or chemical wipe-downs, making it suitable for direct field mounting close to pipelines and reactors.

ABB RVG200  Wiring & Connection Methods

Electrical Termination

The RVG200 utilizes a rugged rear-terminal terminal configuration hidden behind an insulated safety barrier to isolate dangerous voltages:

Terminal Blocks: Accepts field wiring via secure screw-clamp or compression terminal blocks located directly on the rear of individual module cards.

Wire Sizes: Accommodation of wire gauges ranging from 0.8 mm² to 2.5 mm² (18 to 14 AWG).

Communication Interfacing:

Features a standard 100 Mbps full-duplex RJ45 Ethernet port for network hookups.

Includes an optional RS485 terminal connection for Modbus RTU serial links.

Peripheral Connections: Offers dual USB ports (one located on the front face behind a media door and one on the rear) to attach hardware keyboards, computer mice, or external handheld barcode scanners.

Removable Storage Media: Built-in SD card slot behind the locked front door mechanism for physical data offloading.

•
