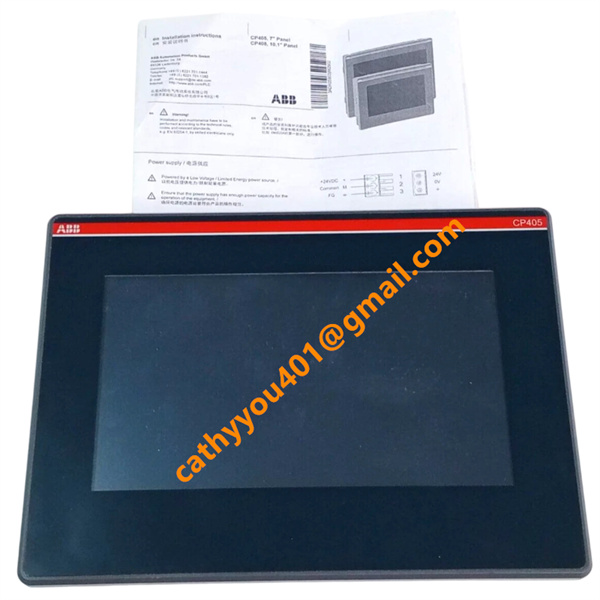

CP405-A1 1SAP500405R0001 ABB HMI Control Panel

• Brand
  ABB
• Model
  CP405-A1
• Product Name
  7-inch Industrial Touch Screen HMI Control Panel
• Country of Origin
  China
• HS Code
  85285211
• Dimensions
  204.4mm×151mm×26.5mm
• Weight
  0.6kg
• Operating Temperature
  -10℃ to +60℃
• Storage Temperature
  -20℃ to +70℃
• Part Number
  1SAP500405R0001
• Warranty
  12 month
• Product Status
  New and original

ABB CP405-A1  1SAP500405R0001 Product Introduction & Technical Specifications

Input and Output Parameters

Power Input: Standard 24VDC industrial power supply, rated current 0.6A, low power consumption design

Touch Input: High-precision capacitive touch input, supporting multi-point smooth operation and anti-misoperation function

Communication Interface: Equipped with dual serial communication ports and Ethernet port, supporting Modbus RTU/TCP and mainstream industrial automation communication protocols

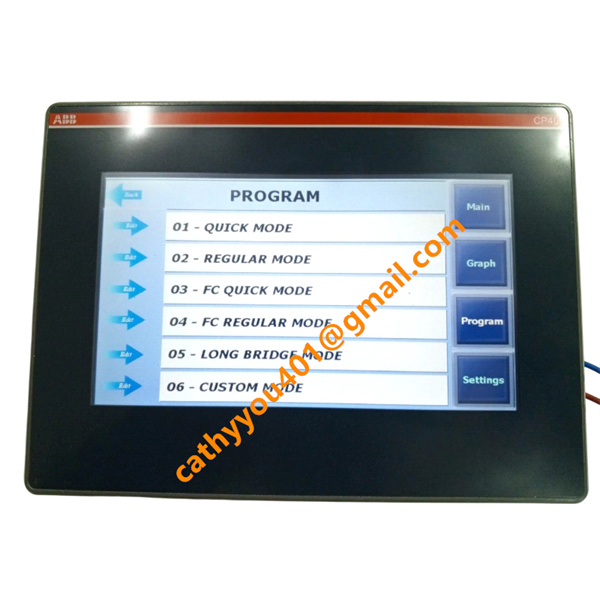

Display Output: 7-inch high-resolution TFT color display, realizing clear real-time data, curve and alarm information output

Internal Function: Built-in hardware clock with backup battery, supporting accurate time calibration and data recording

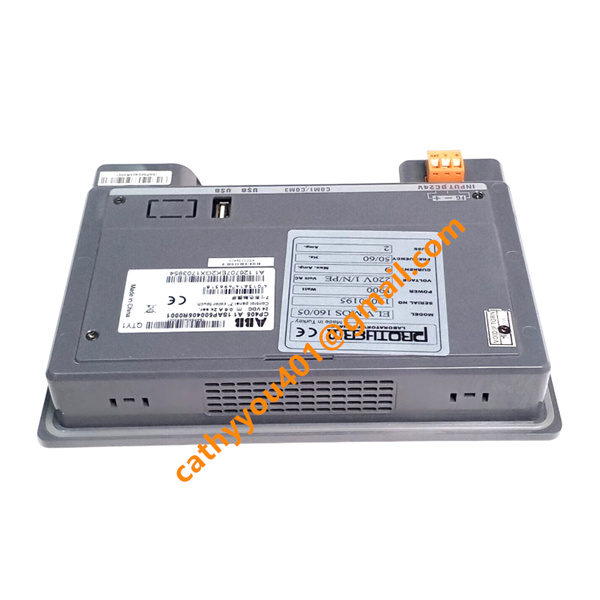

Wiring Mode

It adopts rear terminal wiring and interface plug-in wiring mode. The 24VDC power supply is connected via dedicated rear terminals with clear polarity marks to avoid reverse connection damage. Communication signals are connected through standard serial port and Ethernet plug-in interfaces for fast docking with control equipment. The whole wiring is divided into power circuit and signal circuit to avoid electromagnetic interference. Shielded cables are recommended for long-distance communication wiring to ensure stable data transmission.

Compatibility & Matching Accessories

It is fully compatible with ABB industrial PLC and System 800xA DCS automation systems, supporting linkage with various on-site sensors and execution modules. Standard supporting accessories include embedded installation fixing brackets, sealing gaskets, communication cables and power connecting wires. It supports original ABB supporting accessories and qualified third-party compatible accessories for equipment installation, screen program debugging and system upgrading.

Application Scenarios

It is widely used for human-machine interaction and on-site monitoring in various industrial automation scenarios. Mainly applied in manufacturing, chemical, water treatment, food processing, packaging and logistics industries. It serves as the on-site operation and monitoring terminal for automated production lines, fan and pump control systems, and intelligent workshop equipment, realizing real-time parameter viewing, remote operation, fault alarm and production data statistics.

Core Product Advantages

This HMI panel features high-sensitivity capacitive touch screen with smooth operation and strong scratch resistance. The front IP67 waterproof and dustproof structure adapts to harsh on-site industrial environments. Compact integrated design saves installation space and supports fast embedded panel mounting. It achieves seamless communication and data synchronization with ABB PLC and DCS systems with excellent compatibility. Built-in rich function libraries support customized screen editing, data monitoring, alarm prompt and data recording. Low power consumption and industrial-grade hardware design ensure long-term stable and fault-free operation, reducing equipment maintenance costs.
