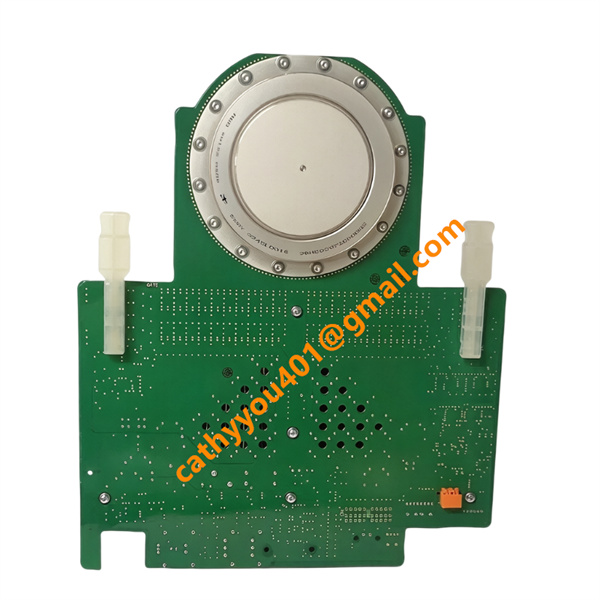

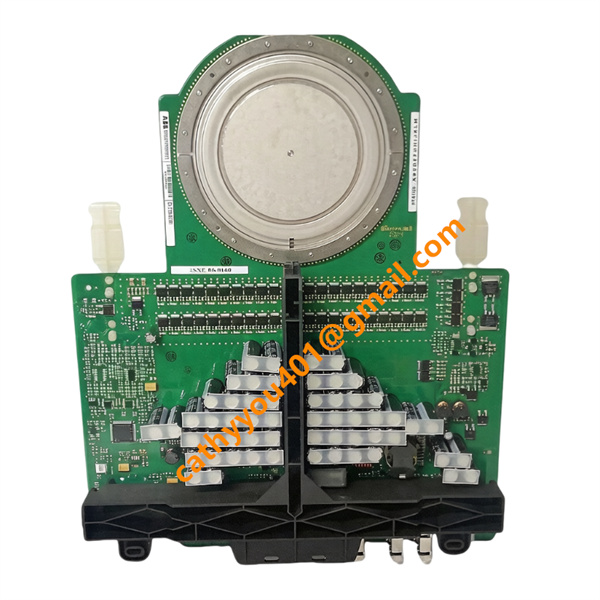

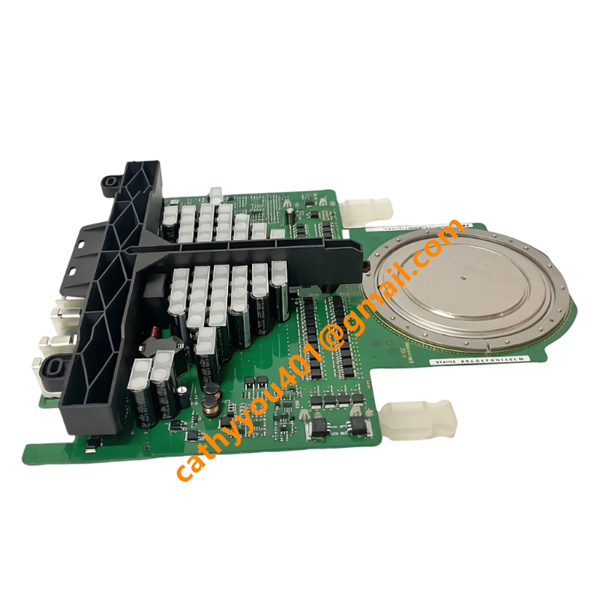

5SHY3545L0016 3BHE019719R0101 ABB IGCT Power Switch Module

• Brand
  ABB
• Model
  5SHY3545L0016
• Product Name
  High-Power IGCT Power Switch Module
• Country of Origin
  Switzerland
• HS Code
  85413000
• Dimensions
  130mm×95mm×42mm
• Weight
  1.0kg
• Operating Temperature
  -20℃ to +70℃
• Storage Temperature
  -40℃ to +85℃
• Part Number
  3BHE019719R0101
• Warranty
  12 month
• Product Status
  New and original

ABB 5SHY3545L0016 (3BHE019719R0101) Product Introduction & Technical Specifications

Input and Output Parameters

Rated Operating Voltage: Medium and high voltage level, supporting industrial high-voltage power conversion

Rated Through Current: High continuous current bearing capacity, adapting to high-power load operation

Gate Control Input: Standard low-power gate trigger signal input, supporting precise switch-on and switch-off control

Power Output: Stable high-power energy conversion output, supporting variable frequency and voltage regulation of power equipment

Switching Performance: Fast switching speed, low switching loss, suitable for high-frequency power conversion operation

Isolation Performance: High-voltage insulation isolation between control circuit and power circuit, with strong voltage surge resistance

Wiring Mode

It adopts high-current copper busbar hard connection for main power circuit to ensure stable current transmission and low heat generation. Low-power gate control signals adopt screw terminal wiring with clear signal marking to prevent wiring errors. The overall wiring structure separates high-voltage power circuit and low-voltage control circuit to avoid electromagnetic crosstalk. Shielded cables are recommended for control signal wiring, and standardized high-voltage insulation wiring specifications must be followed during installation to ensure operational safety.

Compatibility & Matching Accessories

It is fully compatible with ABB medium and high-voltage frequency converter systems and supporting power drive units, and matches perfectly with ABB GVC series control boards and excitation modules. Standard supporting accessories include dedicated insulating gaskets, heat-conducting silicone grease, fixing bolts, high-voltage insulating baffles and busbar connectors. It supports original ABB supporting accessories and qualified industrial-grade third-party accessories for equipment maintenance, module replacement and system upgrade.

Application Scenarios

It is mainly used as the core power switching component for medium and high-voltage frequency converters in power plants, metallurgy, mining and cement industries. It is widely applied to power conversion and energy regulation of high-power motor speed control systems. It also serves as a key power semiconductor module for renewable energy power generation equipment, industrial power supply systems and high-power transmission and distribution control equipment, undertaking efficient and stable power conversion tasks.

3bse002492r1

Core Product Advantages

This IGCT module features ultra-high voltage resistance and large current transmission capability, meeting the operation requirements of high-power industrial power equipment. It adopts low-loss power semiconductor technology to effectively reduce energy consumption during power conversion and improve system energy efficiency. Built-in over-current, over-temperature and over-voltage multi-protection mechanisms avoid module burnout and system failure. It delivers fast dynamic response and stable switching performance, ensuring high-precision power regulation. Adopting industrial-grade packaging technology, it features strong shock resistance and thermal stability, supporting long-term continuous heavy-load operation. It has excellent matching with ABB high-voltage converter systems with high operational reliability.
