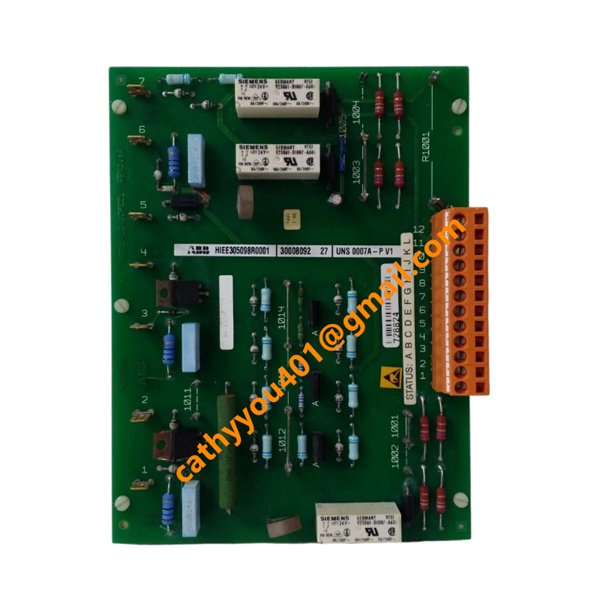

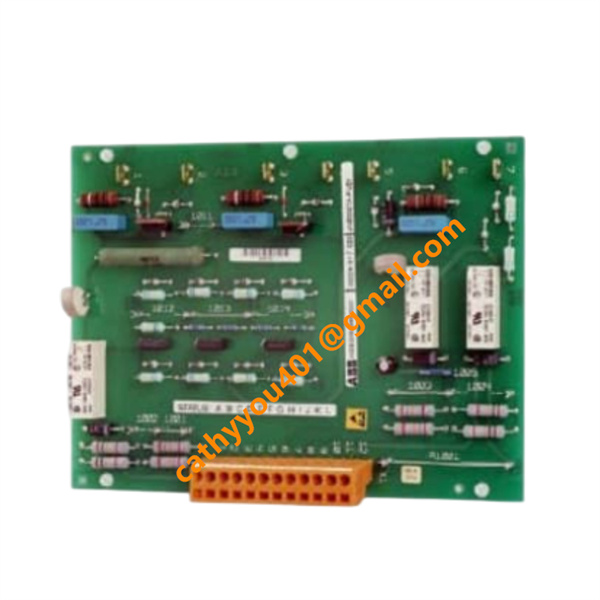

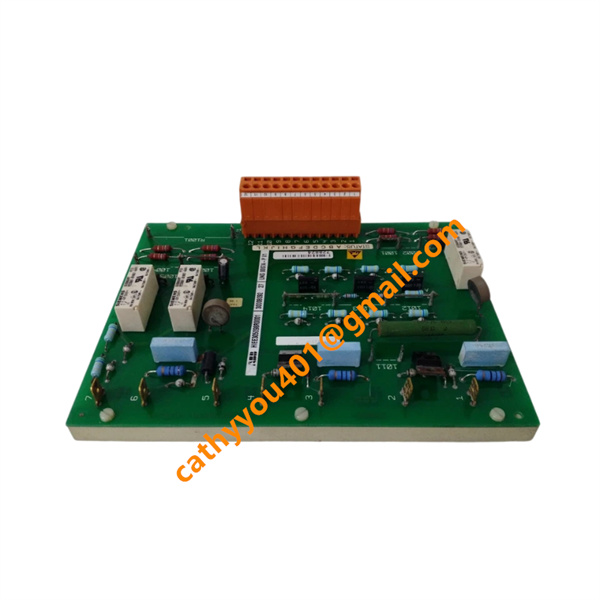

ABB UNS0007a-P.V1 HIEE305098R0001 DCS control module

• Brand
  ABB
• Model
  UNS0007a-P.V1
• Product Name
  Industrial Excitation Control Firing Board
• Country of Origin
  Sweden
• HS Code
  85389000
• Dimensions
  245mm (length)×190mm (width)×142mm (height)
• Weight
  0.51kg
• Operating Temperature
  -20°C to +70°C
• Storage Temperature
  -30°C to +80°C
• Part Number
  HIEE305098R0001
• Warranty
  12 month
• Product Status
  New and original

ABB UNS0007a-P.V1 HIEE305098R0001 Product Introduction and Technical Specifications

Core Technical Parameters

Input Parameters: The module operates on a rated 24V industrial standard supply voltage, fully compliant with mainstream industrial control power distribution systems. It accepts standard industry control signals, enabling stable reception and accurate decoding of command signals from upper-level programmable logic controllers and master control systems.

Output Parameters: The module delivers a maximum output current of 15A and a rated firing voltage up to 1400V. It features rapid dynamic response and superior voltage and current output precision, enabling precise excitation driving and power regulation for high-power industrial equipment. With a typical power consumption of 7W, it achieves efficient low-energy operation without compromising high-load output performance.

Communication Interface: Integrated with standard Modbus RTU protocol, the module enables reliable bidirectional data exchange and remote signal transmission with industrial control systems. It facilitates online system debugging, real-time operational data monitoring, and flexible parameter configuration for integrated automation systems.

Core Functions

The core functionality of this module is adaptive generator excitation regulation. It continuously monitors the operational status of generators and high-power converter units, and dynamically adjusts excitation current and output parameters in real time in response to system load variations, stabilizing the overall power system operation. The module executes precise gating and driving control for power conversion units, triggering power devices accurately to complete energy conversion and stable power delivery. Furthermore, it integrates real-time status monitoring capabilities, feeding back operational data and fault codes to the upper control system to enable proactive fault early warning and intelligent equipment condition monitoring.

Product Advantages

This module possesses multiple competitive advantages for industrial power control applications. Firstly, it provides exceptional control precision and fast dynamic response, effectively adapting to sudden load fluctuations and improving power system stability and power supply quality. Secondly, it achieves low power loss and high energy efficiency, reducing long-term operational energy costs for industrial systems. Thirdly, its wide-temperature tolerance and rugged industrial design enable stable operation in harsh working conditions, significantly lowering routine maintenance frequency and operational costs. Fourthly, it features excellent system compatibility with ABB full-series excitation and power conversion equipment, allowing for simple system integration, convenient installation and efficient commissioning. Lastly, its high operational reliability minimizes unplanned equipment downtime caused by excitation system faults, greatly improving the continuous production efficiency of industrial facilities.

Application Cases

This control module is widely deployed in critical industrial power and energy management scenarios. It serves as a core excitation regulation component for large-scale generator sets in thermal power plants, hydropower stations, and new energy power generation projects, undertaking precise excitation control to guarantee generator stable output. In heavy industries including metallurgy, chemical processing, and mining, it is applied in high-power industrial converters and energy feedback systems to realize reliable energy conversion and precise power regulation. Moreover, it is extensively used in heavy-duty industrial excitation machinery and high-power automated production equipment, providing stable and accurate drive and control support for various industrial systems that demand high precision and ultra-stable power excitation performance.

Product Characteristics

This module features robust industrial-grade reliability and comprehensive environmental adaptability. It adopts high-strength industrial PCB materials and optimized anti-interference structural design, delivering strong immunity to complex on-site electromagnetic interference. Equipped with high-precision signal acquisition and factory-calibrated output circuits, it minimizes signal distortion and ensures outstanding control accuracy. Each unit undergoes rigorous aging testing and multi-process quality inspection to guarantee stable performance and low failure rates. Additionally, it exhibits excellent temperature drift resistance, maintaining consistent control accuracy under fluctuating ambient temperatures and supporting non-stop long-duration industrial operation.

•
  UNS0007a-P.V1 HIEE305098R0001 DATASHEET
