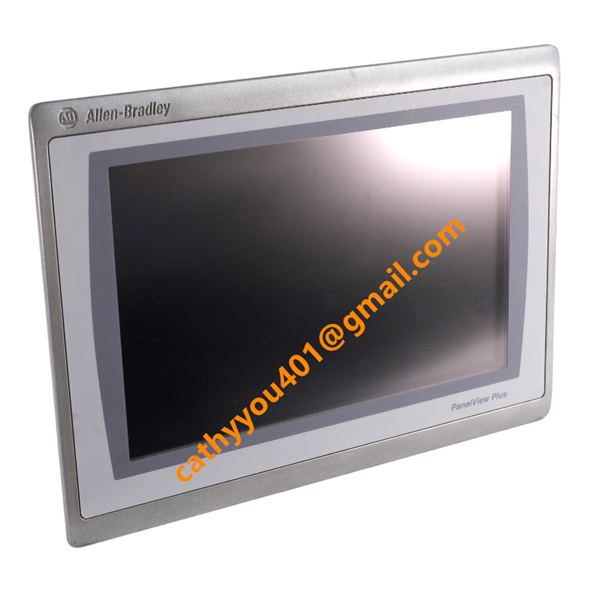

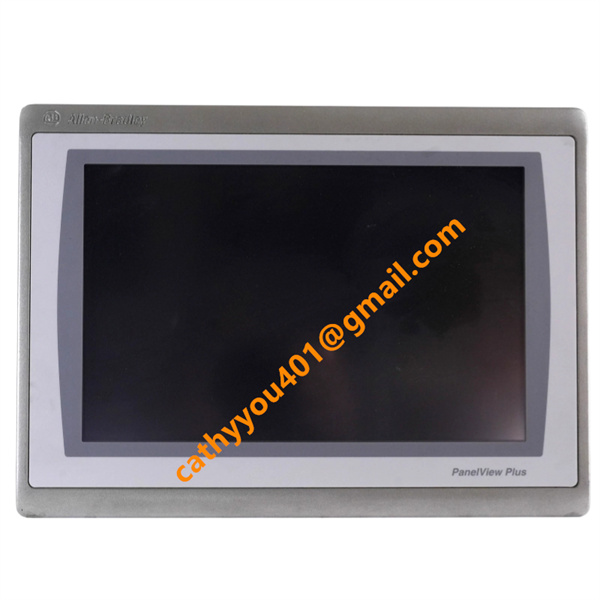

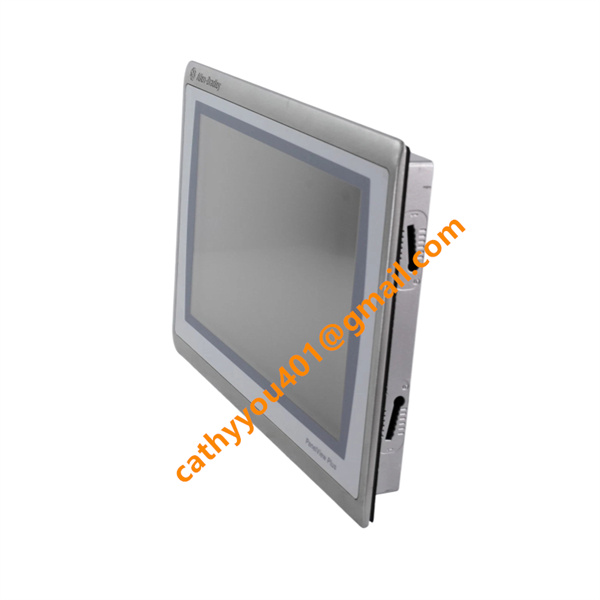

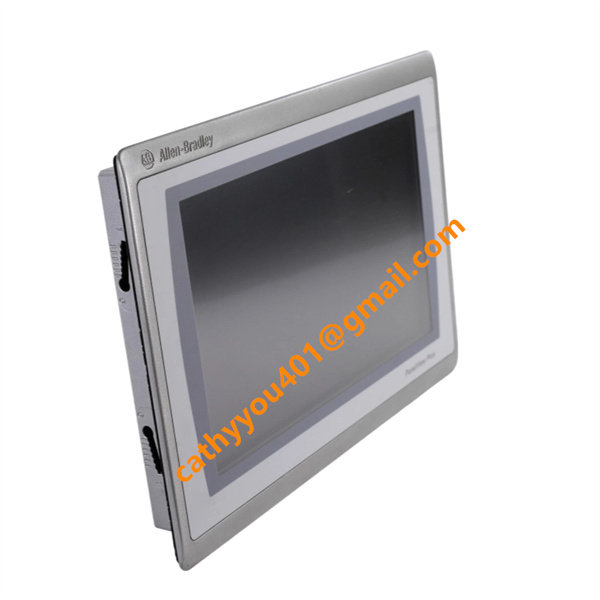

2711P-T12W22D9P Allen-Bradley DCS industrial HMI

• Brand
  Allen-Bradley
• Model
  2711P-T12W22D9P
• Product Name
  PanelView Plus 7 Performance 12.1-inch Touch HMI Terminal
• Country of Origin
  United States
• HS Code
  8537109190
• Dimensions
  340mm(W)×282mm(H)×69.6mm(D)
• Weight
  2.55kg
• Operating Temperature
  -15℃ to +50℃
• Storage Temperature
  -25℃ to +80℃
• Power Supply
  24VDC (18~30VDC)
• Warranty
  12 month
• Product Status
  New and original

Allen-Bradley 2711P-T12W22D9P Product Specification Document

Input Specifications

1.Power Input: 24VDC (18~30VDC), max power consumption 50W / 2.1A@24VDC

2.Touch Input: 8-wire analog resistive touch screen, 10~110g trigger force

3. Communication Input: Dual EtherNet/IP ports supporting DLR ring network; RS232 serial port; dual USB host ports

4.Program Download Input: USB upload/download for HMI project files

5.External signal input: Remote switch trigger input for screen lock & alarm reset

Output Specifications

1.Display Output: 1280×800 WXGA TFT LCD, 18-bit true color graphic display

2.Communication Output: EtherNet/IP data exchange with ControlLogix/CompactLogix PLC

3.Alarm Output: Screen pop-up alarm, buzzer sound prompt, event record output

4.Data Export Output: USB data export for production log and alarm history

5.Network expansion output: Ethernet cascading for multi-HMI networking

Main Functions

1.Real-time process monitoring: Dynamic display of equipment operating parameters, running status and analog curve

2.On-site manual operation: Touch screen control for start/stop, speed adjustment and mode switching

3.Alarm management: Real-time fault alarm, alarm classification filtering and historical alarm record query

4.Parameter setting: Online modification of PLC control parameters, recipe storage and calling

5.Data recording: Production running log, power consumption and yield data automatic storage

6.Multi-user authority management: Multi-level password authorization to prevent unauthorized operation

7.Network interconnection: DLR redundant Ethernet networking for multi-station HMI synchronous monitoring

8.Remote maintenance: Support remote desktop viewing and online program uploading

Product Advantages

1.Strong compatibility: Perfect matching Rockwell full-series PLC controllers, seamless EtherNet/IP communication

2.High visual performance: 16:10 widescreen high resolution, clearer multi-window layout display

3.Stable industrial durability: Resistive touch screen resistant to oil, dust and frequent operation

4.Redundant network design: DLR ring Ethernet avoids single cable break network outage

5.Rich software function: Built-in PDF viewer, media player and file browsing tool

6.Compact embedded structure: Panel flush mounting saves cabinet space, conformal coating optional for harsh workshop

7.Long-term reliable operation: Mature hardware architecture, low failure rate and easy on-site maintenance

Application Cases

1.Automotive Manufacturing: Assembly line, stamping and welding workshop production monitoring & operation HMI

2.Packaging & Printing Machinery: Multi-axis servo equipment parameter monitoring and running control

3.Food & Beverage Industry: Filling, sterilization and packaging production line centralized operation terminal

4.Water Treatment Industry: Sewage pumping station, dosing system real-time monitoring and interlock operation

5.Metallurgy & Mining: Conveying equipment, crushing unit running state monitoring

6.Petrochemical Industry: Small unit auxiliary equipment local operation and fault alarming

7.New Energy Equipment: Lithium battery winding, slitting equipment on-site man-machine control terminal

Core Characteristics

1.Operating Temperature: 0℃ ~ +55℃ continuous operation; storage temperature -20℃~+70℃

2.Protection Grade: Front panel IP65 / NEMA 4X; rear cabinet side IP20

3.Display Parameter: LED backlight, service life ≥50000 hours at half brightness

4.Hardware Configuration: 512MB RAM, 512MB non-volatile storage (80MB user available memory)

5. System Platform: Windows CE Pro OS, support FactoryTalk View ME configuration software

6. Certification: UL, CE, cULus, CCC, RoHS industrial certification

7. EMC Performance: Comply with IEC61000 industrial anti-interference standard
