Description
-
BrandBently Nevada
-
Model3500/15 106M2686-02
-

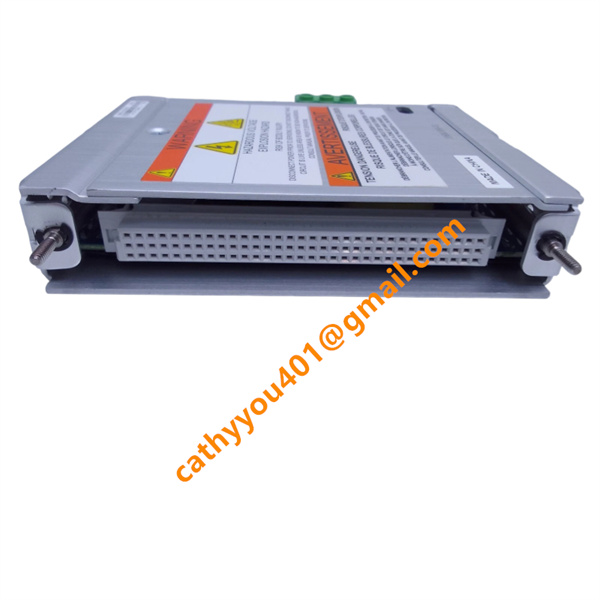

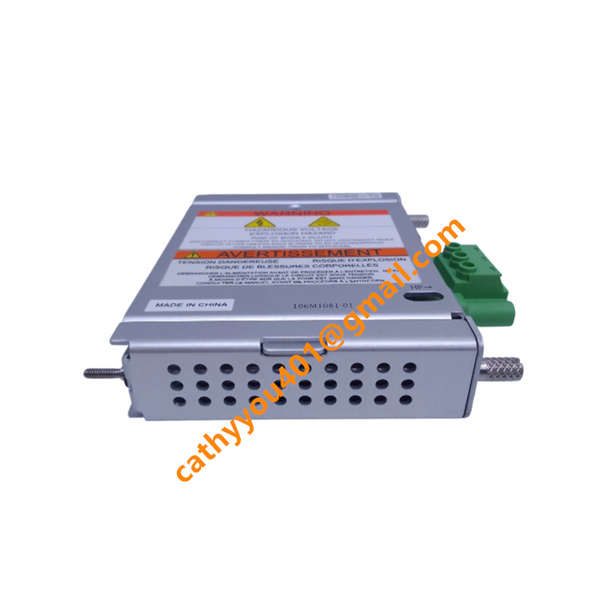

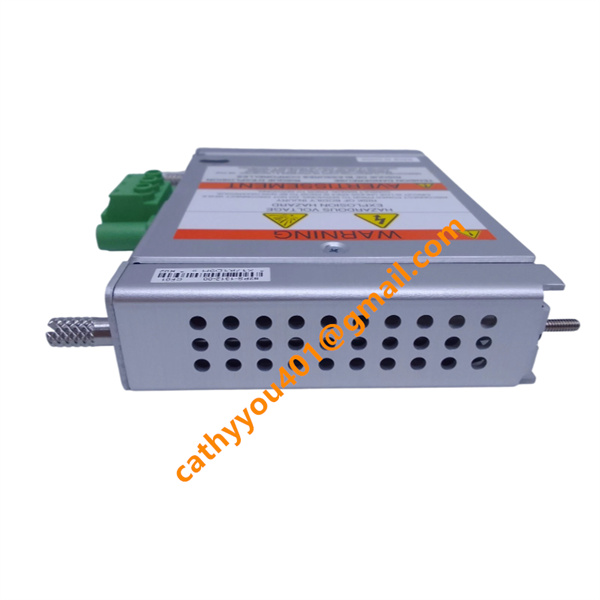

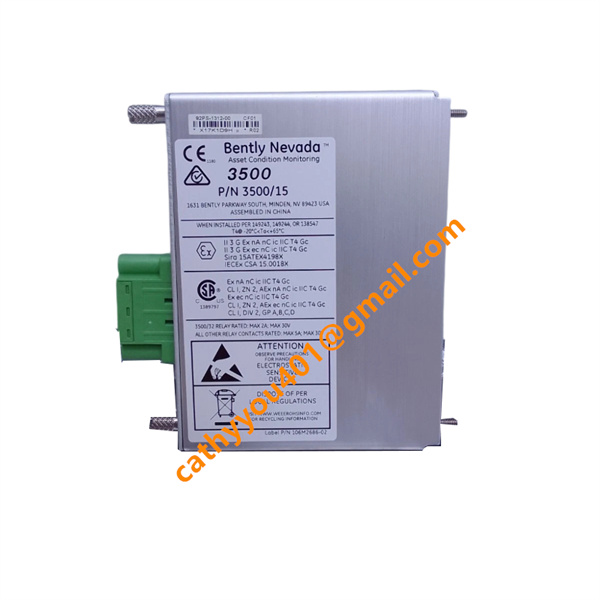

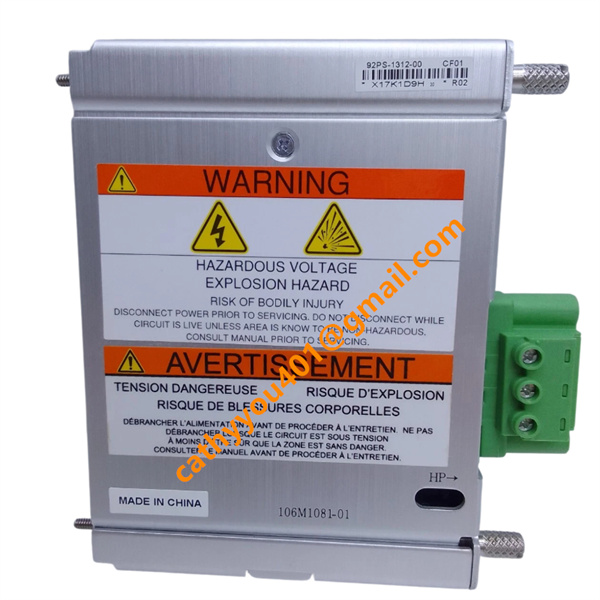

Product Name3500/15 Power Supply Module
-
Country of OriginUnited States of America
-
HS Code8504409990
-
Dimensions254 mm (H)×48.3 mm (W)×254 mm (D)
-
Weight1.8 kg
-
Operating Temperature-20℃ TO +85℃
-
Storage Temperature-30℃ TO +40℃
-
Power Supply+24 VDC / 3 A
-
Warranty12 MONTH
-
Product StatusNEW AND ORIGINAL
Bently Nevada 3500/15 106M2686-02 Product Introduction & Technical Specifications
Technical Specifications
Input: 85–264 VAC, 47–63 Hz; 100–300 VDC
Output: +5 VDC / 15 A; +24 VDC / 3 A (isolated, regulated)
Power Consumption: Max 180 W
Key Characteristics:
Hot-swappable; redundant power operation support;
built-in over-voltage, over-current and short-circuit protection;
industrial-grade EMC compliance;
wide input voltage range;
high efficiency power conversion;
rack-mount design for 3500 series chassis
Core Functions:
Provides regulated DC power for all 3500 rack internal modules;
monitors power health status; enables redundant power backup to avoid single-point power failure; supports system power fault diagnosis and alarm output
Product Advantages:
1. Redundant power configuration improves system reliability for critical machinery protection
2. Hot-swap design allows module replacement without shutting down the entire monitoring rack
3. Wide input voltage range adapts to complex industrial power supply environments
4. Strict industrial EMC and surge protection ensure stable operation in harsh industrial sites
5. Seamless compatibility with all Bently Nevada 3500 series monitoring modules
Application Cases:
Widely used in condition monitoring and protection systems for gas turbines, steam turbines, centrifugal compressors, axial compressors, large-size pumps, generators and other critical rotating equipment in power generation, oil & gas, petrochemical, metallurgy and heavy-duty industrial process industries.
