Description
-
BrandBently Nevada
-
Model3500/22M-01-01-01
-

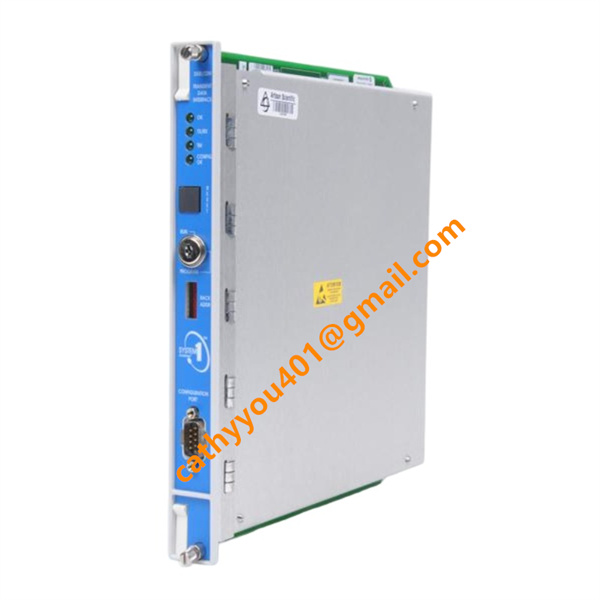

Product Name3500/22M Transient Data Interface (TDI) Module
-
Place of OriginUnited States
-
HS Code8537101190
-
Dimensions241.3mm×24.4mm×241.8mm
-
Weight1.1 kg (2.5 lbs)
-
Operating Temperature-30 °C to +65 °C (-22 °F to +149 °F)
-
Storage Temperature-40 °C to +85 °C (-40 °F to +185 °F)
-
Power Supply24 VDC
-
Warranty12 month
-
Product StatusNew and original
1. Main Module
2. 10 Base-T/100 Base TX (copper) Ethernet I/O Module
3. 100 Base-FX (fiber optic) Ethernet I/O Module
4. LEDs indicate operating status of the module
5. Hardware Switches
6. USB Configuration Port for configuring or retrieving
machinery data
7. OK Relay indicates the OK status of the overall rack
8. Signal Common external grounding terminal
9. RJ-45 Ethernet Port for configuration and data collection
10. System Contacts
11. Fiber Optic Ethernet Port for configuration and data
collection
Figure 1: Front and Rear View of the Transient Data Interface
3500/22M-01-01-01 Description
The Bently Nevada 3500/22M-01-01-01 Transient Data Interface (TDI)
is the interface between the 3500 monitoring system and
compatible software (System 1 Condition Monitoring and
Diagnostic software and 3500 System Configuration
software). The TDI combines the function of a 3500/20 Rack
Interface Module (RIM) with the data collection capability of a
communication processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a
3500 rack. It interfaces with M series monitors (3500/40M,
3500/42M, etc.) to continuously collect steady state and
transient dynamic (waveform) data and pass this data
through an Ethernet link to the host software. Refer to the
Compatibility section at the end of this document for more
information.
Static data capture capability is standard with the TDI.
However, using an optional Channel Enabling Disk will allow
the TDI to capture dynamic and high-resolution transient
data as well.
