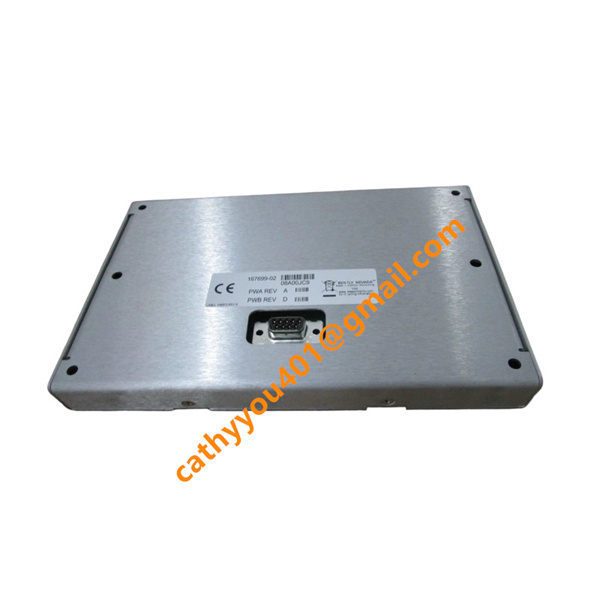

Bently Nevada 1900/65A 167699-02 Display Module

• Brand
  Bently Nevada
• Model
  1900/65A 167699-02
• Product Name
  Operator Interface Display Module / HMI Unit
• Country of Origin
  United States
• HS Code
  8537109190
• Dimensions
  196.9mm×149.4mm×32.8mm
• Weight
  0.40 kg to 0.50 kg (0.89 lbs to 1.10 lbs)
• Operating Temperature
  -20°C to +70°C (-4°F to +158°F)
• Storage Temperature
  -40°C to +85°C (-40°F to +185°F)
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Bently Nevada 1900/65A 167699-02 Technical Specifications

Functional Characteristics & Performance (Input / Output)

Power Input Supply: Powered directly through the 1900/65A monitor host unit or via a dedicated 24 V DC connection.

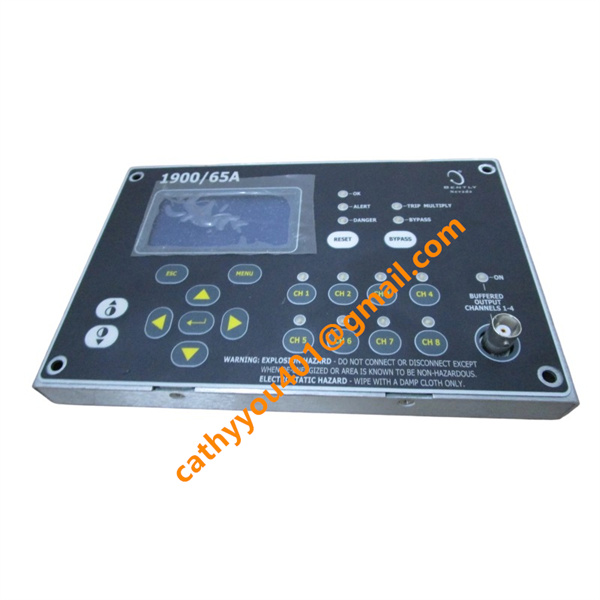

Display Interface Output: Backlit alphanumeric liquid crystal display (LCD) designed for high contrast and clear legibility under low-light or direct industrial indoor glare.

Control Inputs: Multi-button tactile front navigation membrane keyboard for browsing menus, resetting latching relays, and viewing multi-channel configurations.

Signal Integration Capacity: Communicates dynamically with the host monitor to render real-time telemetry from up to 8 independent input channels (4 dynamic vibration/speed sensors and 4 static temperature RTD/Thermocouple transmitters).

Bently Nevada 1900/65A 167699-02 Product Advantages

Optimized Cost-to-Wiring Layouts: Allows field technicians to place the actual 1900/65A monitor close to the rotating machinery to shorten expensive sensor cable runs, while routing the 167699-02 display safely to an easily accessible, operator-friendly viewing area.

At-a-Glance Field Diagnostics: Eliminates the necessity of hooking up a laptop or connecting to a centralized plant DCS simply to check a local bearing temperature or reset an isolated alarm trap.

Solid-State Industrial Resilience: Completely fan-less design with heavy internal component potting, shielding sensitive internal microprocessors against electromagnetic noise (EMI), voltage spikes, and structural factory floor vibrations.

Streamlined Maintenance Homing: Provides clear fault codes, channel status readouts, and power rail diagnostics natively on screen, allowing maintenance crews to safely troubleshoot hardware loop issues on-site.

Bently Nevada 1900/65A 167699-02 Wiring & Connection Methods

Interconnect Wiring: Connected to the main monitor module via a dedicated ribbon cable when direct-attached, or via standard industrial shielded twisted-pair communication cable when deployed in remote configurations.

Maximum Remote Cable Length: Supports reliable, un-boosted remote signal transmission at distances up to 75 meters (250 feet).

Terminal Types: Plug-in compression terminal blocks positioned securely on the rear housing to ensure high-density, vibration-resistant field connections.

•
