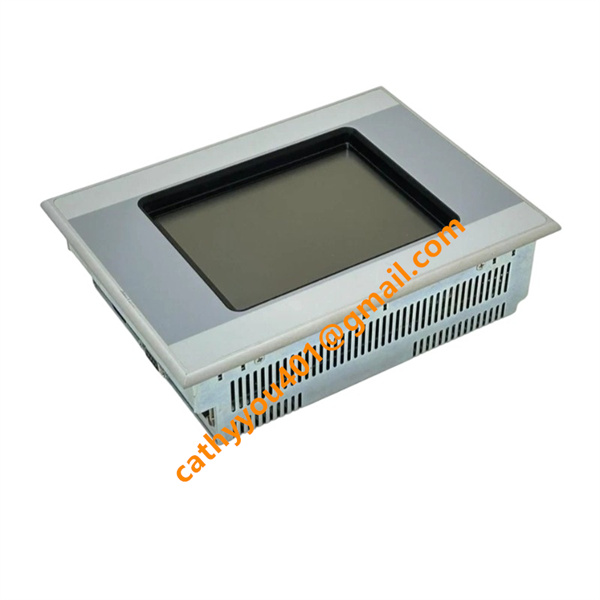

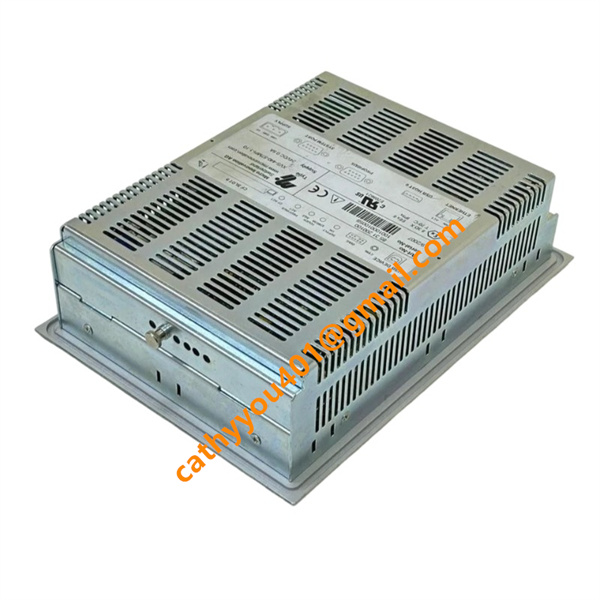

Eaton XVS-440-57MPI-1-10 HMI Touch Panel

• Brand
  Eaton
• Model
  XVS-440-57MPI-1-10
• Product Name
  HMI Touch Panel / Visualization Terminal with Integrated Control
• Country of Origin
  Germany
• HS Code
  85371091
• Dimensions
  212mm x156mmx53mm(W x H x D)
• Weight
  1.1 kg
• Operating Temperature
  0°C to +50°C
• Storage Temperature
  -20°C to +60°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Eaton XVS-440-57MPI-1-10 Technical Specifications

Input & Display

Input Method: Analog resistive touch screen (matrix touch functionality)

Display Size: 5.7 inches

Display Type: TFT Color Display (supporting up to 256 colors)

Resolution: 320 x 240 pixels (QVGA)

Power Input: 24 V DC (nominal), acceptable range 20.4 V DC to 28.8 V DC

Output & Communication Interfaces

MPI/PPI/Profibus Interface: 1x Sub-D 9-pin female connector for high-speed PLC communication

Serial Interface: 1x RS232 (Sub-D 9-pin male) for point-to-point data transmission

Ethernet Interface: 1x RJ45 (10/100 Mbit/s) for network integration and data exchange

USB Interface: 1x USB Device / Host for external memory or configuration transfer

Eaton XVS-440-57MPI-1-10 Key Product Advantages

All-in-One Compact Solution: Integrates high-quality visualization and control capability within a space-saving 5.7-inch frame, reducing panel footprint.

Robust Communication: Equipped with MPI, Profibus, and Ethernet interfaces natively, ensuring seamless integration into Siemens and Eaton automation architectures.

Industrial-Grade Durability: Designed with an IP65-rated front panel to protect against dust and water splash, making it highly reliable on harsh factory floors.

Intuitive User Experience: The responsive resistive touchscreen paired with a vibrant TFT color display offers operators precise control and clear status visibility.

Flexible Expansion: Supports external memory cards and USB interfaces for effortless software updates, data logging, and project backups.

Eaton XVS-440-57MPI-1-10 Wiring & Connection Method

Power Connection: Screw-terminal block (detachable, plug-in type) for secure power delivery.

Communication Wiring: Shielded twisted-pair cables recommended for MPI/Profibus and RS232 to minimize electromagnetic interference. Grounding terminal must be connected to the central functional earth (FE) system.

•
