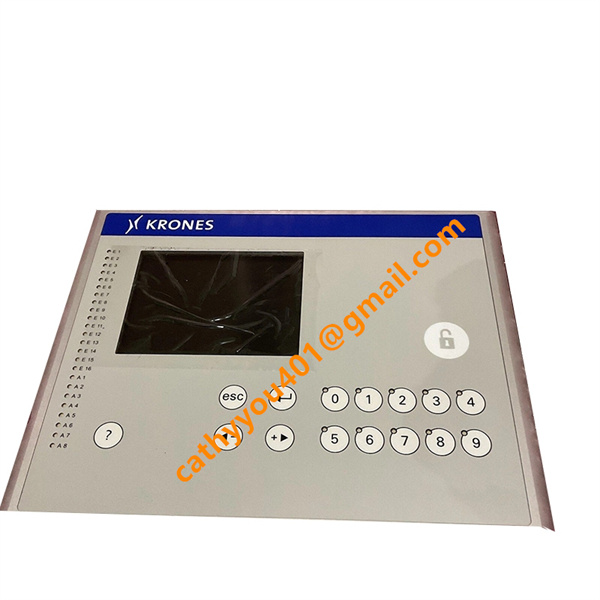

EATON 4PP065.0571-K57 5.7-inch Color TFT LCD display

• Brand
  EATON
• Model
  4PP065.0571-K57
• Product Name
  5.7-inch Color TFT LCD display
• Country of Origin
  Austria
• HS Code
  8537101190
• Dimensions
  145 mm *203 mm*56.5 mm
• Weight
  3.2kg
• Operating Temperature
  0°C to +50°C (32°F to +122°F)
• Storage Temperature
  -25°C to +80°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

4PP065.0571-K57 Communication Protocols & Wiring Specifications

Interface Layout & Connectors

The 4PP065.0571-K57 HMI is equipped with segmented isolated port arrays on its rear panel, which integrate high-speed bus interfaces and simplify field wiring deployment on production sites:

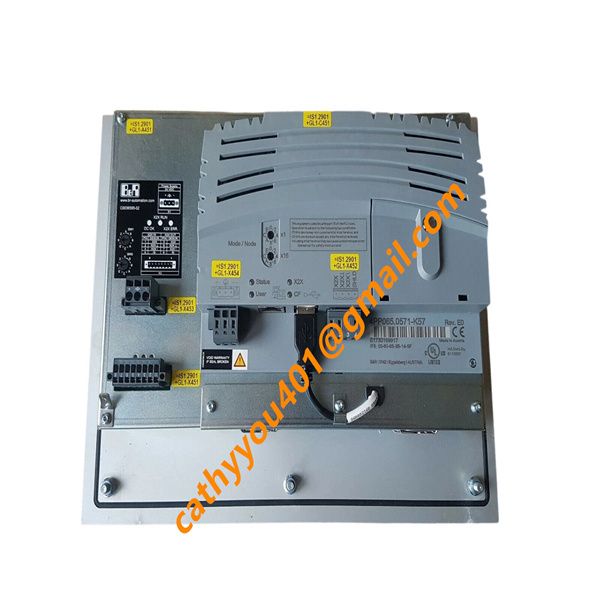

Ethernet Port

1-channel RJ45 Fast Ethernet interface supporting 10/100 Mbps, driven by an onboard Intel 82551ER communication controller. It is applied for upper-level TCP/IP host communication, Modbus TCP data interaction and remote parameter modification.

X2X Link Port

1-piece 4-pin male multi-drop terminal block. The proprietary X2X Link fieldbus delivers ultra-low-latency extension capability, supporting daisy-chained connection and synchronous operation of distributed B&R remote I/O modules via twisted-pair cables.

USB Interfaces

Two USB 2.0 Type-A host ports, compatible with diagnostic USB flash disks, external barcode scanners and human-machine peripherals including keyboards and mice.

Wiring & Protocol Installation Standards

Power Connection Requirements

Power is wired through a detachable screw-clamp terminal block available in 2-pin and 3-pin configurations. To mitigate common-mode interference, ground cables with a wire gauge no less than 14 AWG shall be routed with the shortest possible distance to the cabinet’s main grounding busbar.

Shielding Requirements for Communication Cables

All Cat5e/Cat6 Ethernet cables and X2X Link communication wires must adopt braided shielded cabling. The shielding layer needs to be reliably grounded at the cable entry gland of the control cabinet to reduce electromagnetic interference in industrial environments.

4PP065.0571-K57 Display & Core Processor Specifications

Display System

Display Panel: 5.7‑inch color TFT LCD industrial display

Native Resolution: 320 × 240 QVGA

Color Performance: Supports up to 262K display colors, equipped with high-efficiency and long-lifespan LED backlight for stable brightness in long-term industrial operation

Input Configuration: Analog resistive touchscreen combined with integrated front membrane keys, enabling dual-mode human-machine operation

Core Processing Unit

Main Processor: AMD Geode LX800 industrial embedded CPU, 500 MHz clock speed, 32-bit x86 architecture for stable industrial-grade computing

Cache Resources: 128 KB L1 cache + 128 KB L2 cache, ensuring fast program response and smooth system operation

Cooling Solution: Full passive heat dissipation, completely fanless and zero mechanical moving parts to avoid dust accumulation and mechanical failure

Local Storage Interface

Application Storage: Built‑in 1 × Type I CompactFlash (CF) slot, dedicated for system boot files, program firmware, local process recipes and onsite data storage

4PP065.0571-K57 Product Key Advantages

Hybrid Dual HMI Input Design

This unit integrates high-sensitivity analog touch panel and physical membrane pushbuttons as a dual-control solution. Unlike conventional touch-only HMIs that fail easily under harsh conditions, the combined input structure maintains stable full operation in greasy, humid and oil-spattering production environments.

Fanless Sealed Industrial Construction

Designed without internal cooling fans, the entire enclosure adopts a fully sealed structure. It effectively blocks fine dust, conductive fibers and ambient moisture from penetrating into the main circuit board, delivering superior environmental adaptability for continuous industrial operation.

High-Stability Real-Time Expansion Performance

Built-in X2X Link protocol enables the HMI to serve as a primary master node for local I/O modules. It realizes millisecond-level cyclic data refresh without occupying excessive computing resources of the main controller.

Ultra-Compact Mounting Dimension

The rear installation depth is merely 56.5 mm. This slim form factor supports flexible installation inside shallow machine cabinets, articulated operator swing arms and mini control consoles to save valuable cabinet space.

Superior Ingress Protection Compliance

The front panel complies with NEMA 4X and IP65 protection standards. It withstands frequent high-pressure water washdown procedures, making it ideal for food processing, pharmaceutical packaging and heavy chemical manufacturing workshops.

•
