EATON XV-303-15-C02-A00-1B DCS HMI-PLC unit

• Brand
  EATON
• Model
  XV-303-15-C02-A00-1B
• Product Name
  XV300 Series 15.6-inch Integrated HMI-PLC Touch Control Panel with PROFIBUS DP & Dual Ethernet
• Country of Origin
  Czech Republic
• HS Code
  8537209000
• Dimensions
  403.7mm×254mm×76.6mm
• Weight
  3.9 kg
• Operating Temperature
  0 ℃ ~ +60 ℃
• Storage Temperature
  -30 ℃ ~ +70 ℃
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

EATON XV-303-15-C02-A00-1B Complete Product Specification
Core Technical Parameters

1. Rated Working Voltage: 24 VDC; Allowable fluctuation range: 18 VDC ~ 31.2 VDC

2. Typical Operating Current: 0.79 A @ 24 VDC; Maximum total power consumption: 19.1 W

3. Display Specification: 15.6-inch TFT anti-glare widescreen, resolution 1366 × 768 (WXGA), 24-bit true color

4. Touch Type: PCT projected capacitive multi-touch touchscreen

5. Built-in Memory: 1 GB system RAM + non-volatile storage, expandable via SD card slot

6. Communication Interfaces:- 2 × 10/100 Mbps Ethernet (C02 configuration)

- 1 × PROFIBUS DP, 1 × CAN bus, 1 × RS232, 1 × RS485

- 2 × USB 2.0 (Host + Device)

7. Protection Class: Front panel IP65, rear housing IP40

8. Relative Humidity: 5% – 95% non-condensing

9. Installation Mode: Front panel mounting, applicable for 1.5mm standard cabinet sheet metal

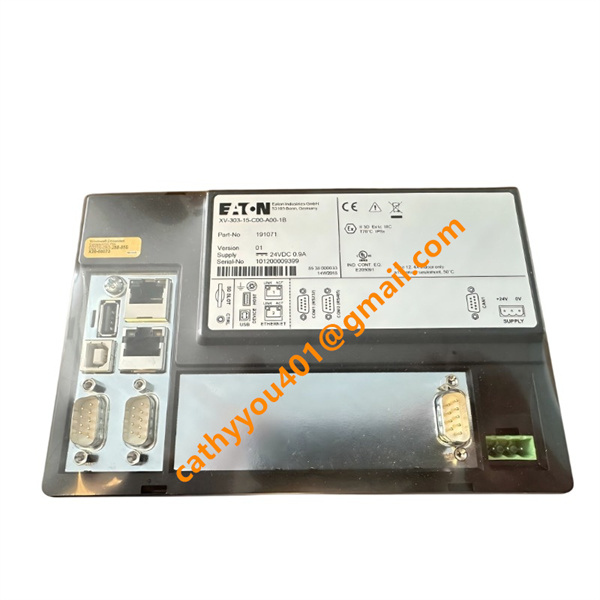

EATON XV-303-15-C02-A00-1B Standard Wiring & Connection Method

1. Power Supply Wiring

Positive terminal: Connect stabilized 24VDC industrial control power positive pole;

Negative terminal: Connect power negative pole and cabinet protective ground simultaneously;

Use shielded DC cables, separate power wiring from signal and communication wiring to avoid interference.

2. Ethernet Communication Wiring

Two RJ45 Ethernet ports can be configured as redundant network or independent control/monitoring network;

Adopt CAT5e/CAT6 shielded twisted pair cables, single-point grounding for shielding layer at cabinet side only.

3. Field Bus Wiring

PROFIBUS DP: Use dedicated PROFIBUS shielded cable, set terminal resistance at both ends of the bus;

CAN bus: CANopen wiring with twisted shielded cable, strictly follow bus topology;

RS485/RS232: Connect to peripheral instruments or auxiliary equipment communication terminals.

4. USB & SD Card Wiring

USB Host port for external mouse, keyboard, data U disk; USB Device port for program download from PC;

SD card slot for project backup, firmware upgrade and data logging storage.

5. Wiring Precautions

All wiring operations must be carried out with the HMI-PLC completely powered off;

High-current power cables and weak signal communication cables must be routed separately;

After wiring, configure IP addresses, bus station numbers and PLC programs before formal power-on operation.

EATON XV-303-15-C02-A00-1B Product Advantages

1. Integrated HMI visualization + CODESYS PLC control dual functions, eliminating separate PLC hardware, greatly simplifying cabinet layout and wiring cost;

2. Dual Ethernet independent network design, supporting network redundancy or separated control network and monitoring network, improving system stability;

3. Fanless fully enclosed passive heat dissipation structure, no mechanical wearing parts, long service life and low maintenance rate;

4. High-end PCT capacitive multi-touch, sensitive operation, resistant to water splash and industrial dust interference;

5. Rich native industrial bus interfaces, seamlessly connected with mainstream PLCs, drives and field equipment without additional gateways;

6. Pre-licensed VisualDesigner runtime software, direct project downloading and operation without extra authorization fees;

7. Die-cast aluminum rear shell, strong anti-vibration and electromagnetic interference performance, adapted to workshop vibration environments;

8. Complete global Eaton technical support and spare parts supply chain, supporting marine and hazardous area industrial projects.

•
