Emerson FloBoss S600+ DCS Flow Computer

• Brand
  Emerson
• Model
  FloBoss S600+
• Product Name
  FloBoss S600+ Flow Computer
• Place of Origin
  Mexico
• HS Code
  85437099
• Dimensions
  84.5 mm × 270 mm × 303.8 mm
• Weight
  4.3 kg
• Operating Temperature
  -10 °C ~ +60 °C
• Storage Temperature
  -40 °C ~ +70 °C
• Power Supply
  20 V DC to 32 V DC
• Warranty
  12 month
• Product Status
  Mew and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Main Power Supply

Nominal operating voltage: 24–30 VDC

Allowable operating range: 20 VDC ~ 32 VDC

Maximum power consumption: 48 W

Built-in reverse polarity protection and overvoltage protection

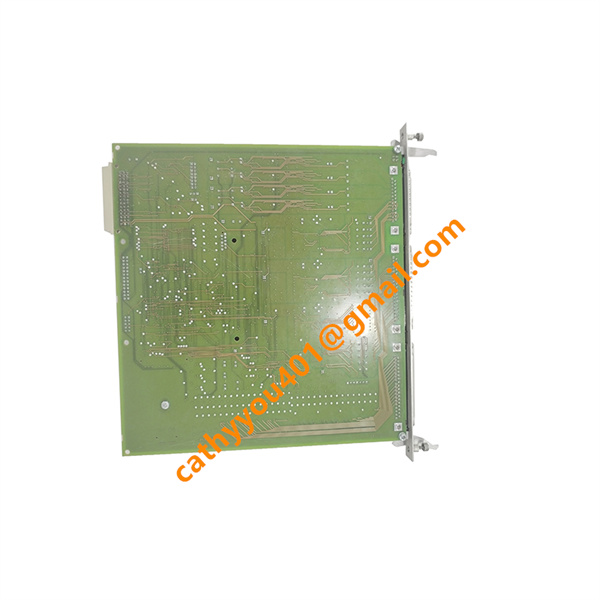

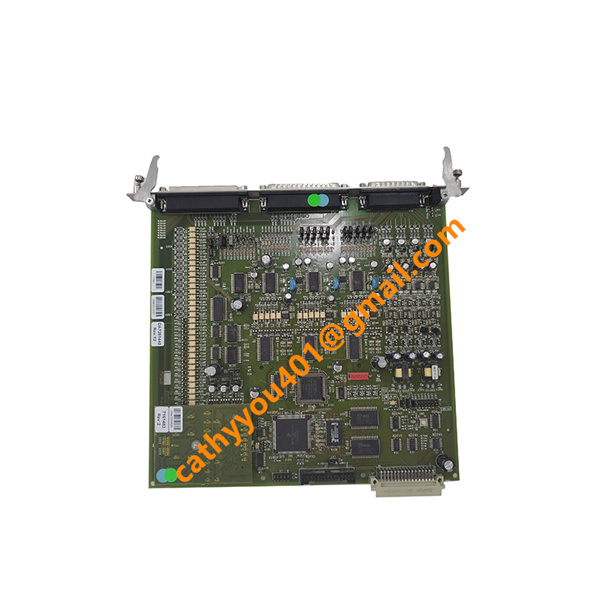

Analog Inputs (AI, 12 channels on standard P144 I/O module, opto-isolated)

Channels 1–10: Configurable via jumper, support 0–5 VDC / 1–5 VDC voltage or 0–20 mA / 4–20 mA current

Channels 11–12: Current input only, 0–20 mA / 4–20 mA

Full-scale range: 0–5.25 VDC or 0–22 mA

Input impedance: >10 MΩ (voltage mode); ~250 Ω (current mode)

A/D resolution: 24-bit

Accuracy: ±0.005% of full scale at 23°C

Common-mode withstand voltage: ±50 VDC relative to chassis ground

Rejection ratio >100 dB at 50/60 Hz

Analog Outputs (AO, 4 channels, opto-isolated)

Signal type: Active current output, 4–21 mA

D/A resolution: Minimum 12 bit

Typical accuracy: ±0.1% FS at 23°C

Maximum loop resistance: 650 Ω (internal isolated supply); up to 1000 Ω with external 24 V power

Ambient drift: 20 ppm/°C

Maximum withstand voltage on output terminals: 42 VDC

Digital Inputs (DI, 16 channels)

Input type: Sinking/sourcing compatible opto-isolated discrete input

High level threshold: ≥12 VDC

Low level threshold: ≤5 VDC

Supported supply range: 12–30 VDC

Typical channel input current: 3–6 mA

Internal current limiting protection for each channel

Digital Outputs (DO, 12 channels, open collector)

Output structure: Opto-isolated open collector sink output

Maximum continuous current per channel: 100 mA @ 24 VDC

Maximum allowable external supply voltage: 32 VDC

Saturation voltage: Max 1.5 V at 100 mA

Switching frequency limit: ≤0.5 Hz

Note: Freewheeling diode required for inductive loads such as relay coils

Pulse Input & Frequency Input

4 single / 2 dual turbine pulse inputs; 3 frequency density inputs

Input signal amplitude: Minimum 3 V peak-to-peak; max 12 V peak-to-peak

Frequency range: 0 ~ 10 kHz

Internal limited input current: 3 mA maximum

Measurement resolution: 5 ns; frequency accuracy: 10 ppm

Pulse Outputs

5 standard pulse output channels plus 1 raw pulse output for prover operation

Opto-isolated open collector

Max channel current: 100 mA

Frequency range: 0–100 Hz

RTD / PRT Temperature Inputs (3 channels)

Support 4-wire Class A PRT conforming to EN 60751

Compatible with DIN 0.00385 and American standard 0.003926 curves

Measuring range: -100°C ~ +200°C

Communication Data I/O

Multiple serial ports (RS232, RS422/485) and Ethernet port

Support Modbus TCP, Modbus RTU, DNP3

Optional HART module supports up to 50 HART field transmitters for multi-drop data input/output

Product Positioning

The FloBoss S600+ is a panel-mounted high-precision fiscal flow computer for custody transfer measurement of gas, crude oil, refined fuels, LPG and NGL, applicable to pipeline metering, batch loading and meter proving.

Multi-stream Measurement Capacity

It supports mixed liquid and gas metering, handling up to 10 flow streams, 6 dual pulse inputs and maximum 2 independent metering stations. Compatible with Coriolis, ultrasonic, turbine, PD, orifice, Venturi, Annubar, V-Cone and other mainstream flow primary elements.

High-precision Computing Performance

Equipped with a hardware floating-point processor and adopts 64-bit double-precision algorithms for flow calculation. With 24-bit high-resolution analog inputs, it achieves measurement accuracy of ±0.005% full scale at 23°C.

Global Industry Standard Support

Built-in international calculation specifications: AGA, ISO, GPA, GERG, GOST for gas; API, ASTM for liquids, satisfying legal metrology requirements for fiscal settlement.

Secure Data Storage

Flow totals are stored via triple redundant Tri-reg memory to avoid data loss. Large non-volatile memory retains historical reports, up to 50,000 event logs and alarm records, supporting complete audit trail and anti-tamper functions.

Rich Isolated I/O Resources

Integrates analog inputs/outputs, digital inputs/outputs, pulse/frequency inputs, RTD temperature inputs and pulse outputs. All signal circuits feature galvanic isolation for anti-interference capability.

Flexible Communication Interfaces

It is fitted with Ethernet, RS232 and RS422/RS485 ports, supporting Modbus TCP, Modbus RTU and DNP3 protocols. The built-in dual HART master can connect up to 50 HART transmitters for multi-drop signal collection.

Local Human-machine Interface

Equipped with multi-line LCD and physical keypad, enabling on-site viewing of real-time data, flow accumulations, alarms and parameters without upper computer support.

System Compatibility

Fully backward compatible with FloBoss S600. Existing configuration files and Config600 software can be reused to simplify equipment upgrading and replacement.

Environmental & Safety Specifications

Operating temperature range: -10°C ~ +60°C. IP66 / NEMA 4X enclosure is optional. It meets explosion-proof standards and satisfies SIL 2 functional safety requirements for metering systems.

Power Supply Performance

Stably operates within 20 VDC ~ 32 VDC input voltage range. Built-in reverse polarity, overvoltage and overcurrent protection improves field operation reliability.
