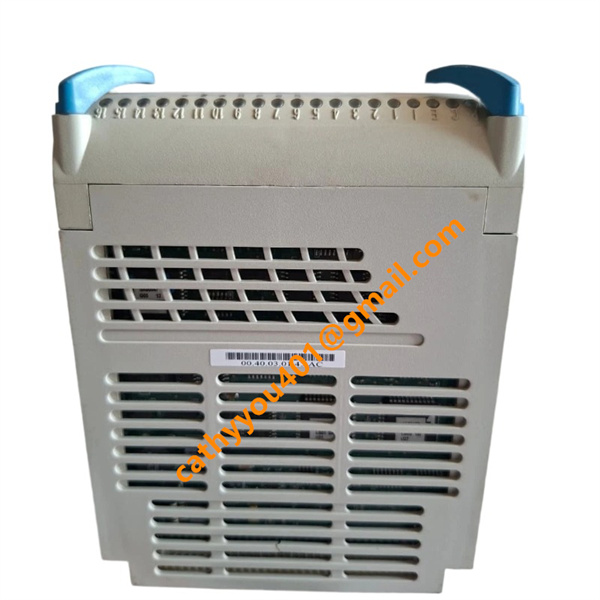

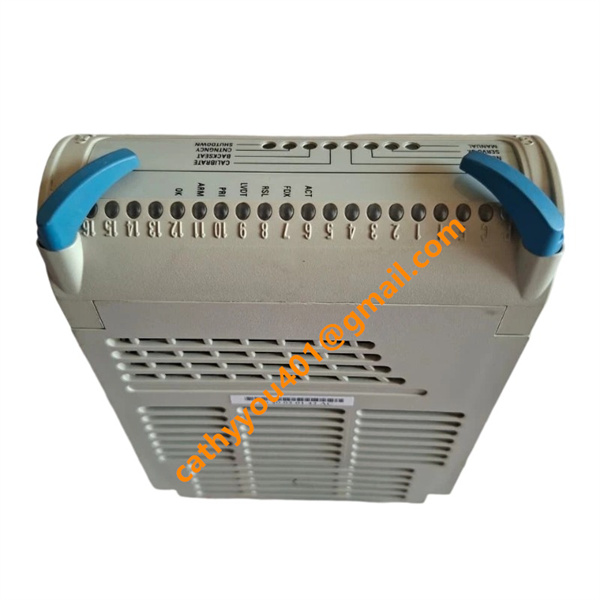

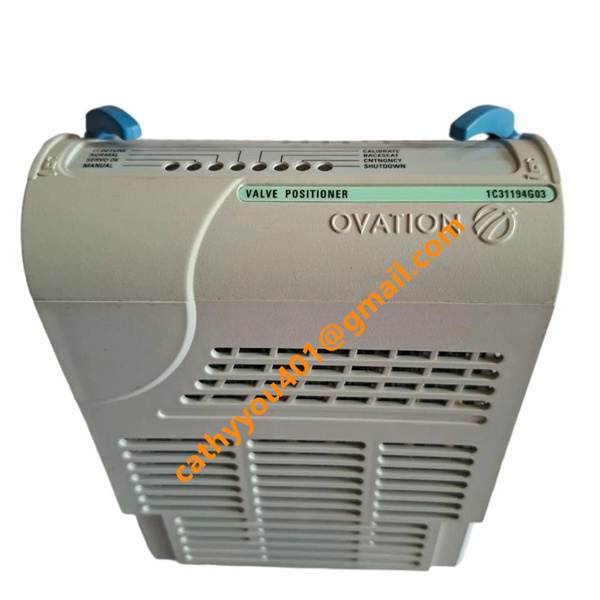

Emerson Ovation 1C31194G03 Electronics Module

• Brand
  Emerson Ovation
• Model
  1C31194G03
• Product Name
  Valve Positioner Electronics Module / Valve Positioner Personality Module
• Country of Origin
  United States
• HS Code
  8538903000
• Dimensions
  15.0 cm High x 10.0 cm Wide x 5.0 cm Depth
• Weight
  0.75 kg
• Operating Temperature
  0°C to +50°C (32°F to +122°F)
• Storage Temperature
  -40°C to +80°C (-40°F to +176°F)
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Emerson Ovation 1C31194G03 Input & Output Parameters

Module Power Supply: Standard 24 V DC internal operating voltage. Alternate configurations can accommodate 120 V AC source lines depending on backplane carrier assignment.

Analog Input Signal Range: Processes standard 4-20 mA DC control command signals sent directly from the main Ovation OCR series controllers.

Analog Output Feedback: Emits a continuous 4-20 mA DC valve position feedback loop back to the DCS for constant real-time error corrections.

Digital Communication Protocols: Fully compatible with Highway Addressable Remote Transducer (HART) and Foundation Fieldbus pass-through capabilities, allowing for deep device configuration and remote asset management (such as AMS Device Manager integration).

Controlled Medium Air Supply Pressure: Capable of regulating actuator air supplies between 30 psi and 150 psi (2.1 bar to 10.3 bar) depending on the pneumatic valve configuration.

Control Precision: Delivers high-accuracy positioning with error thresholds limited to 0.5% or lower.

Emerson Ovation 1C31194G03  Wiring & Installation Methods

Carrier Slot Placement: Slide the 1C31194G03 module firmly into its designated slot on the Ovation local I/O branch or horizontal base carrier assembly. Ensure the alignment grooves are properly tracked before seating the multi-pin backplane plug.

Chassis Attachment Protection: Hand-tighten the integrated thumbscrews or locking fasteners on the module's faceplate to ensure continuous electrical bond integrity and protection against operational high-frequency vibration.

Input and Control Signal Hookup: Secure the 4-20 mA control input pairs coming from the junction box onto the designated positive and negative terminal connection screws. Maintain strict cable shielding discipline up to the barrier bar to minimize electromagnetic noise.

Position Feedback Loop Wiring: Connect the position transmitter output loop (4-20 mA feedback lines) back to the diagnostic registers of the DCS controller network.

Grounding Protocols: Bond the carrier frame or local enclosure housing securely to the master control cabinet's low-impedance instrumentation ground. Proper grounding is essential to protect the internal digital filters and HART communication circuitry from common-mode electrical noise.

Emerson Ovation 1C31194G03  Product Advantages & Key Features

High-Accuracy Control Loop: Achieves ultra-tight valve calibration down to 0.5% positioning accuracy, optimizing flow parameters and preventing system oscillations in critical turbine steam lines.

Rapid Signal Response Time: Engineered with high-speed analog-to-digital translation chips that provide immediate mechanical valve corrections following sudden control network command changes.

Seamless Ovation Core Integration: Specifically designed for native compatibility with Ovation 3.5+ frameworks, eliminating the need for third-party driver mapping or signal conversion layers.

Smart Device Diagnostics: Embedded with HART pass-through capabilities, enabling technicians to remotely perform valve stroke tests, track seat wear, and diagnose pneumatic leaks without pulling field assets.

Ruggedized Construction: Features heavy-duty circuit protection and thick industrial-grade conformal coating on the PCB componentry to guard against severe vibration, shock, and high-temperature stress.

•
