Description
-
BrandEMERSON
-
ModelSE3008
-
Product NameController Module
-
Country of OriginMalaysia
-
HS Code8537109160
-
Dimensions110 mm×75 mm×30 mm
-
Weight1.08 kg
-
Operating Temperature-40 ℃ ~ +70 ℃
-
Storage Temperature-45 ℃ ~ +85 ℃
-
Power Supply24 VDC ±10%
-
Warranty12 month
-
Product StatusNew and original

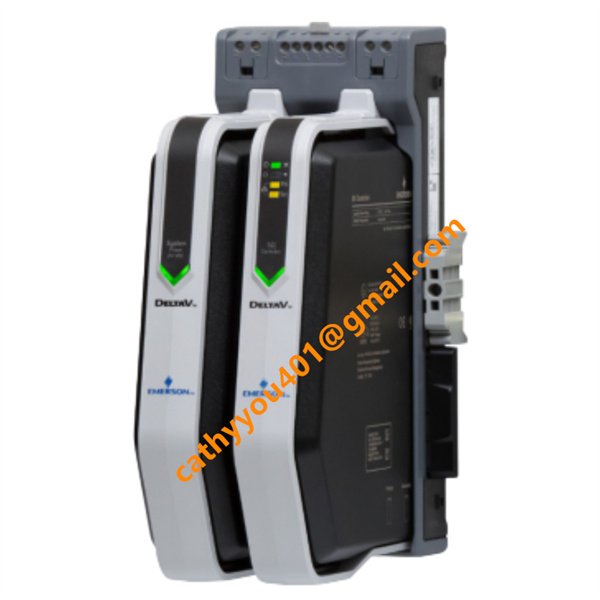

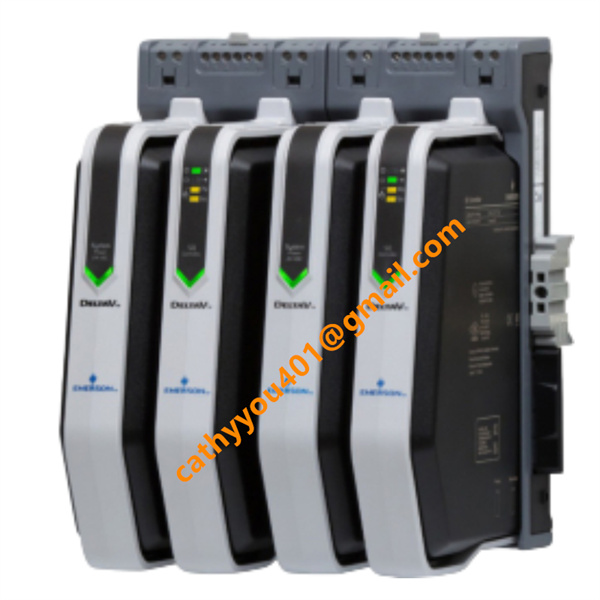

EMERSON SE3008 (KJ2005X1-SQ1) Product Introduction & Technical Parameters
Technical Parameters
Input
1. Digital Input: Multi-channel programmable digital signal input, supports switch status, interlock signal and equipment feedback acquisition
2. Analog Input: Compatible with standard 4-20mA industrial analog signals for pressure, temperature, flow and liquid level monitoring
3. Bus Input: LocalBus communication interface for data interaction with DeltaV system main control unit
4. Sampling Performance: High-speed real-time sampling, fast response to process parameter changes
5. Isolation Design: Channel-to-channel electrical isolation to resist industrial electromagnetic interference
Output
1. Digital Output: Relay/transistor output for on-off control, alarm triggering and safety interlock execution
2. Analog Output: Configurable 4-20mA output to drive on-site actuators and regulating valves
3. Communication Output: LocalBus proprietary bus communication, supports seamless connection with DeltaV DCS system

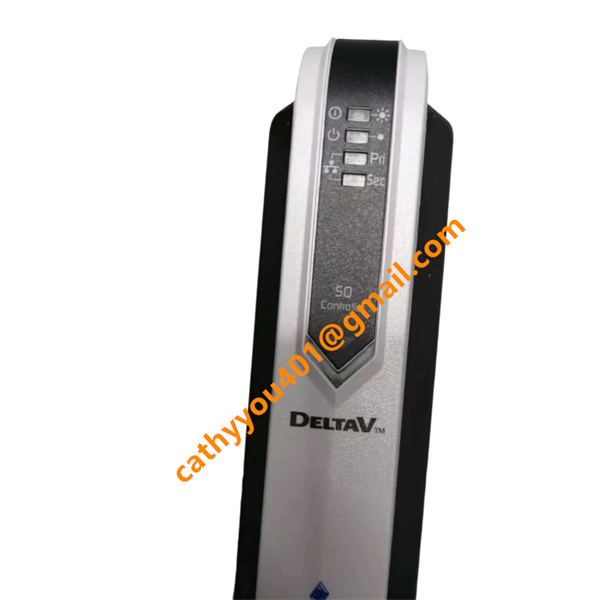

4. Status Indication: Built-in LED indicators for power, running, fault and communication status feedback
5. Data Output: Supports real-time data uploading and fault event recording for upper monitoring systems
Core Functions
1. Real-time acquisition of on-site analog and digital process signals
2. Independent execution of industrial control logic, closed-loop regulation and safety interlock protection
3. Real-time data exchange with DeltaV DCS system via LocalBus bus
4. On-site equipment control, status feedback and abnormal alarm output
5. Fault recording and operation log storage for post-failure analysis and predictive maintenance
6. Distributed control task execution to reduce load of upper central control unit
Product Advantages
1. Original Emerson DeltaV series product, mature and stable with long-term industrial application verification
2. Independent control capability improves system reliability and avoids single-point failure risks
3. Compact design adapts to narrow cabinet space and on-site limited-installation scenarios
4. Simple configuration and debugging, reducing later-stage operation and maintenance costs
5. High anti-interference performance, stable operation in complex industrial electromagnetic environments
6. Wide compatibility with mainstream industrial sensors and actuators, easy system integration
Application Cases
1. Oil & Gas Industry: Process control of compressors, pumps and pipeline systems in refineries and natural gas processing plants
2. Power Generation Industry: Auxiliary equipment control and safety interlock in thermal power, hydropower and new-energy power plants
3. Chemical Industry: Precision process control of reaction kettles, heating furnaces and fluid delivery systems
4. Metallurgy Industry: Parameter regulation of smelting and rolling production lines
5. Water Treatment Industry: Automatic control of large pump stations and sewage treatment processes
Product Characteristics
1. Compact modular structure, small footprint, convenient installation, replacement and system expansion
2. Independent distributed control architecture, realizing decentralized control and centralized monitoring
3. Complete hardware and software self-diagnosis function, real-time monitoring of module faults, communication abnormalities and signal anomalies
4. High electromagnetic compatibility, meets industrial anti-interference standards, suitable for harsh industrial environments
5. Wide-range temperature adaptability, stable operation in low-temperature and high-temperature working conditions
6. Perfect compatibility with Emerson DeltaV series systems, supporting plug-and-play configuration
