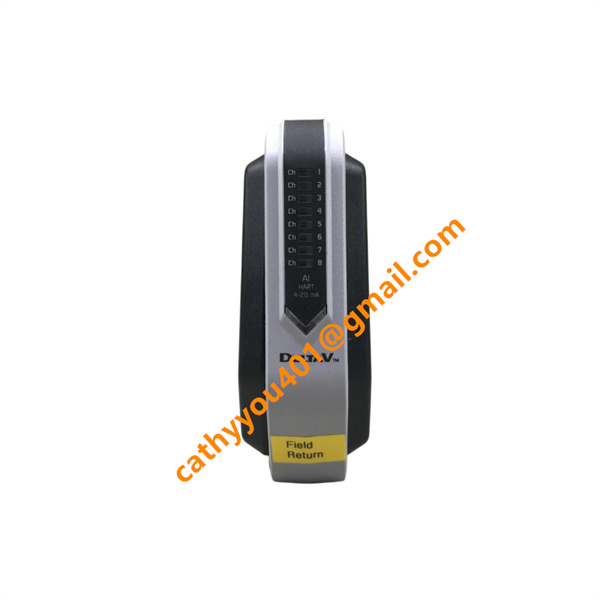

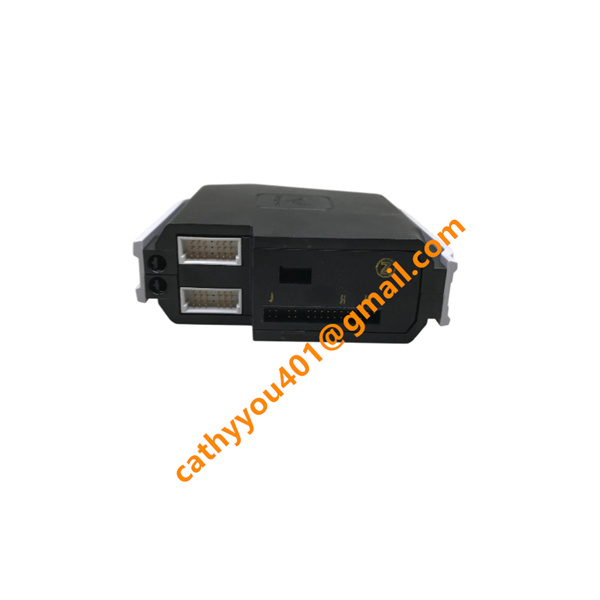

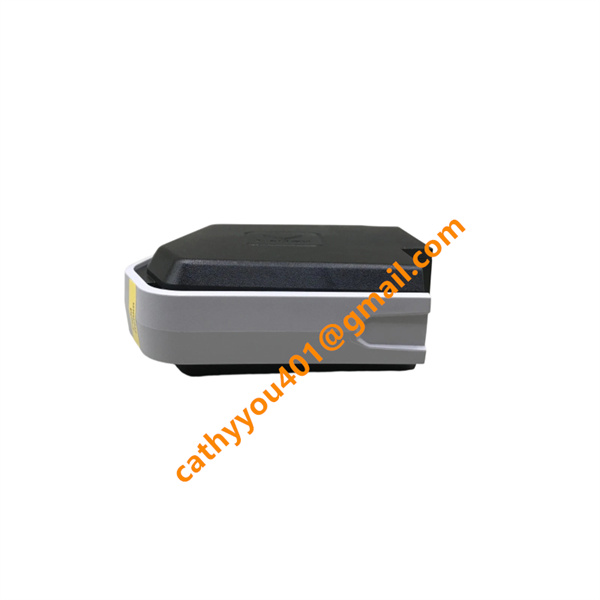

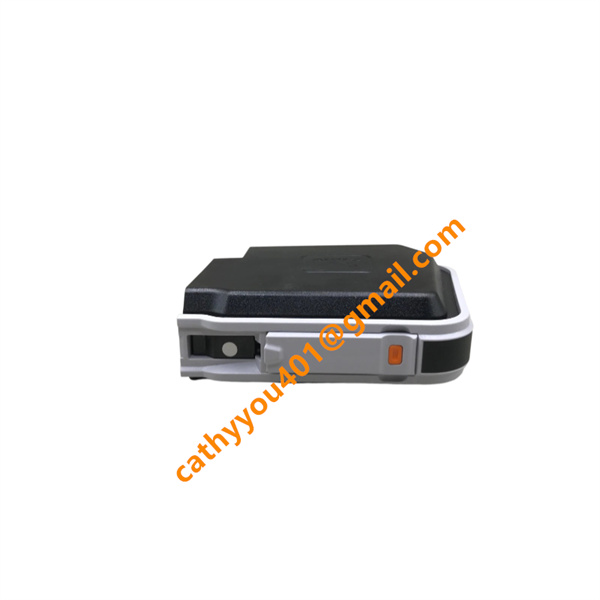

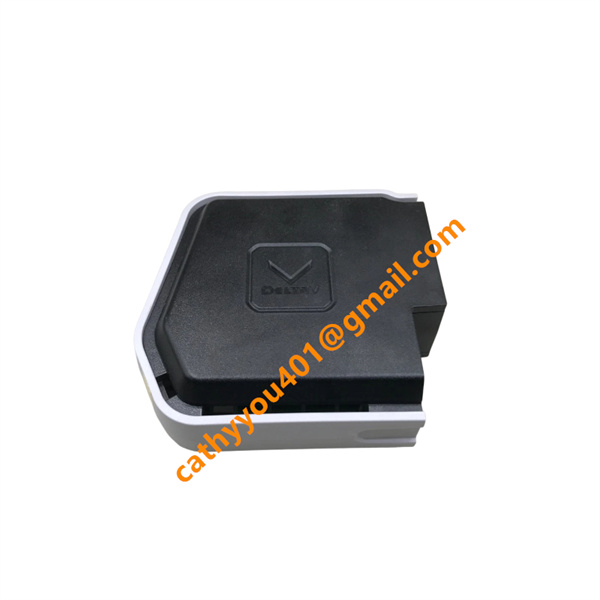

SE4035S2B1 KJ3221X1-BK1 Emerson analog I/O module

• Brand
  Emerson
• Model
  SE4035S2B1 KJ3221X1-BK1
• Product Name
  DeltaV Redundant Analog Output I/O Module
• Country of Origin
  United States
• HS Code
  8538900000
• Dimensions
  162mm×41.8mm×199.3mm
• Weight
  0.29kg
• Operating Temperature
  10°C to +50°C
• Storage Temperature
  −50°C to +120°C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

Emerson SE4035S2B1 KJ3221X1-BK1 Analog Output Module - Product Overview & Specifications

Technical Specifications

Input Configuration: Receives digital control instructions and system power supply input through DeltaV system local bus. It supports 12VDC local bus power input and 24VDC field bus power input, realizing stable power supply and real-time reception of upper computer control commands. It features anti-surge and anti-interference input design to avoid signal distortion caused by on-site electromagnetic interference.

Output Configuration: Comes with 8 independent high-precision analog output channels, supporting standard 4-20mA industrial current signal output. Each channel supports independent parameter calibration and signal output control, which can precisely drive various field actuators such as regulating valves and frequency converters. It matches HART intelligent signal output, realizing superposition of analog control signals and digital communication signals.

Structural Technology: Adopts compact integrated industrial structural design and high-precision SMT surface mounting process. The optimized internal circuit layout enhances electromagnetic compatibility and structural stability, with outstanding vibration resistance, impact resistance and environmental corrosion resistance, adapting to long-term continuous operation in industrial field environments.

Core Product Features

This module integrates full redundant control design, supporting redundant switching of signal output and power supply, effectively avoiding system operation interruption caused by single-point failure. It is compatible with standard HART protocol, realizing two-way digital communication with field HART instruments, supporting remote parameter configuration, instrument status monitoring and fault query. Built-in high-precision signal processing chip ensures low distortion and high linearity of output signals, with excellent signal stability and repeatability. The embedded intelligent self-diagnosis function can automatically detect channel anomalies, circuit failures and communication faults, and feed back fault information to the upper system in real time. In addition, it supports independent configuration of each channel, with flexible working mode switching to meet diverse process control requirements.

Main Functions

As a key analog output unit of the DeltaV DCS system, the Emerson SE4035S2B1 KJ3221X1-BK1 is mainly responsible for converting digital control commands issued by the main control system into standard 4-20mA analog signals. It drives on-site industrial actuators to complete accurate adjustment of process parameters such as pressure, flow, temperature and liquid level. It realizes real-time two-way communication with field smart instruments via HART protocol, completing remote monitoring, parameter debugging and equipment status diagnosis. Meanwhile, it provides real-time signal output monitoring, operating status feedback and fault self-alarm functions, supporting remote system maintenance and on-site equipment troubleshooting, and ensuring the continuous and stable operation of industrial process control loops.

Product Advantages

This module boasts native high compatibility with Emerson DeltaV DCS systems, featuring plug-and-play installation, simple deployment and convenient later maintenance and replacement, which effectively reduces system construction and operation costs. The full redundant design greatly improves system operational reliability, eliminating single-point failure risks and meeting the high-availability operation requirements of critical industrial processes. With high-precision signal output capability, it effectively improves the control accuracy of industrial production processes and optimizes production operation efficiency.

Supported by universal HART protocol, it realizes intelligent management of field instruments, simplifies equipment debugging and daily maintenance workflows, and reduces manual operation costs. The compact and lightweight industrial structure saves cabinet installation space, with strong environmental adaptability and long service life, suitable for long-term uninterrupted operation of heavy-duty industrial equipment. The built-in intelligent diagnosis mechanism enables rapid fault location and early warning, minimizes unplanned downtime, and provides stable and reliable technical support for safe and efficient industrial production.
