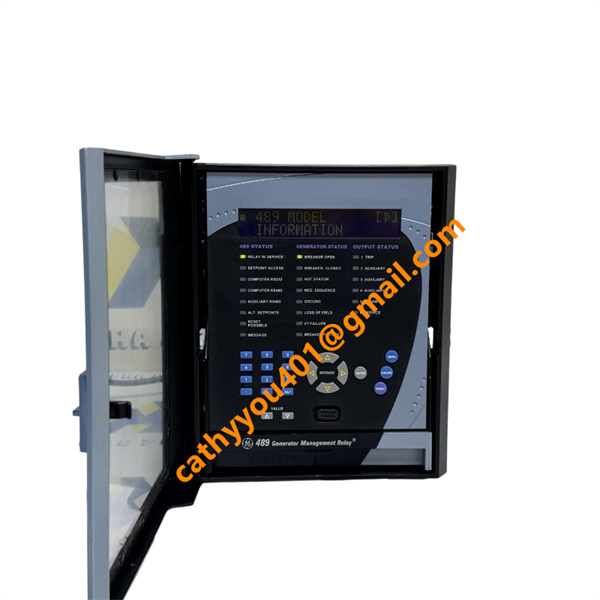

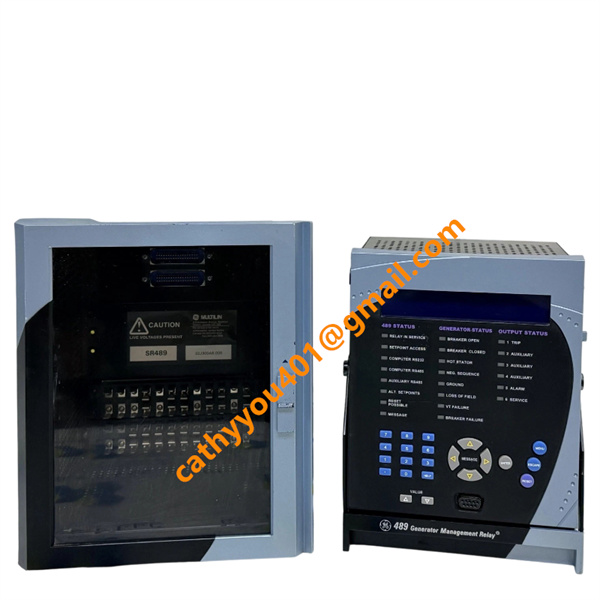

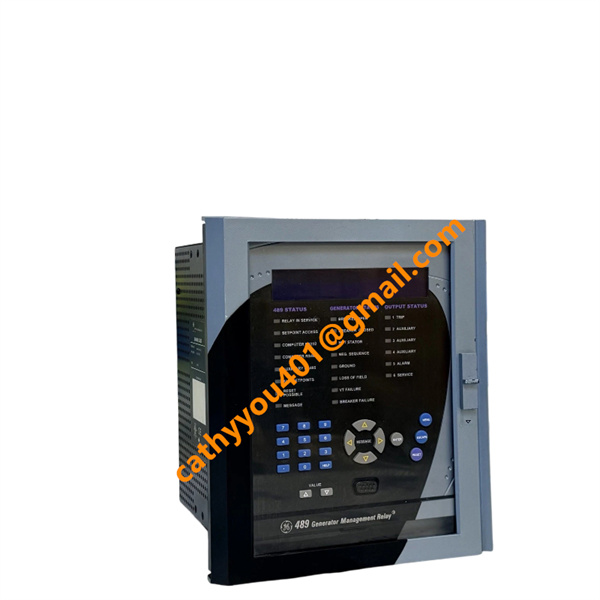

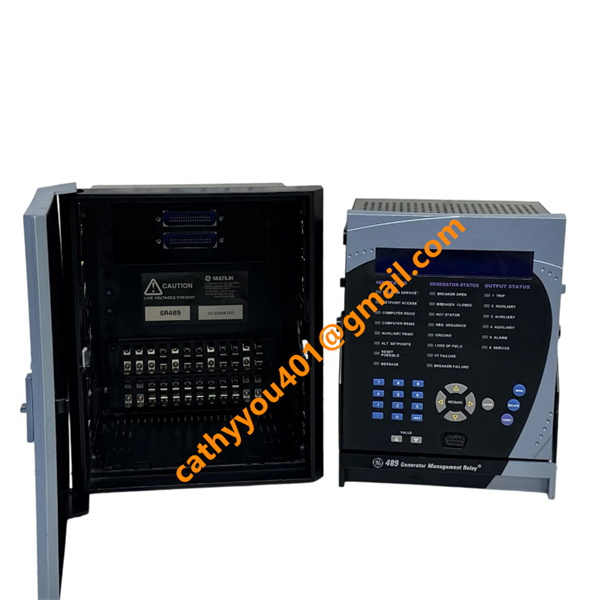

489-P5-HI-A20-E GE DCS motor management relay

• Brand
  GE
• Model
  489-P5-HI-A20-E
• Product Name
  Multilin 489 Motor Management Relay
• Country of Origin
  United States
• HS Code
  8536300000
• Dimensions
  144 mm(H)×144 mm(W)×180mm(D)
• Weight
  1.9 kg
• Operating Temperature
  -20℃ to +80℃
• Storage Temperature
  -25℃ to +85℃
• Power Supply
  85–265 VAC/88–300 VDC
• Warranty
  12 month
• Product Status
  New and original

GE 489-P5-HI-A20-E Product Introduction & Technical Specifications

Technical Specifications

Input: 3-phase current/voltage input; RTD temperature sensor input; digital contact status input; analog process signal input

Output: Trip contact output; alarm relay output; analog retransmission output; communication data output; control logic output

Power Supply: 85–265 VAC / 88–300 VDC universal auxiliary power; power consumption ≤ 18 W

Core Functions:

Overload, short-circuit, ground fault, phase imbalance, phase loss and over/under-voltage protection; motor start-up monitoring and locked rotor protection;

real-time current, voltage, power and temperature measurement;

fault event logging and data recording;

remote parameter configuration and monitoring;

control of motor start/stop and auxiliary devices

Product Advantages:

1. All-in-one protection and monitoring design reduces the need for multiple discrete devices and saves installation cost

2. High-precision measurement and fault recording enable accurate fault analysis and predictive maintenance

3. Universal power supply and rich I/O interfaces adapt to various industrial motor control system requirements

4. Flexible communication capability supports seamless integration with SCADA, DCS and industrial automation platforms

5. Rugged industrial housing and strict quality testing ensure stable performance in harsh industrial environments

Application Cases:

Widely applied in motor protection and control for oil & gas facilities, petrochemical plants, power generation stations, water treatment plants, mining industry, cement manufacturing, HVAC systems and heavy-duty industrial production lines.

Key Characteristics:

Multi-level motor protection;

high-accuracy measurement and metering;

configurable protection curves;

built-in event recording and fault waveform capture;

industrial-grade EMC compliance; wide operating temperature range;

multiple communication protocol support;

user-friendly local HMI

•
