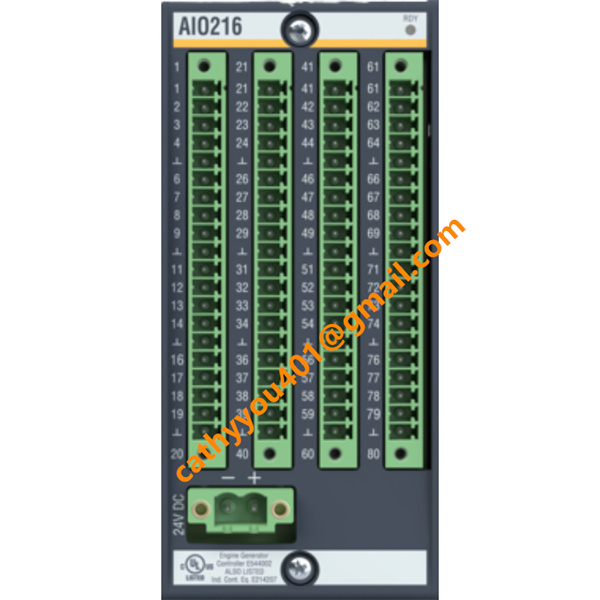

AI0216 Bachmann analog I/O module new brand

• Brand
  Bachmann
• Model
  AI0216
• Product Name
  16-Channel Analog Input Module
• Country of Origin
  Austria
• HS Code
  8537101190
• Dimensions
  125 mm×98 mm×32 mm
• Weight
  0.32 kg
• Operating Temperature
  -25℃ to +80 ℃
• Storage Temperature
  0 ℃ to +60 ℃
• Power Supply
  24 V DC (18–30 V DC)
• Warranty
  12 month
• Product Status
  New and original

Bachmann AI0216 Product Introduction and Technical Specifications

Technical Parameters

Input:

16-channel isolated analog input;

17-4–20 mA / 0–10 V DC;

18-PT100/PT1000 temperature input compatible

Output:

Digital data output via internal system bus to CPU module

Power Supply:

24 V DC (18–30 V DC);

power consumption ≤ 4.5 W

Functions:

Analog signal acquisition;

signal filtering and conditioning;

A/D conversion;

channel fault diagnosis;

data transmission to controller

Product Advantages:

1. 16-channel high-density input saves cabinet space and reduces system cost

2. Per-channel galvanic isolation eliminates crosstalk and ground-loop interference

3. Ultra-high measurement accuracy ensures precise process monitoring and control

4. Wide signal compatibility supports standard current, voltage and RTD sensors

5. Robust industrial design with comprehensive protection improves system reliability

Application Cases:

1. Renewable energy: Wind turbine pitch and environmental parameter monitoring

2. Process industry: Chemical and pharmaceutical plant temperature/pressure signal collection

3. Water treatment: Flow, level and water quality analog signal monitoring

4. Factory automation: Machinery and production line sensor signal acquisition

5. Energy management: Power plant and HVAC system analog data monitoring

Characteristics:

Galvanic isolation per channel;

measurement accuracy ±0.05 % FS;

sampling rate up to 100 Hz;

operating temperature: 0 ℃ to +60 ℃;

EMC compliant;

DIN-rail mount; short-circuit and over-voltage protection
