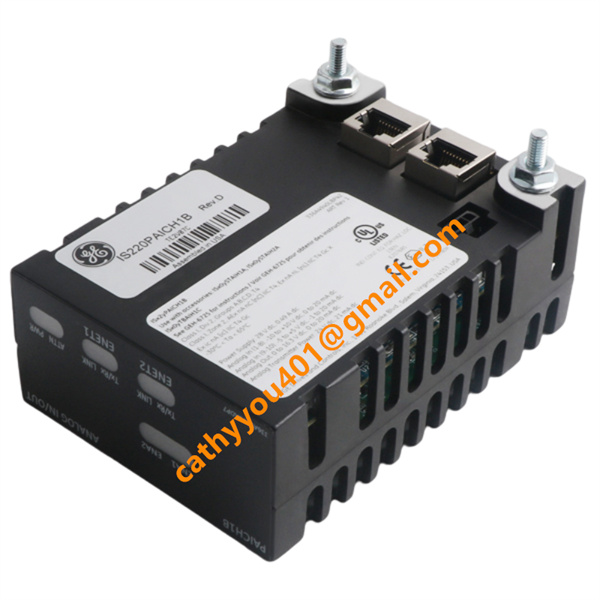

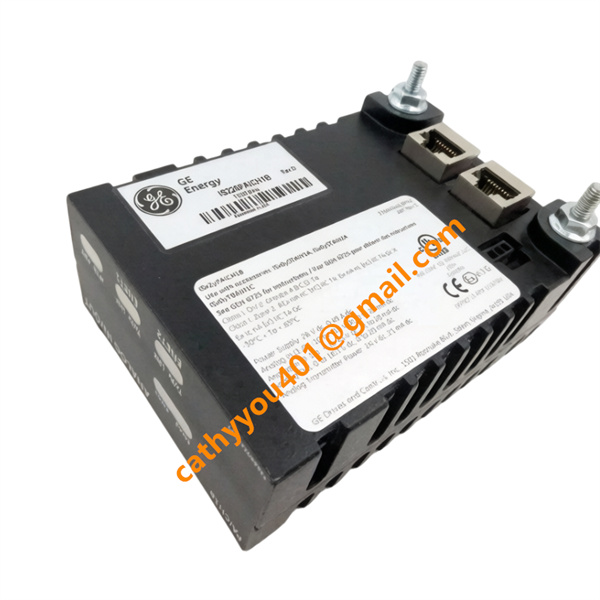

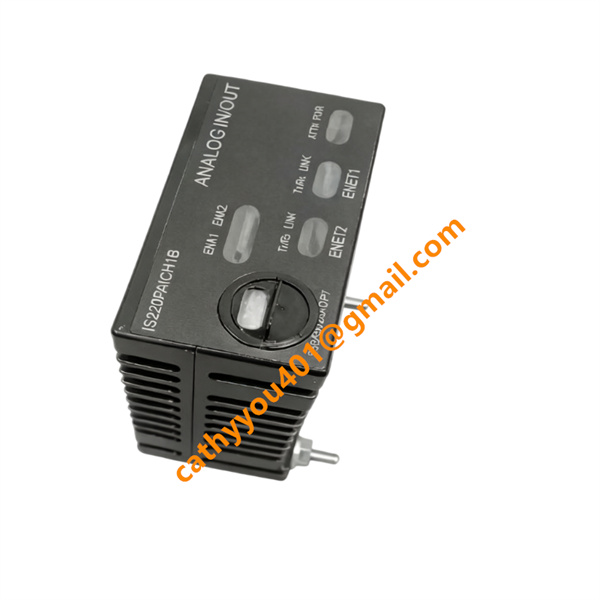

GE IS220PAICH1B DCS analog I/O board

• Brand
  GE
• Model
  IS200SPIDG1A
• Product Name
  Terminal Board
• Country of Origin
  United States
• HS Code
  8537101100
• Dimensions
  120mm×75 mm×35 mm
• Weight
  0.2 kg
• Operating Temperature
  -60℃ TO +200℃
• Storage Temperature
  -80℃ TO +240℃
• Power Supply
  24 V DC
• Warranty
  12 MONTH
• Product Status
  NEW AND ORIGINAL

GE IS200SPIDG1A Product Introduction & Technical Parameters

Input / Output & Electrical

1.Power Supply: 24 V DC (nominal)

2.Signal Type: Digital I/O, compatible with Mark VI/VIe protocols

3.Communication: Profibus DP, Mark VIe proprietary protocol

4.Connector: High-density I/O port for IS220PPRFH series modules

5.Isolation: Galvanic isolation for noise immunity

Main Functions

1. I/O Termination: Centralized termination for digital I/O signals in Mark VI/VIe systems

2.Module Interfacing: Direct connection to IS220PPRFH Profibus gateway modules

3.Signal Routing: Organizes and routes control, status, and diagnostic signals

4. System ID & Diagnostics: Provides unique board ID and supports fault logging

5.Redundancy Support: Compatible with dual and triple modular redundant (TMR) configurations

Product Advantages

1.Proven Reliability: Designed for 24/7 operation in safety-critical turbine controls

2.Seamless Integration: Native compatibility with GE Mark VI/VIe ecosystem

3.Robust Performance: Withstands electrical noise, vibration, and wide temperature swings

4.Simplified Maintenance: Hot-swap capable; modular design for easy replacement

5.Cost Efficiency: Eliminates external termination panels, reducing system complexity

Application Cases

1. Power Generation: Gas/steam turbine control in combined-cycle, thermal, and peaker plants

2. Oil & Gas: Turbine-driven compressor control in natural gas transmission and LNG facilities

3.Petrochemical: Turbine controls for ethylene, ammonia, and refining processes

4. Industrial Utilities: Critical turbine/generator control in large manufacturing sites

5.Process Industries: Safety-critical rotating equipment requiring reliable I/O terminatio

Key Characteristics

1. Mark VI/VIe Native: Exclusively designed for GE Speedtronic turbine control systems

2.Industrial Hardening: Conformal-coated PCB; wide temperature tolerance

3. Compact & Durable: Metal chassis mounting enhances mechanical stability

4.Signal Integrity: Optimized layout for high-speed, noise-immune signal transmission

5.Diagnostic Support: Integrated ID and status monitoring for system diagnostics

6.Operating Temperature: -25°C to +50°C

7. Humidity: 5%–95% non-condensing

8.Certifications: CE; compliant with IEC 61508 for safety-related systems
