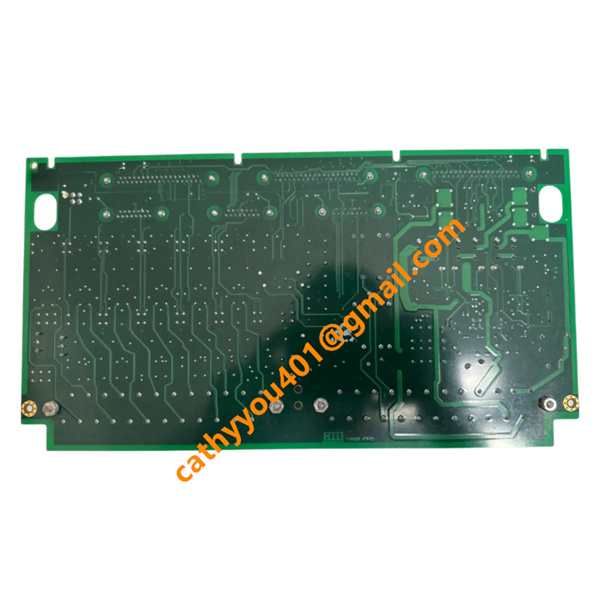

IS200JPDEG1A GE DC Battery Distribution Board

• Brand
  GE
• Model
  IS200JPDEG1A
• Product Name
  DC Battery Distribution Board
• Country of Origin
  United States
• HS Code
  8537101100
• Dimensions
  195mm×285mm×29mm
• Weight
  0.6 kg
• Operating Temperature
  -30℃ TO +80℃
• Storage Temperature
  -50℃ TO +170℃
• Power Supply
  125 VDC
• Warranty
  12 month
• Product Status
  New and original

GE IS200JPDEG1A Product Introduction & Technical Parameters

Input / Output Specifications

Input Voltage: 125 VDC (nominal; battery/rectified source)

Output: Multiple protected DC output channels for controllers and I/O packs

Connectors: Two 50-pin diagnostic connectors (P1, P2); J1/J1X for daisy-chaining

Protection: Overcurrent, short-circuit, and surge protection per channel

Power Rating: Designed for continuous 125 VDC system loads

Main Functions

Power Distribution: Distributes 125 VDC power to Mark VIe controllers, I/O packs, and field terminals

Fault Protection: Isolates electrical faults (overcurrent, short circuit) to prevent system-wide damage

System Monitoring: Provides diagnostic access to power status and fault logs

Redundancy Support: Works with redundant power sources to ensure continuous operation

Load Management: Balances power distribution across multiple I/O and controller modules

Product Advantages

High Reliability: Engineered for 24/7 operation in safety-critical turbine control

Integrated Protection: Eliminates need for external protection devices, reducing cost and complexity

Scalable Design: Daisy-chain support adapts to small to large system configurations

Simplified Maintenance: Diagnostic ports enable fast troubleshooting and reduced downtime

Harsh Environment Ready: Conformal coating and wide temperature range suit industrial settings

GE Ecosystem Compatibility: Seamless integration with Mark VIe and Speedtronic systems

Application Cases

Power Generation: Gas/steam turbine control in combined-cycle, thermal, and peaker power plants

Oil & Gas: Turbine-driven compressor control in natural gas transmission, LNG, and refineries

Petrochemical: Ethylene, ammonia, and refining processes using GE Mark VIe turbine controls

Industrial Utilities: Critical turbine and generator control in large manufacturing facilities

Process Industries: Safety-critical rotating equipment control requiring uninterrupted DC power

Key Characteristics

Mark VIe Native: Exclusively for GE Mark VIe (Speedtronic) turbine control platforms

Robust Protection: Built-in overcurrent, short-circuit, and surge protection safeguards downstream components

Daisy-Chain Capable: Multiple boards can be linked via J1/J1X for scalable power distribution

Industrial Hardening: Conformal coated PCB for harsh environments

Diagnostic Access: Dual 50-pin ports for system monitoring and troubleshooting

Operating Temperature: -20°C to +60°C

Certifications: CE; compliant with IEC 61508 for safety-related systems
