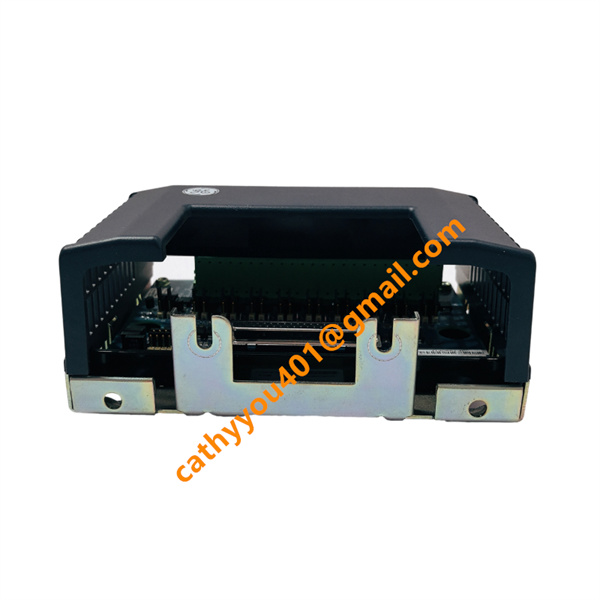

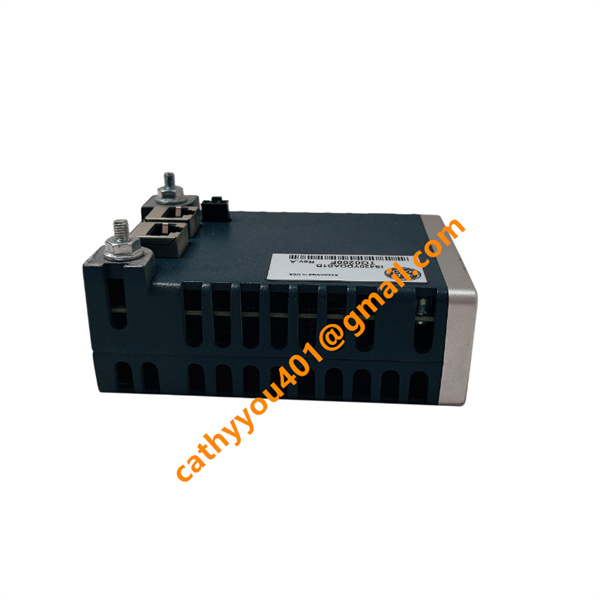

IS420YDOAS1B GE DCS output I/O pack

• Brand
  General Electric
• Model
  IS420YDOAS1B
• Product Name
  Mark VIeS Discrete Output I/O Pack
• Country of Origin
  United States
• HS Code
  8538900000
• Dimensions
  170mm×157mm×153mm
• Weight
  1.2kg
• Operating Temperature
  0°C to +70°C
• Storage Temperature
  −30°C to +90°C
• Power Supply
  24 vdc
• Warranty
  12 month
• Product Status
  New and original

GE IS420YDOAS1B Discrete Output I/O Pack - Product Overview & Specifications

Technical Specifications

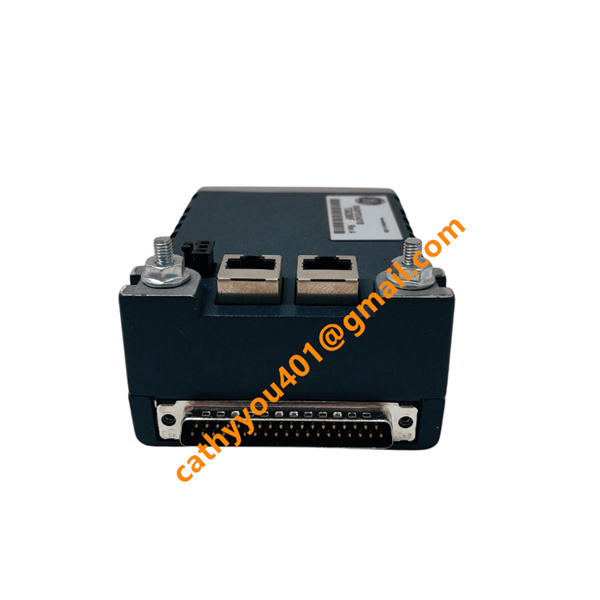

Input Configuration: Integrated with dual redundant Ethernet RJ45 ports to establish a redundant network input system. This dual-network design eliminates single-point transmission failures, enhances system anti-interference capability, and supports real-time, low-latency reception and parsing of control commands from the main controller via standard industrial Ethernet protocols.

Output Configuration: Equipped with 12 fully independent and configurable discrete output channels, compatible with driving up to 12 external industrial relays. Each channel supports individual system on/off control, with a rated output voltage of 24VDC and a single-channel driving current of 0.5A, covering the actuation requirements of most industrial auxiliary control devices. It supports a maximum switching frequency of 50kHz, delivering rapid and precise signal response for high-frequency control scenarios.

Structural Technology: Adopts high-precision SMT surface mounting process with optimized compact internal circuit layout. The integral industrial structural design endows the module with excellent vibration resistance, impact resistance and electromagnetic interference resistance, adapting to complex and harsh industrial operating environments.

Main Functions

As a core functional component of the Mark VIeS turbine control system, the GE IS420YDOAS1B is responsible for converting upper-system logical control commands into physical discrete switching signals. It steadily drives external relay sets to realize automatic start-stop, logic switching and linkage control of various turbine auxiliary equipment. Through dual Ethernet redundant communication, it achieves bidirectional real-time data interaction between the main control unit and field equipment, ensuring accurate command transmission and reliable equipment status feedback. Meanwhile, it provides real-time signal monitoring, operational status statistics and fault self-diagnosis functions, supporting remote online monitoring and on-site daily maintenance, and effectively safeguarding the safe, stable and efficient operation of the entire turbine control system.

Product Advantages

This module features superior native compatibility, perfectly matching GE Mark VIe and Speedtronic turbine control systems with plug-and-play functionality, which simplifies system installation, replacement and upgrading procedures and reduces overall project deployment and maintenance costs. The advanced solid-state non-contact structure eliminates mechanical loss, delivering outstanding environmental adaptability, vibration resistance and long-term operational stability even in high-intensity continuous working scenarios. The dual redundant Ethernet input architecture effectively avoids system communication interruption caused by single network failure, significantly improving the overall reliability and continuity of industrial control operations.

Furthermore, the 12-channel independent configurable output design greatly improves control flexibility, meeting the complex and diverse logic control requirements of large turbine units. The built-in intelligent diagnostic system simplifies troubleshooting and daily maintenance workflows, shortening equipment maintenance cycles and improving industrial production efficiency. Featuring a compact, lightweight and standardized industrial form factor, the module is easy to install, fix and replace in standard control cabinets. As an optimized upgraded module, it delivers enhanced circuit stability, lower failure rate and longer service life, providing excellent long-term cost performance for industrial turbine control system operation.

Core Product Features

The IS420YDOAS1B boasts integrated intelligent relay and coil real-time monitoring functions, which continuously collect operating feedback from matched terminal boards to form a closed-loop signal monitoring mechanism. It is embedded with a comprehensive self-diagnosis algorithm that enables automatic fault detection, early warning and quick positioning, greatly minimizing system unplanned downtime. Adopting solid-state non-contact switching design, it achieves ultra-fast switching response, zero operational noise and far longer service life compared with traditional mechanical relay modules, free from mechanical wear and contact failure risks. Additionally, it supports flexible per-channel parameter configuration, allowing customized working mode setup according to diverse on-site control demands with outstanding application flexibility.
