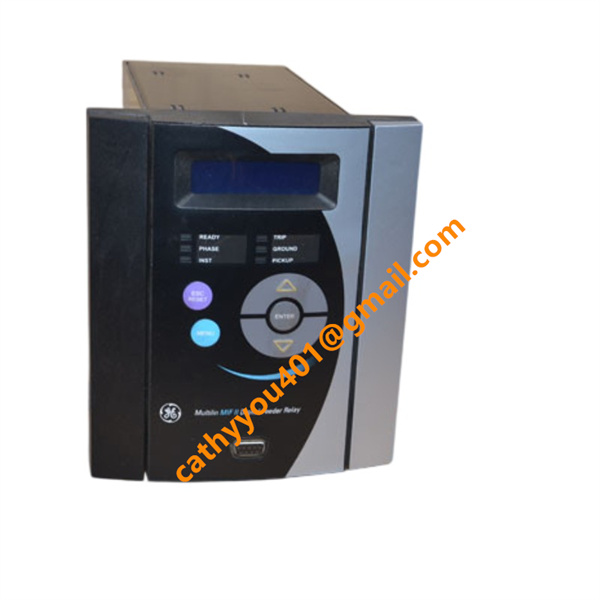

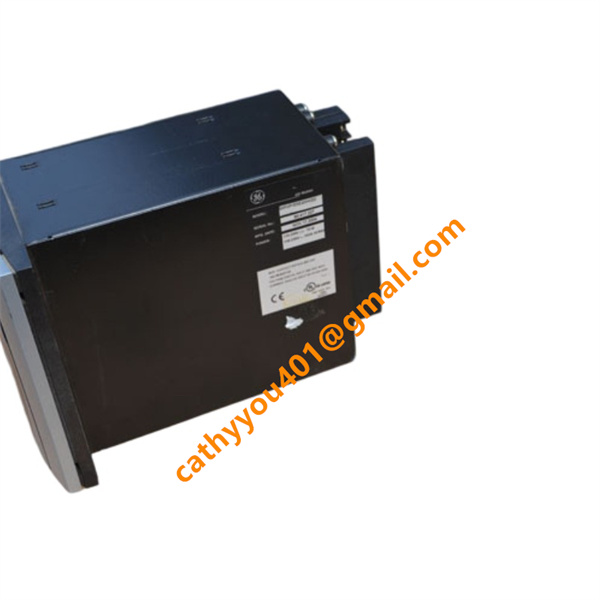

MIFIIPI00E20HI0H GE DCS Interface Module

• Brand
  GE
• Model
  MIFIIPI00E20HI0H
• Product Name
  Multifunction Interface Module
• Place of Origin
  United States
• HS Code
  85389091
• Dimensions
  265 mm × 220 mm × 48 mm
• Weight
  0.82 kg
• Operating Temperature
  -10 °C ~ +55 °C
• Storage Temperature
  -40 °C ~ +85 °C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Power Supply Input

Nominal auxiliary supply voltage: 24 VDC

Operating voltage range: 12 VDC ~ 48 VDC

Typical operating consumption: 8 W

Max. input current: 0.4 A

Digital Status Inputs

Total configurable digital input channels: 8 channels

Input activation threshold: 12–48 VDC

Pickup voltage: ≥12 VDC; Drop-out voltage: ≤6 VDC

Typical input current per channel: 6 mA

Input type: dry contact or active voltage input; polarity tolerant

Contact Outputs

Total programmable relay output contacts: 6 sets

Includes trip output, alarm output and auxiliary control outputs

Continuous carrying current per contact: 5 A

Breaking capacity (resistive load):

250 VAC / 5 A; 30 VDC / 5 A

Trip contact is high-speed contact for breaker tripping function

Analog Measurement Inputs

Current measurement inputs: 5 A nominal AC current transformer input

Continuous rated current: 5 A AC

Short-time withstand current: 100 A AC (1 second)

Voltage measurement inputs: 120 VAC nominal PT voltage input

Operating voltage range: 0 ~ 140 VAC

Communication Interface (Data Input & Output)

Front RS232 port; Rear RS485 port

Protocol: Modbus RTU

Baud rate options: up to 19200 bps

Realizes remote data acquisition, setting download and status output to SCADA system

Visual inspection: Inspect the relay casing for cracks, dust buildup, corrosion and water traces. Confirm normal operation of front panel LEDs, display and control buttons. Check all terminal blocks, cables and connectors for looseness, aging and oxidation.

Environmental check: Make sure ambient temperature, humidity and ventilation satisfy operating specifications. Maintain the cabinet free of dust, oil mist and corrosive gases. Prevent intense vibration and direct sunlight irradiation.

Power supply inspection: Measure the auxiliary supply voltage to guarantee it operates within the rated range. Resolve problems including voltage fluctuation and bad contact.

I/O circuit maintenance: Inspect wiring and dry contacts of digital inputs; check relay output terminals for ablation. Periodically test the switching performance of contacts.

Analog circuit inspection: Examine wiring for CT and PT secondary loops to rule out open-circuit and short-circuit hazards. Verify the insulation status of connected cables.

Communication maintenance: Check RS485 / RS232 wiring connections. Ensure steady data exchange with the upper monitoring system without frequent communication breakdowns.

Function verification: Review measured current, voltage and protection parameters on the local display. Confirm all protection settings are preserved accurately. Conduct regular protection logic tests during system shutdown.

Fault record management: Routinely download event logs, fault reports and oscillographic data. Analyze abnormal alarms to eliminate potential risks ahead of failures.

Dust cleaning: Regularly clear dust on the exterior and interior with a dry soft brush. Liquid cleaning agents are prohibited to avoid damage to circuit boards.

Maintenance record: Document inspection readings, abnormal conditions and corresponding solutions. Replace aging components following specified service cycles.
