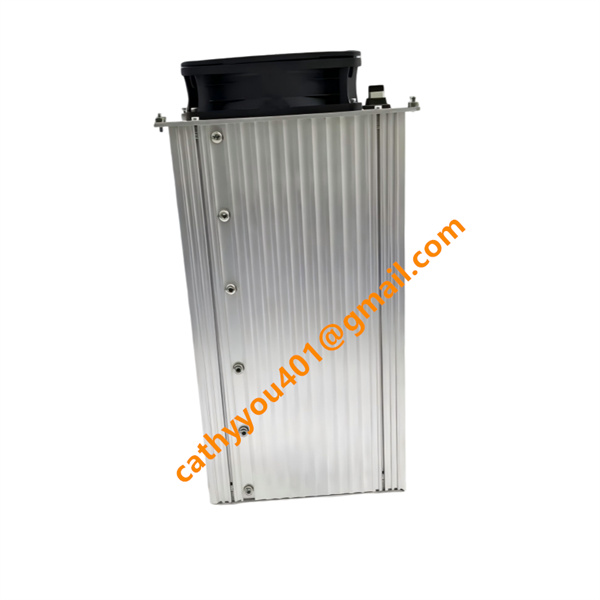

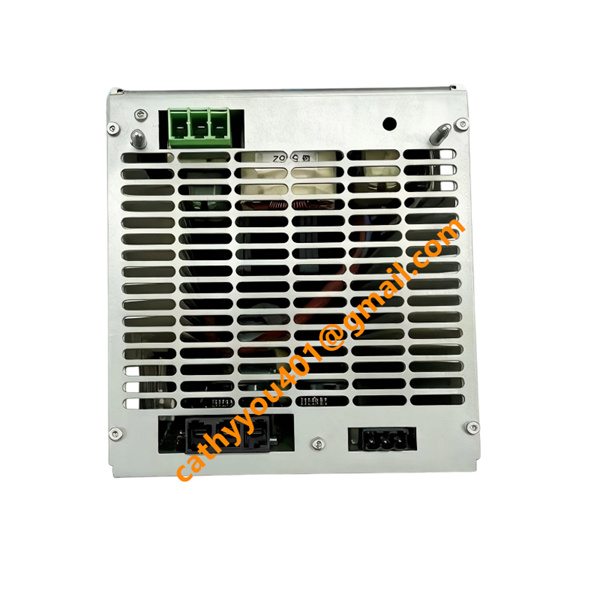

PS1000/230 HIMA DCS power supply module

• Brand
  HIMA
• Model
  PS1000/230
• Product Name
  Power Supply Module
• Country of Origin
  Germany
• HS Code
  8504409990
• Dimensions
  125mm(H)×85mm(W)×130mm(D)
• Weight
  1.4 kg
• Operating Temperature
  -35 ℃ to +90 ℃
• Storage Temperature
  -50 ℃ to +80 ℃
• Power Supply
  24 VDC, 40 A
• Warranty
  12 month
• Product Status
  New and original

HIMA PS1000/230 Product Introduction & Technical Specifications

Technical Specifications

Input: 180–264 VAC, 47–63 Hz; single-phase industrial AC input

Output: 24 VDC, 40 A; isolated and regulated DC output for safety-related loads

Power Supply: Single-phase AC mains input; built-in EMI filter and surge suppression

Core Functions:

Supplies regulated 24 VDC power to HIMA safety system racks and field I/O modules;

monitors internal power status and generates fault alarms;

provides galvanic isolation between mains and safety circuit;

supports redundant power supply to avoid single-point failure;

ensures stable power output under transient voltage fluctuations

Product Advantages:

1.Complies with IEC 61508 functional safety standards, suitable for SIL-rated safety instrumented systems

2.Galvanic isolation effectively eliminates interference between mains and safety control circuits

3.Comprehensive protection functions prevent damage to safety equipment from abnormal power conditions

4.Compact DIN-rail mounting design saves cabinet space and simplifies installation and maintenance

5.High efficiency and robust construction ensure long-term reliable operation in harsh industrial environments

Application Cases:

Applied in safety instrumented systems for oil & gas production, petrochemical plants, power generation stations, chemical processing, pharmaceutical manufacturing and other process industries; used for emergency shutdown (ESD) systems, fire and gas (F&G) systems, burner management systems (BMS) and critical safety control loops.

Key Characteristics:

1.SIL 2 / SIL 3 capable;

2.isolated input-output;

3.overvoltage, overcurrent and short-circuit protection;

4.industrial-grade EMC compliance;

5.wide operating temperature range;

6.DIN-rail mount;

7.redundant power configuration support;

8.high efficiency and low heat generation
