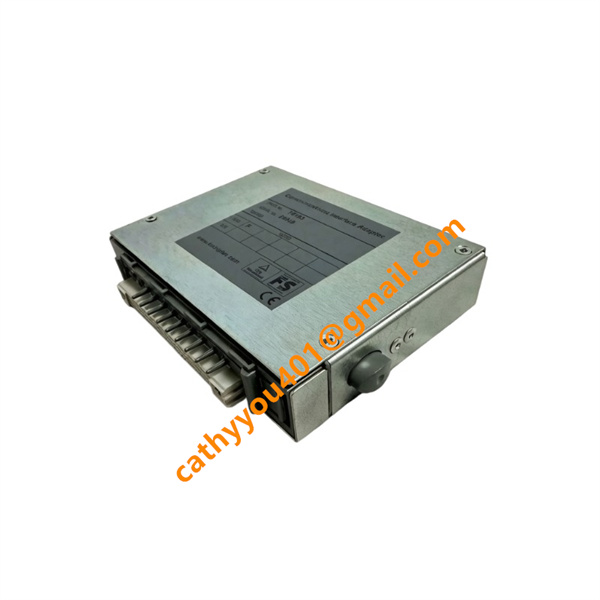

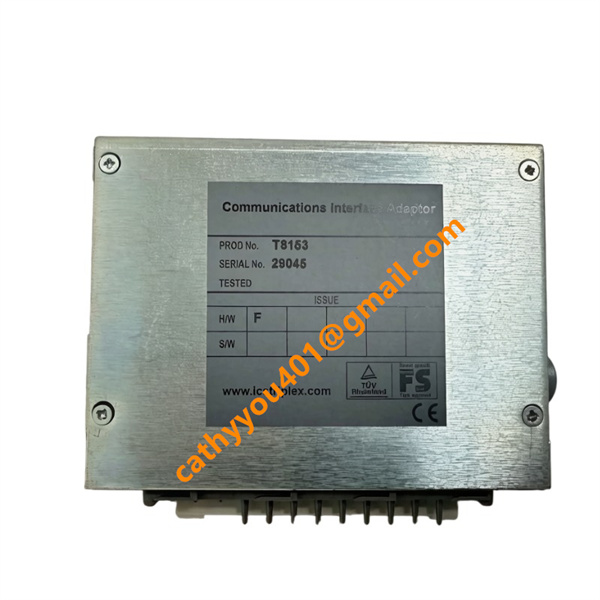

ICS Triplex T8153 Interface Adapter

• Brand
  ICS TRIPLEX
• Model
  T8153
• Product Name
  Trusted Communication Interface Adapter
• Country of Origin
  United States
• HS Code
  8538909100
• Dimensions
  150mm(Height)×28mm(Width)×106mm
• Weight
  418 g (0.92 lbs)
• Operating Temperature
  0°C to 60°C (32°F to 140°F)
• Storage Temperature
  -25°C to 70°C (-13°F to 158°F)
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

ICS Triplex T8153 Power and Input Specifications

Power Supply: Handled directly via the internal backplane architecture of the Trusted Controller Controller Chassis

Power Dissipation: Low power footprint engineered to maintain passive thermal stability across the adapter card assembly

System Isolation Voltage: Built-in isolation protection layer rated to shield operational logic from field disturbances

Output and Communication Interfaces

Ethernet Ports: 2 independent RJ-45 ports supporting 10Base-T or 100Base-T fast Ethernet links (Optimized for peer-to-peer and workstation networking)

RS-485 Serial Ports: 4 dedicated channels optimized for direct point-to-point and multi-drop network bus distribution topologies

RS-232 Serial Ports: 2 ports (configured as 1 full RS-232 channel and 1 partial RS-232 diagnostic/maintenance channel)

Hardware Interconnect: Uses robust 48-way DIN41612 E-type physical connection matrices on the system interface layer

ICS Triplex T8153 Wiring and Connection Methods

Network Interfacing: Employs standard RJ-45 industrial patch configurations for Ethernet connections and highly secure pin-out arrays for serial routing.

Field Connection Adaptability: Integrates cleanly with multi-core flying-lead adapter cable configurations (such as TC-305 series lines) to map internal physical pins to standard external junction blocks.

Grounding Requirements: Demands robust mechanical seating onto the master controller backplane grounding clips to establish low-resistance grounding paths necessary for full electromagnetic compatibility (EMC) compliance.

ICS Triplex T8153 Product Features

TMR Architecture Complement: Functions natively alongside Triple Modular Redundant controller modules, preserving fault-tolerant safety system pathways.

Multi-Protocol Capabilities: Efficiently bridges data communication pipelines utilizing Modbus Master/Slave arrangements, peer-to-peer routines, and supervisory host communication layers.

High-Accuracy Time Synchronization: Supports advanced synchronization infrastructures (including IRIG-B signals) to provide sub-millisecond event sequence logging accuracy across the control system.

Electrostatic Discharge (ESD) Shielding: Features comprehensive structural earth-bonding pathways directly connected into the chassis frame to minimize noise interference and ground loops.

•
