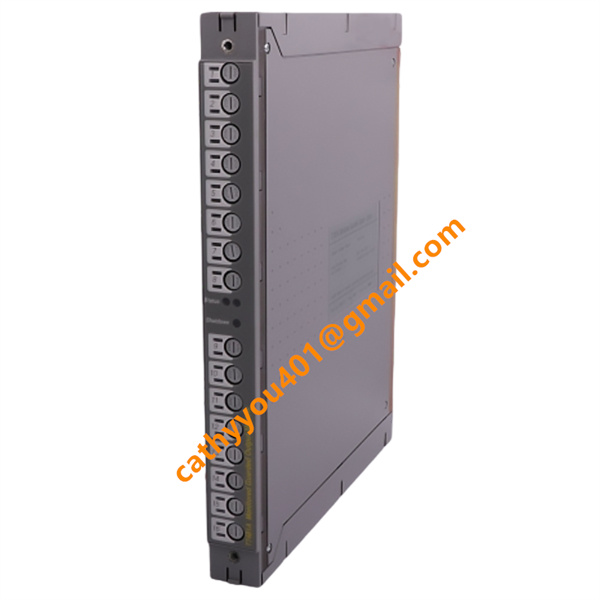

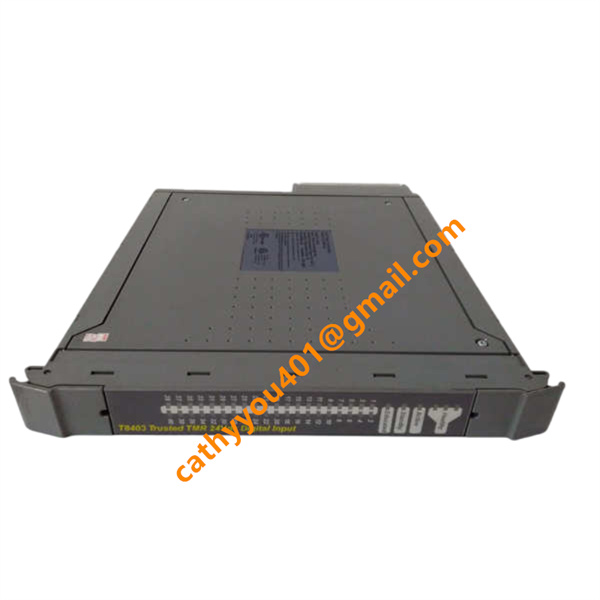

ICS Triplex T8403 DCS digital input module

• Brand
  ICS Triplex
• Model
  T8403
• Product Name
  Trusted TMR 24VDC Digital Input Module
• Country of Origin
  United States
• HS Code
  85371011
• Dimensions
  266mm×31mm× 303mm
• Weight
  1.12kg
• Operating Temperature
  -40°C to +70°C
• Storage Temperature
  -40°C to +85°C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

ICS Triplex T8403 Product Introduction and Technical Parameters

Electrical Parameters

The T8403 is powered by standard industrial 24VDC power supply with a wide adaptive voltage range of 10VDC to 30VDC, tolerating common on-site power supply fluctuations. The rated operating voltage is 24VDC, with stable low power consumption during continuous operation. Each channel features independent over-voltage and reverse polarity protection, effectively avoiding module damage caused by power supply anomalies. It supports standard digital signal input sampling with fast response speed, and is equipped with 2500Vrms high isolation voltage between field circuits and internal system circuits, which thoroughly isolates external electrical interference and surge impact to ensure signal acquisition stability.

Core Product Characteristics

Firstly, it features full TMR fault-tolerant architecture. Adopting triple modular redundancy and 2oo3 voting logic for all channels, it completely eliminates single-point failure risks and ensures ultra-high operational reliability for safety-critical systems.

Secondly, it achieves high-density and high-precision signal acquisition. With 40-channel integrated digital input design and millisecond-level response speed, it efficiently collects massive field switching signals while guaranteeing signal accuracy and real-time performance.

Thirdly, it integrates comprehensive intelligent diagnosis mechanisms. Built-in multi-dimensional self-diagnosis functions and visual LED status indication support rapid fault detection and location, greatly improving system maintainability.

Fourthly, it supports safe and convenient hot-swap operation. The online replacement function avoids system shutdown and production interruption during module maintenance and replacement.

Product Advantages

The ICS Triplex T8403 has remarkable application advantages in industrial safety instrumented systems. Its professional SIL3-certified safety performance meets international high-risk industry safety standards, effectively reducing system safety risks. The full TMR fault-tolerant design ensures continuous and stable signal acquisition even under single-channel or single-module faults, greatly improving production safety and system continuity. The high-density multi-channel design optimizes cabinet space and reduces overall system construction cost. Equipped with high isolation protection, strong anti-interference ability and perfect self-diagnosis functions, it adapts to complex and harsh industrial environments. With stable field operation performance and convenient maintenance features, it serves as a reliable core digital input module for petrochemical, power and offshore safety control systems.

Interface and Functional Configuration

This high-density digital input module is equipped with 40 independent TMR digital input channels, realizing large-capacity field switching signal collection. It supports 1ms high-precision SOE event recording, enabling accurate time stamping and tracing of field signal changes and fault events. The module adopts Inter-Module Bus (IMB) communication architecture for high-speed data interaction with the Trusted main controller. It integrates comprehensive self-diagnosis functions including communication detection, watchdog monitoring and channel status self-checking, and feeds back operating status and fault information through on-board LED indicators. It supports online hot-swap replacement, realizing maintenance without system shutdown.
