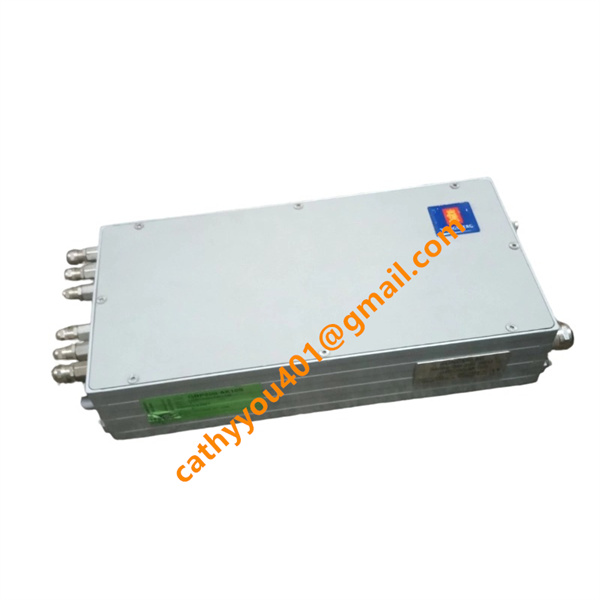

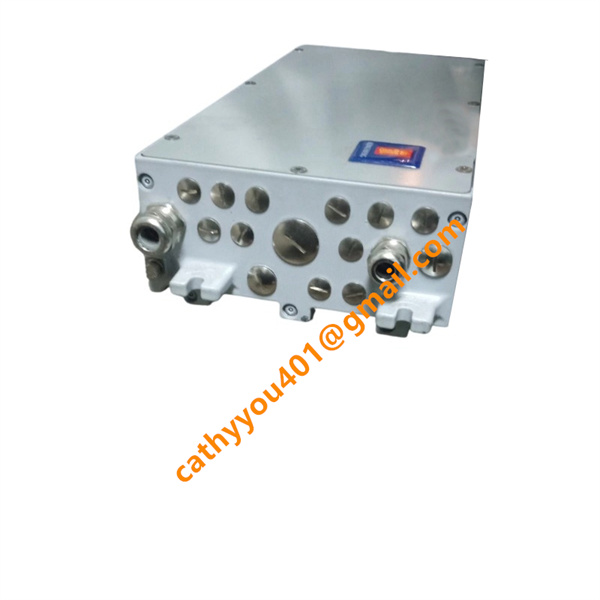

KONGSBERG GBP200/BK10SX DCS Signal Processing Unit

• Brand
  KONGSBERG
• Model
  GBP200/BK10SX
• Product Name
  SENTRY SPU Signal Processing Unit
• Country of Origin
  Norway
• HS Code
  8543709090
• Dimensions
  265mm×162mm×95mm
• Weight
  2.75 kg
• Operating Temperature
  -40 ℃ ~ +70 ℃
• Storage Temperature
  -45 ℃ ~ +85 ℃
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

KONGSBERG GBP200/BK10SX Complete Product Specification

Core Technical Parameters

1. Rated Working Voltage: 18 VDC ~ 32 VDC (nominal 24 VDC marine power supply)

2. Maximum Total Power Consumption: 17 W

3. Typical Operating Current: 0.71 A (@24 VDC rated voltage)

4. RF Communication Parameter: Working frequency 856 MHz, maximum RF output power 100 mW, average RF power 140 μW

5. Channel Configuration: BK10SX = 10 temperature monitoring channels

6. Protection Class: IP54 (standard sealed enclosure)

7. Explosion-proof Certification: ATEX Zone 2, IEC 60079-0 / IEC 60079-1 / IEC 60079-11 compliant

8. External Communication Interface: RS485 / Modbus RTU for upper system data transmission

9. Relative Humidity: 5% - 95% non-condensing

KONGSBERG GBP200/BK10SX Standard Wiring & Connection Method

1. Power Wiring

Positive Terminal: Connect stabilized 24 VDC marine insulated power supply positive pole;

Negative Terminal: Connect power supply negative pole and cabinet system protective ground simultaneously;

Wiring requirement: Use shielded DC cables, power lines and signal lines must be routed separately to avoid electromagnetic interference.

2. RF Antenna Wiring

Connect dedicated Kongsberg coaxial antenna cable to the SPU RF interface, match with GBS fixed receiving antenna;

Antenna cables shall not be bundled with high-current power cables, and cable bending radius shall comply with factory specifications.

3. Modbus Communication Wiring

RS485 A/B terminals connect to upper DCS/ship automation system communication bus;

Use twisted-pair shielded communication cables, single-point grounding of shielding layer at the control cabinet end only.

4. Wiring Precautions

All wiring operations must be carried out under complete power-off status of the equipment;

Do not modify the internal wiring and RF components of the GBP200/BK10SX at will to avoid invalidating explosion-proof certification;

After wiring, perform channel address configuration and communication test via SENTRY dedicated debugging software before formal operation;

Ensure grounding resistance ≤4 Ω to guarantee stable RF signal reception.

KONGSBERG GBP200/BK10SX Product Advantages

1. Passive sensor matching design: No built-in batteries in field GBW sensors, no slip rings required, ultra-low maintenance cost and long service life;

2. Professional marine explosion-proof certification, safe deployment in Zone 2 hazardous areas of engine rooms and offshore facilities;

3. High-precision real-time temperature acquisition, extremely low false alarm rate, effectively preventing diesel engine bearing burnout accidents;

4. Independent 10-channel design, flexible configuration to adapt to different specifications of marine main engines;

5. Sealed aluminum alloy casing, strong vibration resistance, corrosion resistance and oil mist resistance, suitable for harsh marine working environments;

6. Standard Modbus RTU communication protocol, seamless docking with ship integrated automation systems and DCS platforms;

7. Global Kongsberg maritime after-sales support, complete spare parts supply and classification society certification documents;

8. Compact rack-mounted structure, easy cabinet installation and wiring layout, supporting online parameter debugging without shutdown.

•
