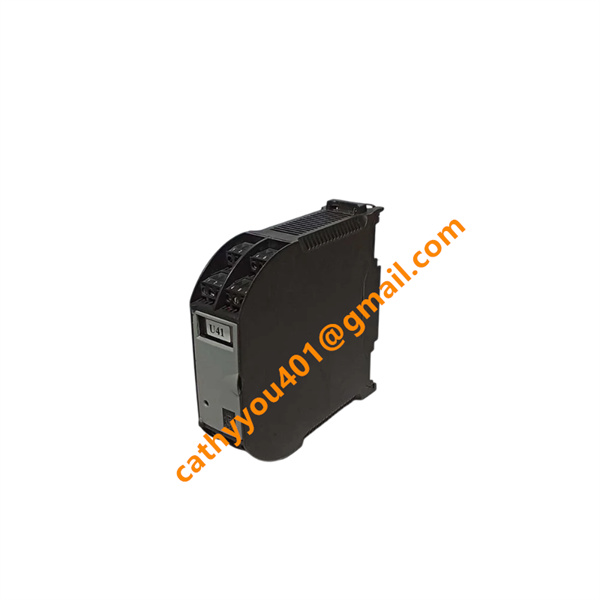

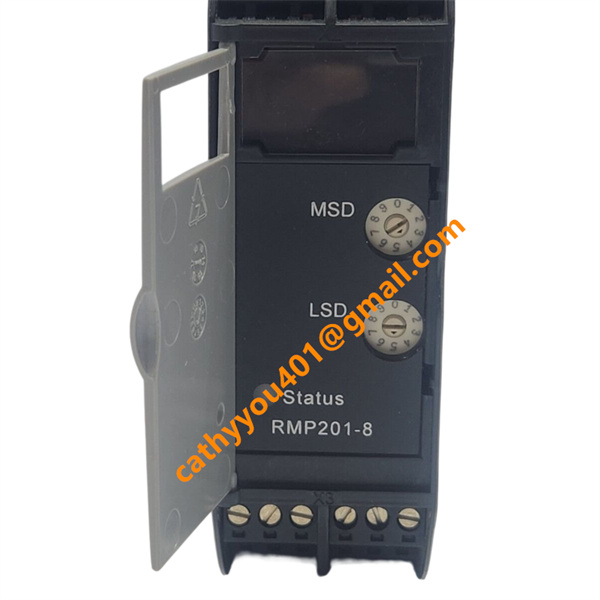

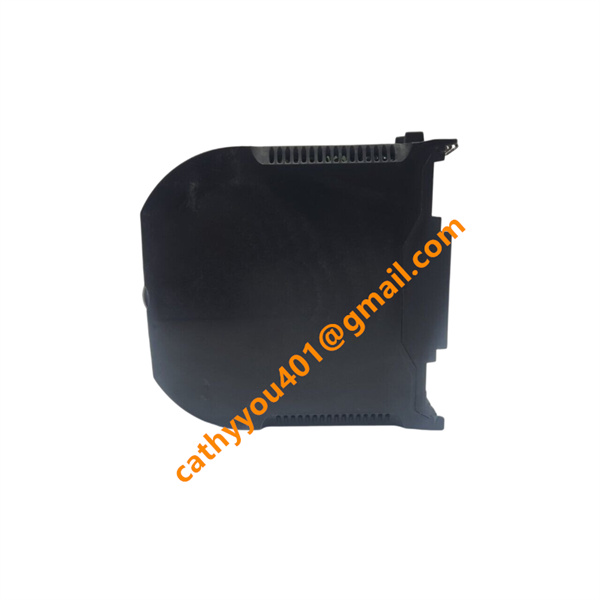

RMP201-8/324400 KONGSBERG I/O module

• Brand
  KONGSBERG
• Model
  RMP201-8 324400
• Product Name
  Remote Multi-Purpose Analog Input Module
• Country of Origin
  Norway
• HS Code
  85389000
• Dimensions
  140mm×140mm×55.25mm
• Weight
  2.0 kg
• Operating Temperature
  -40°C to +70°C
• Storage Temperature
  -55°C to +85°C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

KONGSBERG RMP201-8 (324400) Product Introduction and Technical Parameters

Input and Output Parameters

Power Input Specification: Rated working voltage 24V DC, wide adaptive voltage range of 10–36V DC, supporting redundant power supply configuration to avoid power failure interruption

Signal Input Configuration: Equipped with 8-channel differential/single-ended universal analog input channels, supporting multiple signal types including 4–20mA current signal, 0–10V DC voltage signal, and Pt100/Ni100 RTD temperature sensor signals

Communication Output: Adopts dedicated KONGSBERG fieldbus based on CAN/RS-485 physical layer, realizing high-speed data transmission and real-time communication with the central RPU controller

Isolation Performance: Built-in high-strength isolation design, achieving ≥500V isolation between channels and between field terminals and bus terminals, effectively preventing signal crosstalk and external interference

Working Frequency: Stable working frequency up to 200Hz, ensuring high-frequency real-time data sampling and response

Main Product Functions

It realizes multi-channel analog signal synchronous acquisition, covering temperature, pressure, liquid level, flow and other field sensor signal collection required by marine and offshore equipment. It supports automatic signal identification and adaptive matching for different input signal types, realizing unattended high-precision data sampling and conversion. It provides real-time data upload and transmission to the central automation system for equipment monitoring, process control and data recording. Built-in comprehensive self-diagnosis function can automatically detect module power failure, communication failure and signal loop abnormality, and feed back fault information in real time to trigger system alarm. It supports system redundant configuration and cooperative operation with K-Chief 500/600 series systems to complete unattended machinery space monitoring and equipment automatic alarm protection. It is equipped with screw clamp terminals for stable wiring, supporting long-term stable signal connection and convenient later maintenance and wiring adjustment.

Product Advantages

Firstly, it delivers ultra-high operational reliability. Adopting professional marine-grade design and strict industrial certification, it can stably operate in high vibration, high humidity and salt fog harsh environments, fully meeting ship and offshore engineering safety operation standards. Secondly, it features powerful and flexible signal compatibility. The 8 universal analog channels support multiple mainstream signal types, covering most field monitoring signal demands of marine automation systems, reducing equipment matching costs. Thirdly, it has excellent anti-interference performance. The multi-channel isolation design effectively resists on-site electromagnetic interference, ensuring accurate and stable transmission of monitoring data and avoiding system misjudgment. Fourthly, the integration and scalability are outstanding. As a core component of KONGSBERG classic automation system, it has strong system compatibility, supporting modular expansion and flexible configuration according to project demands. Fifthly, it realizes intelligent fault diagnosis and efficient maintenance. Visual LED status indication and automatic fault detection functions greatly improve equipment troubleshooting efficiency and reduce system downtime. Sixthly, it supports redundant power supply access, effectively avoiding single-point power failure risks and improving the overall stability of the automation system. In addition, it features compact structure, lightweight and easy installation, saving cabinet space and reducing on-site construction difficulty, with long service life and low failure rate in long-term industrial and marine application scenarios.

Product Core Characteristics

This module features high-precision signal acquisition with built-in high-resolution ADC chip, realizing accurate conversion and collection of various analog field signals with low measurement error and high data consistency. It adopts marine-grade ruggedized circuit design and anti-corrosion structural materials, with excellent vibration resistance, EMI anti-interference ability and salt fog corrosion resistance, adapting to long-term harsh marine industrial operation. The independent multi-channel isolation design completely eliminates mutual interference between different signal loops, ensuring stable and reliable signal transmission. Equipped with intuitive LED status indicators for power supply, bus communication and module fault status, it supports real-time operating status visualization. The standardized DIN rail mounting structure enables quick installation and disassembly, and the modular design supports flexible system expansion and configuration matching. It complies with international marine certification standards and has excellent environmental adaptability and operational stability.
