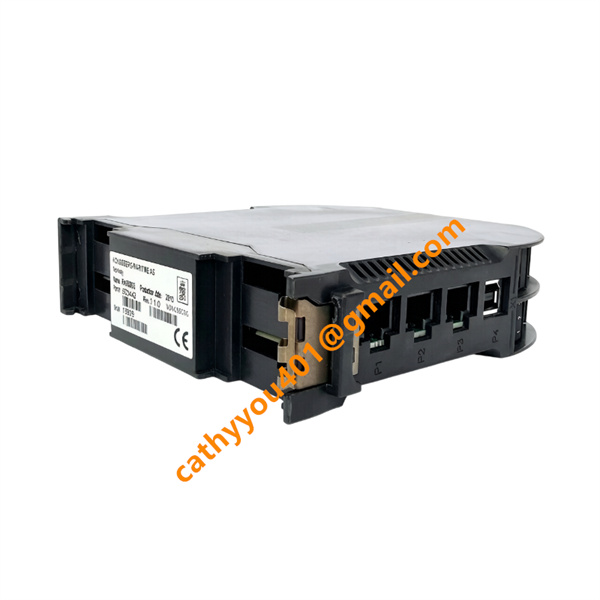

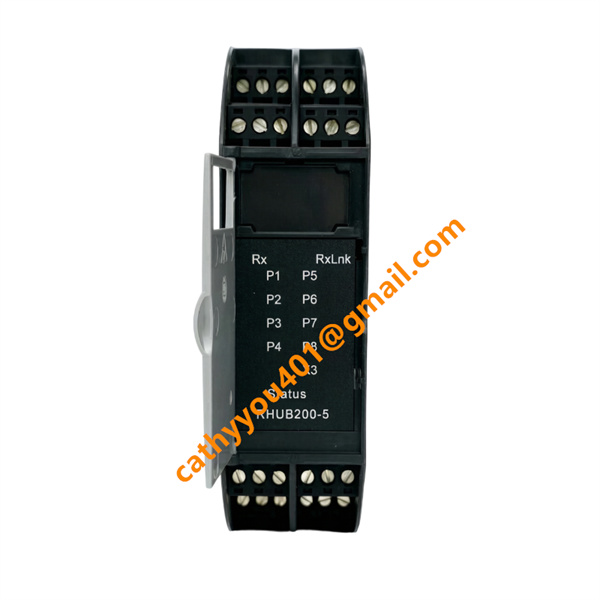

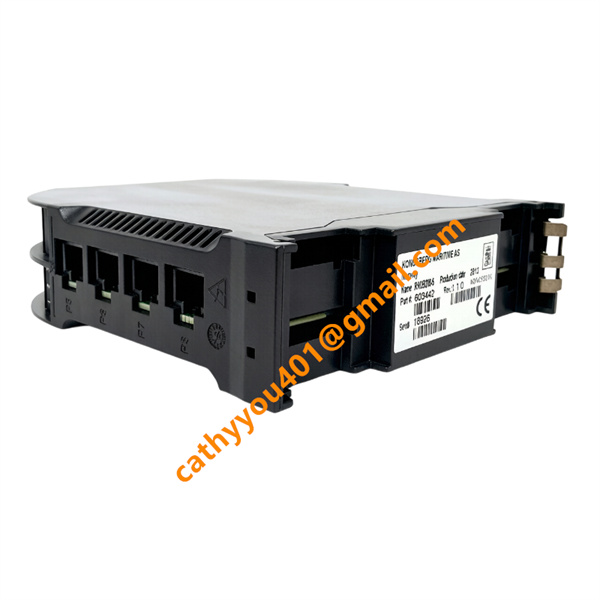

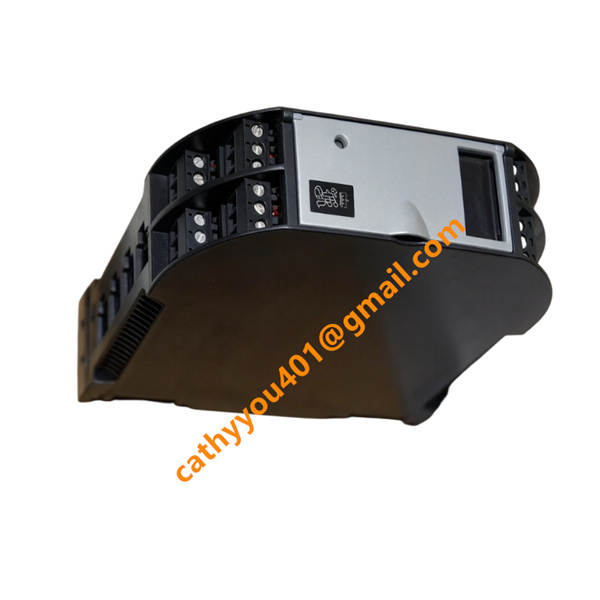

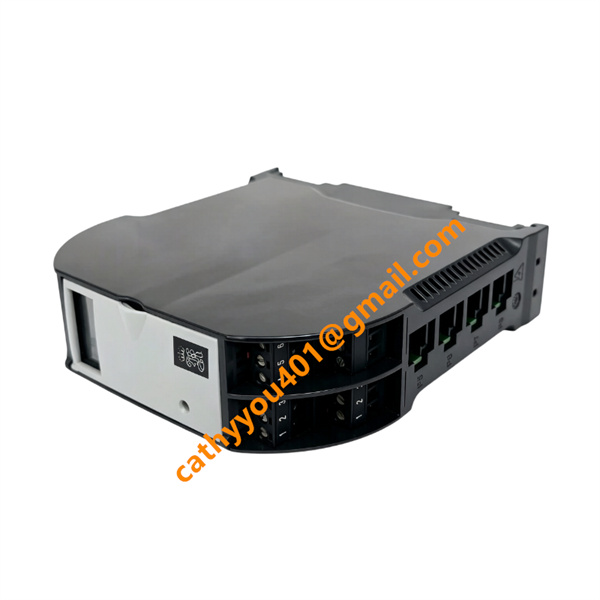

RHUB200-5 KONGSBERG DCS processor module

• Brand
  KONGSBERG
• Model
  RHUB200-5
• Product Name
  5-Channel RBUS Hub / PLC Processor Communication Module
• Country of Origin
  Norway
• HS Code
  8517623990
• Dimensions
  400mm×160mm×100mm
• Weight
  1.3 kg
• Operating Temperature
  -80℃ to +160℃
• Storage Temperature
  -67℃ to +120℃
• Power Supply
  24 V DC
• Warranty
  12 month
• Product Status
  New and original

KONGSBERG RHUB200-5 Product Introduction & Technical Specification

Electrical Input & Output Parameter

1.Power Input: 24 V DC

2.Rated Power Consumption: Less than 30 W

3.Communication Input Interfaces: RBUS bus, Ethernet, RS232, RS485, PROFIBUS DP

4.Communication Output Interfaces: 5-channel RBUS expansion ports for field module connection

5.Max Expanded I/O Points: Up to 128 digital & analog I/O points

6.Supported Communication Protocols: RBUS native protocol, Modbus, PROFIBUS, TCP/IP Ethernet protocol

7.Data Transmission Rate: Max 1Gbps (Ethernet), real-time bus transmission for RBUS channel

Core Product Functions

1. Realize multi-path RBUS bus signal concentration, distribution and data forwarding

2. Complete communication bridge between main control PLC and field remote I/O units

3. Collect field sensor analog/digital signals and transmit data to central control unit

4. Distribute control commands issued by main controller to on-site execution modules

5. Real-time communication fault diagnosis, channel status monitoring and alarm feedback

6. Serve as remote centralized unit to build distributed DCS control network matching Kongsberg RMP201-8, RCU501 modules

Product Advantages

1. High operational stability, long service life, low failure rate for 24/7 continuous operation

2. Multi-protocol compatible, excellent system compatibility with full series Kongsberg control hardware

3.Compact integrated structure effectively reduces wiring complexity and system cabinet occupation space

4.Flexible expandability, can expand I/O capacity and communication channels according to project demand

5.Mature legacy system matching capability, ideal spare part for old Kongsberg marine automation equipment overhaul

6.Marine-level anti-vibration, anti-salt fog performance, far superior to ordinary industrial modules

Typical Application Cases

1. Marine Dynamic Positioning (DP) Control System: Core communication hub for offshore supply vessels, drilling rig DP position maintenance control

2. Vessel Integrated Automation System: Engine room monitoring, power management, pump & valve sequential control for merchant ships, engineering ships

3. Offshore Oil & Gas Platform: Subsea equipment signal acquisition, platform process monitoring and safety interlock control

4. Onshore Petrochemical & Energy Industry: Distributed process control, real-time data transmission for chemical plant and power station automation systems

5. Marine Survey & Research Vessel: Environmental monitoring equipment data centralized transmission and equipment coordinated control

Product Characteristics

1. 5-channel independent RBUS channel design for multi-branch device centralized connection

2.Rugged metal housing, IP67 protection grade, dustproof, moisture-proof and corrosion-resistant

3. Wide working temperature range: -20°C ~ +70°C; storage temperature: -40°C ~ +70°C

4. Strong EMC anti-electromagnetic interference performance, adapts to marine vibration & harsh industrial environment

5. Standard DIN rail / wall-mounted dual installation mode

6. Modular structure supporting hot-plugging for easy maintenance and replacement

7. Passed DNV marine industry certification for marine critical equipment application
