RSER200-4 KONGSBERG DCS input module

• Brand
  KONGSBERG
• Model
  RSER200-4
• Product Name
  4-Channel Serial Line Isolated Communication Interface Module
• Country of Origin
  Norway
• HS Code
  8538900000
• Dimensions
  126mm×64mm×32mm
• Weight
  0.16 kg
• Operating Temperature
  -10℃ to +150℃
• Storage Temperature
  -20℃ to +120℃
• Power Supply
  24 V DC
• Warranty
  12 month
• Product Status
  New and original

KONGSBERG RSER200-4 Product Introduction & Technical Specification

Electrical Input & Output Parameter

1.Power Input: 24 V DC, powered via RBUS bus interface

2.Rated Current Consumption: 160 mA

3.Link Communication Input Interfaces: 3-channel RJ45 RBUS ports (connect to max 3 RCU controllers for redundant control)

4.Field Communication Output Interfaces: 4-channel independent serial terminals

5.Configurable Serial Protocols per Channel: RS232, RS422, RS485, NMEA 0183

6.Service Interface: USB port for parameter configuration, diagnosis and debugging

7.Supported System Bus: RBUS bus protocol, Modbus RTU

8.Max Communication Baud Rate: Up to 115200 bps per serial channel

9.Response Delay: Less than 10ms

Core Product Functions

1. Convert serial field device signals into RBUS bus data for Kongsberg RCU main controllers

2.Forward control instructions issued by master controller to on-site serial-type sensors and instruments

3.Collect and upload navigation equipment, flow, pressure, temperature serial measurement data

4. Realize redundant communication connection with multiple RCU controllers to improve system reliability

5. Complete channel communication fault detection, abnormal alarm and status feedback

6. Serve as serial signal expansion unit to match RHUB200-5 hub and RCU501 control modules for complete distributed control network construction

Product Advantages

1.Channel isolation design effectively eliminates ground loop interference, improving signal transmission stability

2. Multi-serial protocol compatibility, widely matching marine navigation sensors and field serial instruments

3. Compact slim structure saves cabinet installation space, flexible for cabinet layout

4. Hot-swap design shortens maintenance downtime for vessel and offshore system overhaul

5.Perfect compatibility with full Kongsberg K-Tronics control series modules, no secondary programming required

6. Long-term stable operation for 24/7 marine continuous working, ultra-low failure rate

7.Mature legacy system matching capacity, ideal replacement spare part for old Kongsberg marine automation equipment

Typical Application Cases

1.Marine Dynamic Positioning (DP) System: Serial signal acquisition for position reference sensors, wind sensors and thruster feedback devices

2. Vessel Integrated Engine Room Automation: Temperature, pressure, liquid level serial sensor data centralized transmission and monitoring

3.Merchant & Engineering Vessel Navigation Control: NMEA0183 navigation instrument data integration for bridge monitoring system

4.Offshore Oil & Gas Platform: Serial-type process instrument signal collection for platform safety interlock and process monitoring

5.Marine Research & Survey Vessel: Environmental monitoring serial equipment data communication and equipment coordinated control

Product Characteristics

1.Four fully independent serial channels with individual galvanic isolation, preventing cross-channel signal interference

2. Each field channel software-configurable for multiple serial communication standards

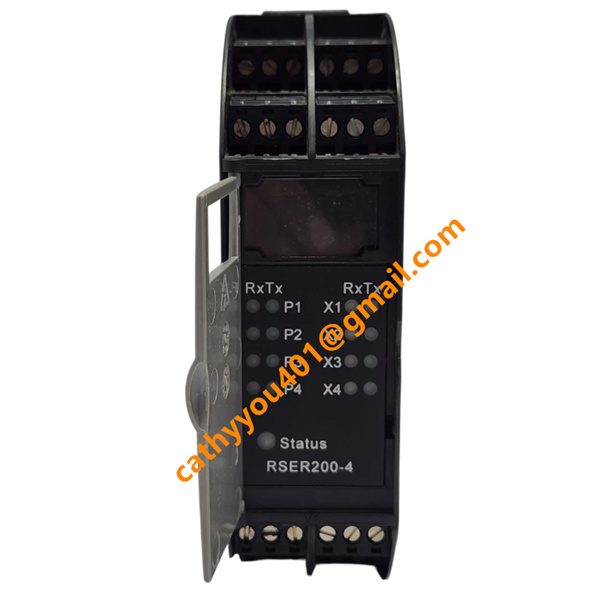

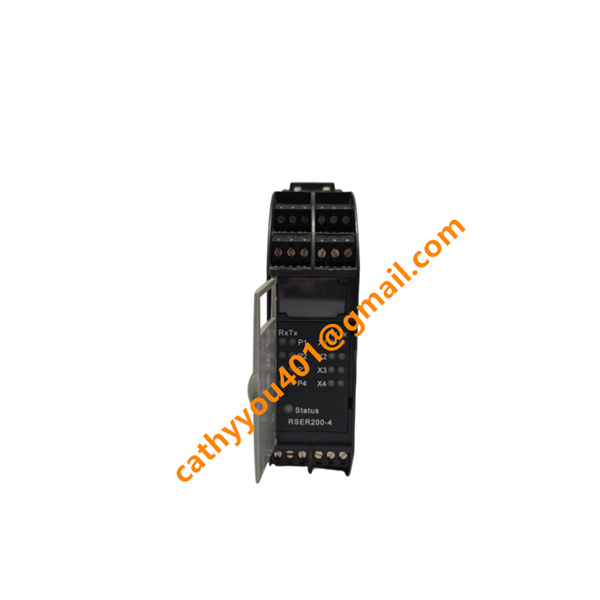

3. Front panel LED indicators for module running status, fault alarm and each channel TX/RX data activity

4. Wide working temperature range: -20°C ~ +70°C; storage temperature: -40°C ~ +85°C

5.High-level EMC anti-interference design, anti-vibration, anti-salt fog for marine harsh environment

6. Standard DIN rail modular installation, support hot-plug replacement during system operation

7. Passed IEC 60945 marine standard, IACS E10 and CE certification for marine critical equipment

8. Full internal voltage real-time monitoring with fault self-diagnosis function
