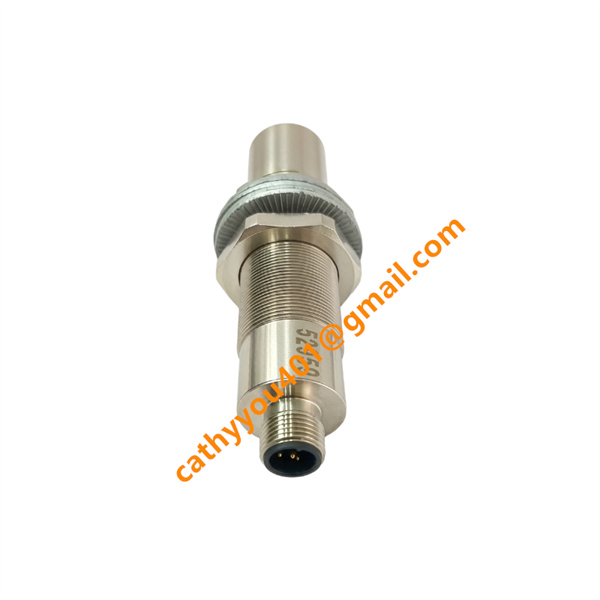

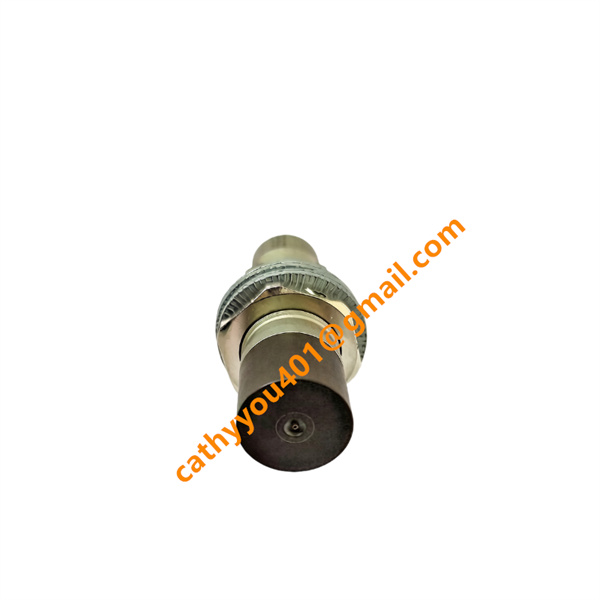

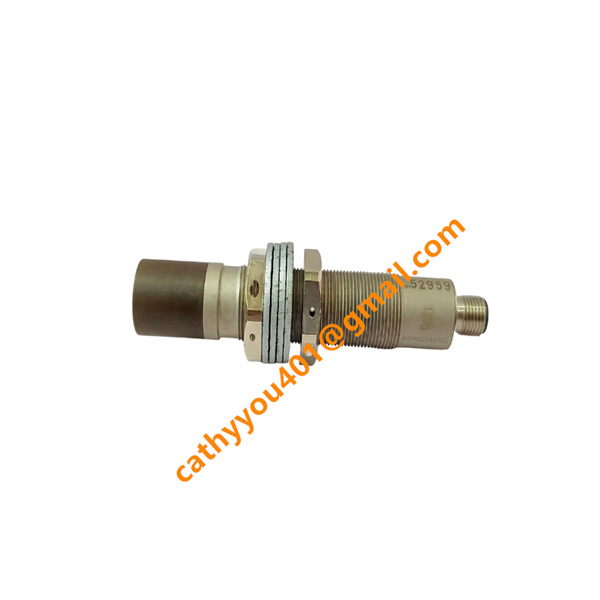

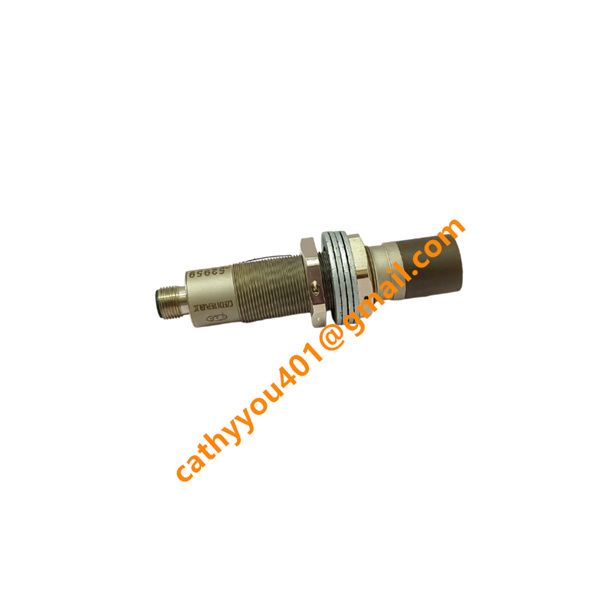

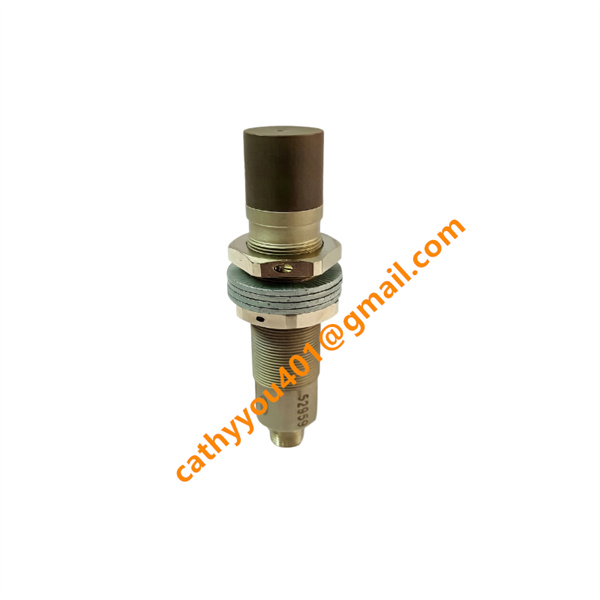

PS-11 KONGSBERG DCS pressure transmitter sensor

• Brand
  KONGSBERG
• Model
  PS-11
• Product Name
  Compact Pressure Transmitter PS-11
• Country of Origin
  Norway
• HS Code
  8543709090
• Dimensions
  112mm (Length)×28mm (Diameter)
• Weight
  0.145 kg
• Operating Temperature
  -15℃ to +120℃
• Storage Temperature
  -25℃ to +150℃
• Power Supply
  10 ~ 30 V DC
• Warranty
  12 month
• Product Status
  New and original

KONGSBERG PS-11 Product Introduction & Technical Specification

Electrical Input & Output Parameter

1.Power Input: 10 ~ 30 V DC two-wire power supply

2.Rated Power Consumption: ≤ 12 mA

3.Measuring Pressure Range: 0~0.1 bar up to 0~600 bar (customizable range)

4.Signal Output: 4~20mA two-wire analog standard signal

5.Accuracy: ≤ ±0.5% FS full scale precision

6.Process Connection Thread: G1/4", 1/4"NPT optional

7.Medium Temperature Range: -40°C ~ +125°C

8.Ambient Working Temperature: -40°C ~ +85°C

9.Electrical Connection: DIN plug aviation connector

Core Product Functions

1.Real-time continuous pressure measurement for hydraulic oil, cooling water, fuel gas and compressed air medium

2.Convert pressure physical value into standard 4-20mA analog signal and transmit to Kongsberg RCU main control unit

3.Provide pressure data for real-time monitoring, trend recording and abnormal threshold judgment of upper automation system

4.Support pressure abnormal alarm trigger for equipment overpressure/underpressure safety interlock protection

5.Match Kongsberg RHUB200, RSER200 series modules to complete distributed pressure signal acquisition network

6.Long-term stable field pressure sampling for vessel power system, auxiliary machinery and pipeline monitoring

Product Advantages

1.Perfect matching compatibility with full Kongsberg marine automation control system, zero signal matching error

2.High measurement repeatability, long-term drift-free operation for 24-hour marine continuous working

3.Stainless steel rugged housing adapts to marine corrosive, vibrating harsh working environment

4.Two-wire system simplifies field wiring, reduces installation cost and failure points

5.Wide customizable pressure ranges, flexible for multiple medium pressure measurement scenarios

6.Mature standard spare part for old marine vessel automation system sensor overhaul and replacement

7. Compact size suitable for narrow pipeline installation space in engine room

Typical Application Cases

1.Merchant Ship Engine Room: Lubricating oil, cooling water, fuel pipeline pressure monitoring and alarm control

2.Offshore Oil & Gas Platform: Hydraulic unit, process gas pipeline pressure online monitoring

3.Marine Dynamic Positioning DP System: Thruster hydraulic pressure real-time feedback and linkage control

4.Engineering Vessel & Tugboat: Deck hydraulic equipment pressure monitoring and overload protection

5.Ship Power Management System: Compressed air system pressure monitoring and automatic adjustment

6.Marine Research Vessel: On-board process pipeline pressure acquisition and equipment safety monitoring

Product Characteristics

1.AISI316L stainless steel wetted part, anti-corrosion, anti-salt fog for marine medium measurement

2. Integrated piezoresistive sensing element, strong anti-electromagnetic interference capability

3. IP67 overall protection grade, dustproof, splash-proof and waterproof design

4.Wide temperature working range, stable measurement under temperature fluctuation condition

5. High mechanical anti-vibration performance, conforming to marine DNV vibration standard

6. Compact cylindrical structure, easy pipeline threaded installation and layout

7. Complete internal surge, overvoltage and reverse polarity protection circuit

8. Passed DNV marine type approval, CE industrial certification
